210 (31A-2M5A711) - Troy-Bilt Squall 21" Snow Thrower (2010) Shroud, Chute, Handle & Auger Housing Parts Diagram

Squall 21" Snow Thrower

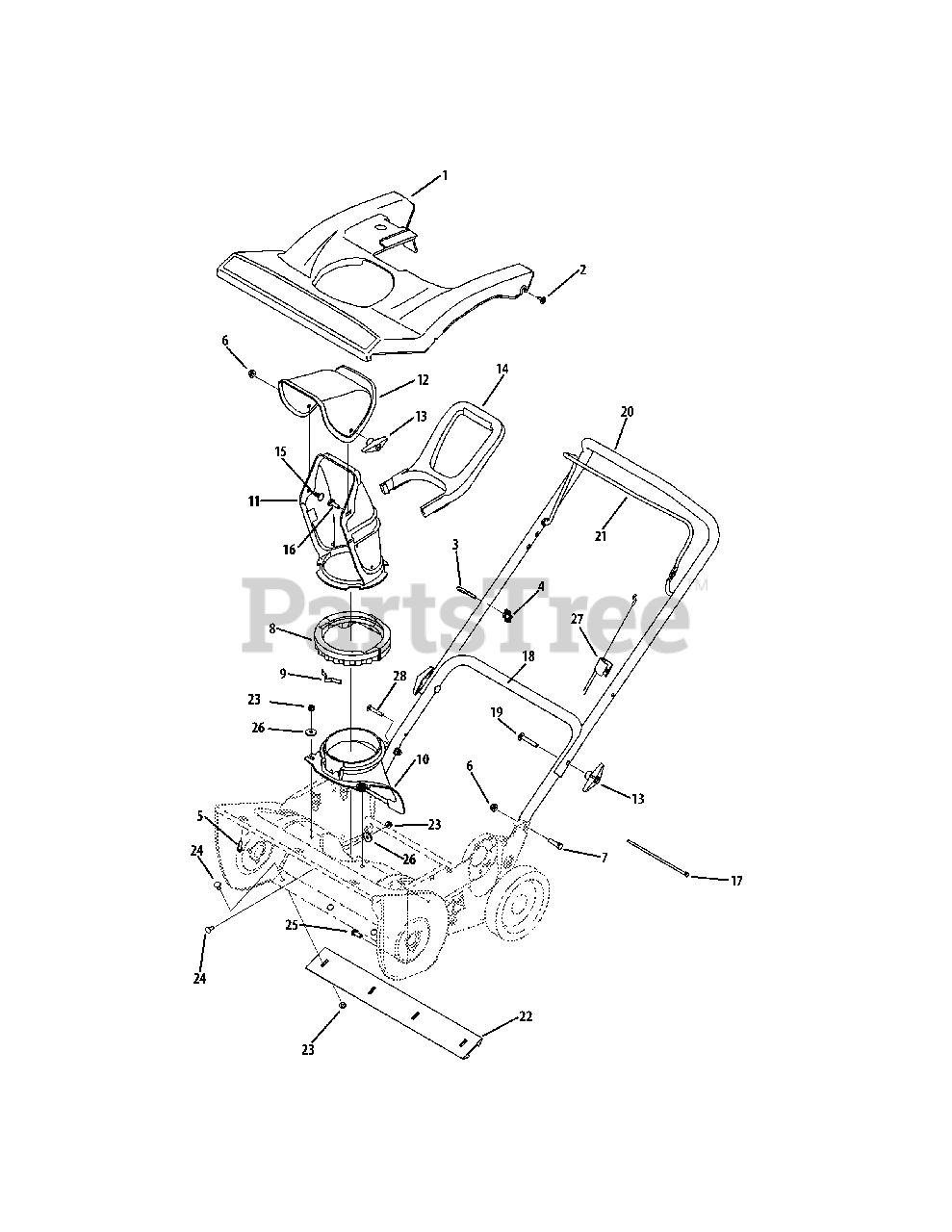

Shroud, Chute, Handle & Auger Housing Parts Diagram

  • Title

1

Troy-Bilt 731-06551

Shroud

Note: 31AS2P5C Models

$

$

Not available

1

Troy-Bilt 684-04236A

Shroud
(Superseded to 753-06906)

Note: 31A-2M5A Models

$105.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04669

Hex Washer Screw, 10-16 x .625

$3.99

$

In Stock, Qty 20+

0

3

Troy-Bilt 710-1205

Eye Bolt, 1/4-20

$4.49

$

In Stock, Qty 12

0

4

Troy-Bilt 720-0279

Knob Handle

$4.99

$

In Stock, Qty 15

0

5

Troy-Bilt 710-0895

Hex Washer Screw, 1/4-15 x .750

$6.99

$

In Stock, Qty 20+

0

6

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$4.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 710-1090

Hex Screw, 5/16-18 x 1.25

$3.99

$

Usually ships in 3-6 days

0

8

Troy-Bilt 931-04353

Lower Chute Ring

$20.99

$

In Stock, only 2 left!

0

9

Troy-Bilt 932-04111

Chute Adjustment Spring

$4.99

$

In Stock, Qty 16

0

10

Troy-Bilt 931-04886

Chute Adapter

$20.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 931-04127

Lower Chute, 5" Diameter

$35.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 731-04426A

Upper Chute
(Superseded to 731-04426C)

$20.99

$

In Stock, only 2 left!

0

13

Troy-Bilt 720-04072A

Wing Knob

$7.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 731-04388A

Chute Handle

$28.99

$

In Stock, only 2 left!

0

15

Troy-Bilt 710-0451

Carriage Bolt, 5/16-18 x .750

$4.49

$

In Stock, Qty 20+

0

16

Troy-Bilt 710-04071

Carriage Bolt, 5/16-18 x 1.00

$4.99

$

In Stock, only 2 left!

0

17

Troy-Bilt 725-0157

Cable Tie, 3/16 x .05 x 7.4

$3.99

$

In Stock, Qty 20+

0

18

Troy-Bilt 749-04114B-0638

Lower Handle

$34.99

$

Usually ships in 3-6 days

0

19

Troy-Bilt 710-04532

Carriage Screw, 5/16-18 x 2.00

$6.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 749-04106A-0638

Gullwing Handle
(Superseded to 749-04106A-0637)

$54.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 747-04159A-0638

Gullwing Control Bail
(Superseded to 747-04159A-0637)

$38.99

$

In Stock, only 2 left!

0

22

Troy-Bilt 731-1033

Shave Plate, 21"

$50.99

$

In Stock, only 2 left!

0

23

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$4.49

$

In Stock, Qty 20+

0

24

Troy-Bilt 710-0134

Carriage Screw, 1/4-20 x .62

$4.49

$

In Stock, Qty 12

0

25

Troy-Bilt 710-3008

Hex Screw, 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

26

Troy-Bilt 936-0176

Flat Washer, .265 x .938 x .120
(Superseded to 736-0176)

$4.99

$

In Stock, Qty 20+

0

27

Troy-Bilt 746-04237

Clutch Cable
(Superseded to 946-04237)

$25.99

$

In Stock, only 2 left!

0

28

Troy-Bilt 710-1882

Hex Screw, 5/16-18 x 1.50

Note: 31A-2M5A Models

$4.49

$

Usually ships in 3-6 days

0

Troy-Bilt 925-04031A

Switch, Ignition (Incl. Keys)
(Superseded to 951-10637)

Note: Not shown

$15.99

$

In Stock, only 2 left!

0

Troy-Bilt 731-05632

Ignition Key Only
(Superseded to 951-10630)

Note: Not shown

$6.99

$

In Stock, Qty 6

0
