210 (31A-2M5E711) - Troy-Bilt Squall 21" Snow Thrower (2011) Shroud, Chute & Handle Squall 210 Parts Diagram

Squall 21" Snow Thrower

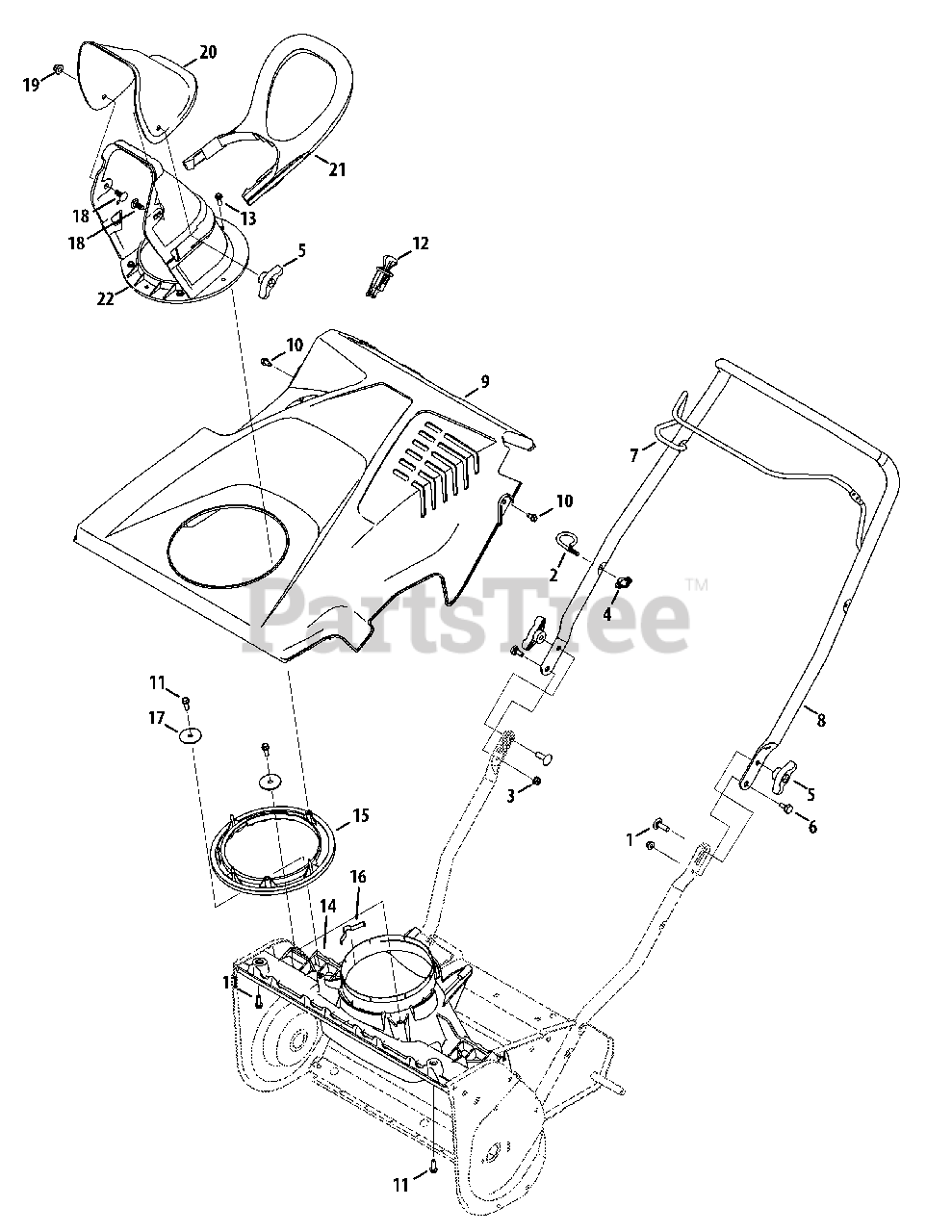

Shroud, Chute & Handle Squall 210 Parts Diagram

  • Title

1

Troy-Bilt 710-04998

Carriage Bolt, 5/16-18 x 1.00

$5.49

$

In Stock, Qty 20+

0

2

Troy-Bilt 710-05348

Eye Bolt, 1/4-20

$3.49

$

In Stock, only 1 left!

0

3

Troy-Bilt 712-04064

Flange Lock Nut, 1/4-20

$3.99

$

In Stock, Qty 20+

0

4

Troy-Bilt 720-0279

Knob Handle

$4.49

$

In Stock, Qty 20+

0

5

Troy-Bilt 720-04122

Wing Knob

$6.49

$

In Stock, Qty 20+

0

6

Troy-Bilt 738-04419A

Shoulder Screw, .375 x .148 x 1/4-20

$3.99

$

In Stock, Qty 20+

0

7

Troy-Bilt 747-05327B

Auger Bail

Variations

Troy-Bilt 747-05327B-0637

Auger Bail - POWDER BLACK (0637)

$15.99

$

In Stock, only 1 left!

0

$15.99

$

In Stock, only 1 left!

0

8

Troy-Bilt 749-04703B

Upper Handle

Variations

Troy-Bilt 749-04703B-0637

Upper Handle - POWDER BLACK (0637)

$43.99

$

Usually ships in 3-6 days

0

Troy-Bilt 749-04703B-4062

HANDLE-UPPER - COOL GRAY (4062)

$40.99

$

Usually ships in 3-6 days

0

$35.99

$

Usually ships in 3-6 days

0

9

Troy-Bilt 753-06903

Top Cover
(Superseded to 753-06901C)

$60.99

$

In Stock, only 1 left!

0

10

Troy-Bilt 710-0599

Hex Screw, 1/4-14 x .500

$3.99

$

In Stock, Qty 20+

0

11

Troy-Bilt 710-0895

Screw, Hi-Lo:1/4-15, 0.75

$5.99

$

In Stock, Qty 20+

0

12

Troy-Bilt 925-04031A

Ignition Switch Assembly
(Superseded to 951-10637)

$13.99

$

In Stock, only 1 left!

0

12

Troy-Bilt 951-10630

Key

Note: Not shown

$6.49

$

In Stock, Qty 18

0

13

Troy-Bilt 710-05108

Hex Washer Screw, 1/4 x .750

$3.49

$

In Stock, Qty 20+

0

14

Troy-Bilt 931-07626A

Chute Adapter
(Superseded to 931-07626B)

$39.99

$

Usually ships in 3-6 days

0

15

Troy-Bilt 731-08274

Chute Ring

$12.99

$

In Stock, only 1 left!

0

16

Troy-Bilt 932-04111

Chute Adjustment Spring

$4.49

$

In Stock, only 2 left!

0

17

Troy-Bilt 736-04576

Flat Washer, .28 x 1.5 x .066

$3.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 710-0451

Carriage Bolt, 5/16-18 x .750

$3.99

$

In Stock, Qty 20+

0

19

Troy-Bilt 712-04063

Flange Lock Nut, 5/16-18

$3.99

$

In Stock, Qty 20+

0

20

Troy-Bilt 731-04426A

Upper Chute
(Superseded to 731-04426C)

$18.99

$

In Stock, Qty 6

0

21

Troy-Bilt 731-07644

Chute Handle

$24.99

$

In Stock, only 1 left!

0

22

Troy-Bilt 931-07753A

Lower Chute

$32.99

$

Usually ships in 3-6 days

0
