210-406-138 - MTD Tiller (1990) (Home Depot) Chain Case (wheels), With Reverse Drive Parts Diagram

Tiller

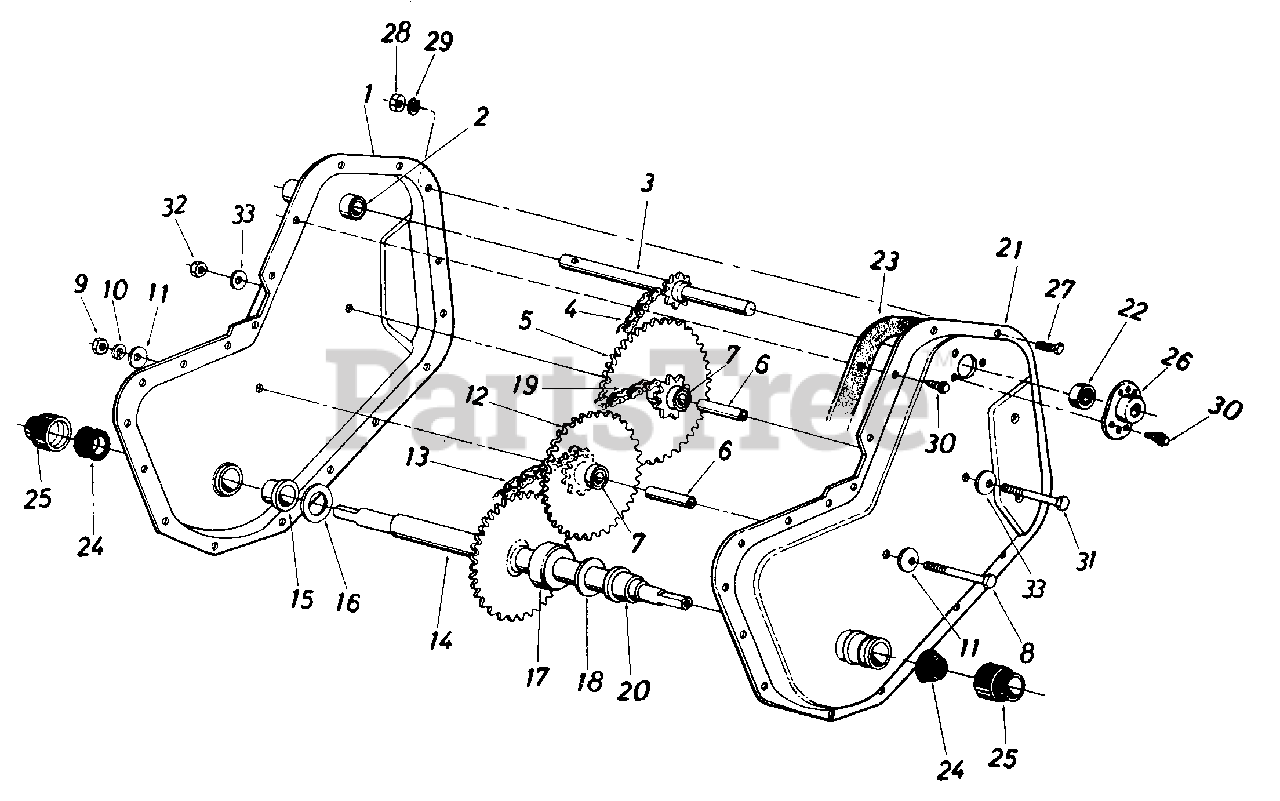

Chain Case (wheels), With Reverse Drive Parts Diagram

  • Title
1

MTD Part# 14962

Chain Case Half Ass'y. R.H.
Usually ships same day

Not available

$

$

2

MTD Part# 748-0154

Bearing 5/8" I.D. x .813" O.D. x 1.31" Lg.
Usually ships same day

Not available

$

$

3

MTD Part# 784-0136A

Input Shaft Ass'y.
Usually ships same day

Not available

$

$

4

MTD Part# 713-0325

Chain #35 3/8" Pitch x 44 Links
Usually ships same day

Not available

$

$

5

MTD Part# 713-0316

Sprocket and Hub Ass'y.
Usually ships same day

Currently unavailable

$

$

6

MTD Part# 750-0351

Bearing Inner Axle
Usually ships same day

Not available

$

$

7

MTD Part# 741-0228

Sleeve Brg. 5/8" I.D. x 3/4" O.D. x 1.50
Usually ships same day

Not available

$

$

8

MTD Part# 710-0369

Hex Bolt 3/8-24 x 2.50" Lg.
Usually ships in 5 to 10 days

$

$4.81

0

9

MTD Part# 712-0116

Hex Ins. L-Nut 3/8-24 Thd.
(Superseded to 912-0116)
Usually ships same day

Not available

$

$

10

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

11

MTD Part# 736-0219

Bell-Wash. .41" I.D. x 1.13" O.D. x .03
(Superseded to 936-0219)
Usually ships in 1 day

$

$3.06

0

12

MTD Part# 713-0330

Sprocket & Hub Ass'y. 9T-22T
Usually ships same day

Not available

$

$

13

MTD Part# 713-0326

#420 Chain 1/2 Pitch x 28 Links Endless
(Superseded to 913-0326)
Usually ships same day

Not available

$

$

14

MTD Part# 784-0126A

Wheel Shaft Ass'y.
Usually ships same day

Not available

$

$

15

MTD Part# 741-0227

Flange Bearing
Usually ships in 1 day

$

$8.19

0

16

MTD Part# 736-0265

Fl-Wash. .88" I.D. x 1.5" O.D. x .03
Usually ships same day

Not available

$

$

17

MTD Part# 750-0354A

Spacer 7/8" I.D. x 13/4" O.D. x.68" Lg.
Usually ships same day

Not available

$

$

18

MTD Part# 736-0265

Fl-Wash. .88" I.D. x 1.50" O.D. x .03
Usually ships same day

Not available

$

$

19

MTD Part# 713-0267

#420 Chain 1/2" Pitch x 30 Links Endless
Usually ships same day

Not available

$

$

20

MTD Part# 741-0227

Flange Bearing
Usually ships in 1 day

$

$8.19

0

21

MTD Part# 15797

Chain Case Half Ass'y. L.H.

Variations

MTD Part# 15797-0637

No Longer Available HOUSING-WH - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

22

MTD Part# 741-0155

Bearing
(Superseded to 941-0155)
Usually ships in 1 day

$

$17.54

0

23

MTD Part# 721-0156

Gasket
(Superseded to 921-0156A)
Usually ships in 5 to 10 days

$

$27.42

0

Usually ships same day

Not available

$

$

25
Usually ships in 1 day

$

$9.27

0

26

MTD Part# 05034

Bearing Housing
(Superseded to 05034A)
Usually ships same day

Not available

$

$

27

MTD Part# 710-0195

Hex Bolt 1/4-28 x 5/8" Lg.
(Superseded to 910-0195)
Usually ships in 1 day

$

$2.53

0

28

MTD Part# 712-0138

Hex Nut 1/4-28 Thd.
(Superseded to 912-0138)
Usually ships same day

Not available

$

$

29

MTD Part# 736-0329

L-Wash. 1/4" I.D.
(Superseded to 936-0329)
Usually ships in 1 day

$

$3.11

0

30

MTD Part# 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.
Usually ships in 1 day

$

$3.06

0

31

MTD Part# 710-0378

Hex Bolt 5/16-18 x 2.5" Lg.
Usually ships in 5 to 10 days

$

$3.29

0

32

MTD Part# 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

33

MTD Part# 736-0159

Fl-Wash. 5/16" I.D.
(Superseded to 936-0159)
Usually ships same day

Not available

$

$

MTD Part# 737-0133

Grease Plastilube #0
(Superseded to 737-0300A)

Note: (10 oz.)

Usually ships in 1 day

$

$27.98

0

MTD Part# 784-0104A

Wheel Chain Case Comp.
Usually ships same day

Currently unavailable

$

$
