210-406-138 - MTD Tiller (1990) (Home Depot) Parts, With Reverse Drive Parts Diagram

Tiller

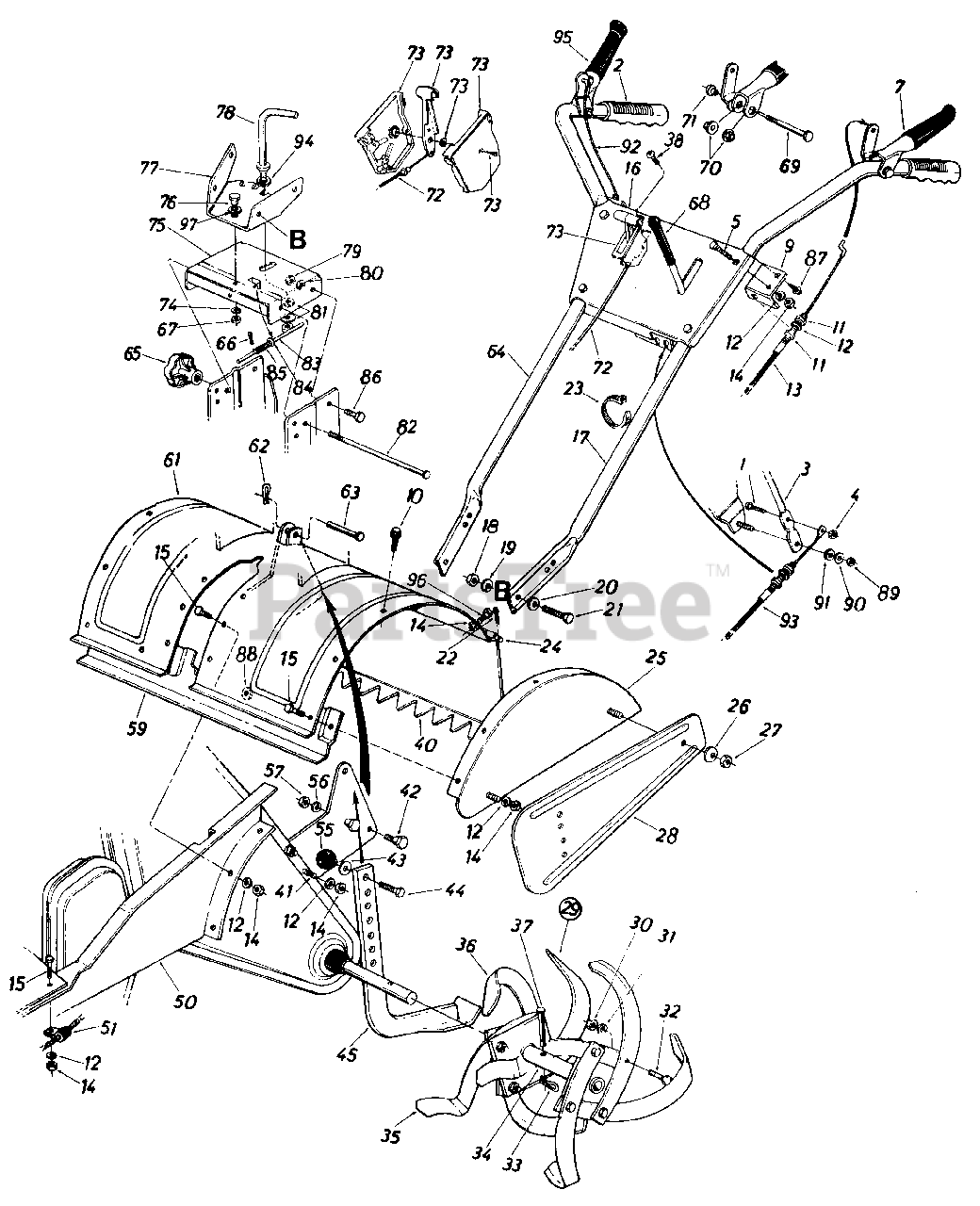

Parts, With Reverse Drive Parts Diagram

  • Title
1

MTD Part# 710-0412

Hex Bolt 1/4-28 x .75" Lg.*
Usually ships in 1 day

$

$3.97

0

2

MTD Part# 720-0180

Grip
(Superseded to 720-04083)
Usually ships in 1 day

$

$10.39

0

3

MTD Part# 747-0517

Clutch Lever
Usually ships same day

Not available

$

$

4

MTD Part# 712-0117

Hex Cent. L-Nut 1/4-28 Thd.
(Superseded to 912-0117)
Usually ships in 1 day

$

$2.02

0

5

MTD Part# 710-0458

Carr. Bolt 5/16-18 x 1.75
Usually ships in 1 day

$

$3.16

0

7

MTD Part# 784-0031

Clutch Grip Ass'y. L.H.
Usually ships same day

Not available

$

$

9

MTD Part# 15093C

Clutch Cable Bracket
Usually ships same day

Not available

$

$

10

MTD Part# 710-0607

Hex Wash. S-Tap Scr. 5/16-18 x .62" Lg.
Usually ships in 1 day

$

$4.82

0

11

MTD Part# 712-0256

Hex Nut 5/16-24 Thd.
Usually ships in 5 to 10 days

$

$4.81

0

12

MTD Part# 736-0119

L-Wash. 6/16" I.D.
(Superseded to 936-0119)
Usually ships in 1 day

$

$3.41

0

13

MTD Part# 746-0535

Clutch Control Cable
(Superseded to 946-0535)

Note: (Tines)

Usually ships in 1 day

$

$48.89

0

14

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

15

MTD Part# 710-0118

Hex Bolt 5/16-18 x .75" Lg.
(Superseded to 710-3008)
Usually ships in 1 day

$

$2.99

0

16

MTD Part# 784-0271

Handle Panel Ass'y.

Variations

MTD Part# 784-0271-0637

No Longer Available PANEL ASM - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 784-0271-0638

No Longer Available PANEL ASM - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

MTD Part# 784-0271-0674

No Longer Available PANEL ASM - YARDMAN YELLOW (0674)
Usually ships same day

Not available

$

$

MTD Part# 784-0271-0691

No Longer Available PANEL ASM - BLACK JACK (0691)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

17

MTD Part# 749-0643A

Handle L.H.

Variations

MTD Part# 749-0643A-0483

No Longer Available HANDLE - CHARCOAL GRAY (0483)
Usually ships same day

Not available

$

$

MTD Part# 749-0643A-0637

No Longer Available HANDLE - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 749-0643A-0638

No Longer Available HANDLE-LH - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

MTD Part# 749-0643A-0674

No Longer Available HANDLE-LH - YARDMAN YELLOW (0674)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

18

MTD Part# 712-0798

Hex Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.06

0

19

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

20

MTD Part# 736-0105

Bell-Wash. 818" I.D.
Usually ships in 1 day

$

$3.15

0

21

MTD Part# 710-0253

Hex Bolt 3/8-16 x l" Lg.
(Superseded to 710-0514)
Usually ships in 1 day

$

$3.01

0

22

MTD Part# 714-0507

Cotter Pin 8/32" Dia. x 3/4"*
(Superseded to 914-0507)
Usually ships in 1 day

$

$3.15

0

23

MTD Part# 725-0157

Cable Tie
Usually ships in 1 day

$

$2.74

0

24

MTD Part# 747-0432

Tiller Flap Rod
Usually ships in 5 to 10 days

$

$9.69

0

25

MTD Part# 14989

End Cover Ass'y. L.H.

Variations

MTD Part# 14989-0637

No Longer Available COVER ASM - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

MTD Part# 14990

End Cover Ass'y. R.H.

Note: (Not Shown)

Variations

MTD Part# 14990-0637

No Longer Available COVER ASM - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 14990-0638

No Longer Available - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

26

MTD Part# 736-0242

Bell-Wash. 5/16" I.D.
Usually ships in 1 day

$

$3.00

0

27

MTD Part# 712-0267

Hex Nut 5/16-18 Thd.
(Superseded to 912-3010)
Usually ships in 5 to 10 days

$

$3.11

0

28

MTD Part# 15390

Side Shield

Variations

MTD Part# 15390-0480

No Longer Available - BRILLIANT GREEN (0480)
Usually ships same day

Not available

$

$

MTD Part# 15390-0498

No Longer Available - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 15390-0499

No Longer Available - CUB BEIGE (0499)
Usually ships same day

Not available

$

$

MTD Part# 15390-0629

No Longer Available - SILVER FLAKE (0629)
Usually ships same day

Not available

$

$

MTD Part# 15390-0637

No Longer Available SHIELD-SID - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 15390-0638

No Longer Available - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

MTD Part# 15390-0648

No Longer Available - TECH GRAY (0648)
Usually ships same day

Not available

$

$

MTD Part# 15390-0662

No Longer Available - OYSTER GRAY (0662)
Usually ships same day

Not available

$

$

MTD Part# 15390-0665

No Longer Available - YARDMAN GREEN (0665)
Usually ships same day

Not available

$

$

MTD Part# 15390-0674

No Longer Available - YARDMAN YELLOW (0674)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

29

MTD Part# 15397

L.H. Tine Ass'y. Comp.

Variations

MTD Part# 15397-0637

No Longer Available - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

MTD Part# 15398

R.H. Tine Ass'y. Comp.

Variations

MTD Part# 15398-0637

No Longer Available TINE ASM- - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

30

MTD Part# 712-0241

Hex Nut 3/8-24 Thd.
Usually ships in 1 day

$

$3.10

0

31

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

32

MTD Part# 710-0191

Hex Bolt 3/8-24 x 1.25" Lg.
Usually ships in 1 day

$

$3.23

0

33

MTD Part# 714-0149B

Hairpin Cotter
(Superseded to 914-0149B)
Usually ships same day

Not available

$

$

34

MTD Part# 14978

Tine Adapter Ass'y.

Variations

MTD Part# 14978-0637

No Longer Available ADAPTER AS - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

35

MTD Part# 742-0106

Tine 12n R.H.

Variations

MTD Part# 742-0106-0637

Tiller Bolo Tine, 12" RH 3-Hole - POWDER BLACK (0637)
Usually ships in 5 to 10 days

$

$12.82

0

Usually ships same day

$

$

36

MTD Part# 742-0105

Tine 12" L.H.

Variations

MTD Part# 742-0105-0637

No Longer Available - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

37

MTD Part# 711-0415

Clevis Pin 3/8" Dia.
Usually ships in 1 day

$

$3.23

0

38

MTD Part# 710-0779A

Truss Mach. AB-Tap Scr. #10 x 5" Lg
Usually ships in 1 day

$

$3.08

0

40

MTD Part# 14979

Tine Shield Flap

Variations

MTD Part# 14979-0498

Rear Tine Shield - OLD CUB YELLOW (0498)
Usually ships in 5 to 10 days

$

$63.57

0

MTD Part# 14979-0638

SHIELD-REAR TINE - MTD/TROY-BILT RED (0638)
Usually ships in 5 to 10 days

$

$63.57

0

MTD Part# 14979-0665

SHIELD-REAR TINE - YARDMAN GREEN (0665)
Usually ships in 5 to 10 days

$

$63.57

0

MTD Part# 14979-0483

USE 786-0113A SHIELD-REAR TIN - CHARCOAL GRAY (0483)
Usually ships same day

Not available

$

$

MTD Part# 14979-0606

No Longer Available SHIELD - MAJESTIC ORANGE (0606)
Usually ships same day

Not available

$

$

MTD Part# 14979-0637

USE 786-0113A SHIELD-REAR TIN - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 14979-0662

No Longer Available SHIELD - OYSTER GRAY (0662)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

41

MTD Part# 710-0736

Hex Bolt 5/16-18 x 1.0" Lg.
Usually ships same day

Not available

$

$

42

MTD Part# 738-0507B

Shld. Bolt 1/2" Dia. x .43"
(Superseded to 938-0507B)
Usually ships same day

Not available

$

$

43

MTD Part# 736-0117

Fl-Wash. 3/8" I.D. x 5/8" O.D.
(Superseded to 936-0117)
Usually ships in 1 day

$

$4.97

0

44

MTD Part# 710-0216

Hex Bolt 3/8-16 x 3/4" Lg.
Usually ships in 1 day

$

$3.12

0

45

MTD Part# 14992

Depth Bar Ass'y.

Variations

MTD Part# 14992-0637

Depth Bar Assembly - POWDER BLACK (0637)
Usually ships in 1 day

$

$53.76

0

Usually ships same day

$

$

50

MTD Part# 14975

Frame Rail L.H.

Variations

MTD Part# 14975-0637

No Longer Available RAIL-FRAME - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

51

MTD Part# 726-0175

Clamp 5/16" Dia.
Usually ships same day

Not available

$

$

55

MTD Part# 720-0165

Ball Knob 1-1/4" Dia.
(Superseded to 920-0232)
Usually ships in 1 day

$

$7.29

0

56

MTD Part# 736-0169

L-Wash. 3/8" I.D.
(Superseded to 936-0169)
Usually ships in 1 day

$

$2.64

0

57

MTD Part# 712-0798

Hex Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.06

0

59

MTD Part# 15393

Brkt. Reinforcement

Variations

MTD Part# 15393-0637

No Longer Available BRACKET-RE - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

61

MTD Part# 784-0026

Tine Shield Ass'y.

Variations

MTD Part# 784-0026-0498

No Longer Available SHIELD-TIN - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 784-0026-0638

No Longer Available SHIELD-TIN - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

62

MTD Part# 714-0149B

Hairpin Cotter
(Superseded to 914-0149B)
Usually ships same day

Not available

$

$

63

MTD Part# 711-0415

Clevis Pin 3/8" Dia.
Usually ships in 1 day

$

$3.23

0

64

MTD Part# 749-0642A

Handle R.H.

Variations

MTD Part# 749-0642A-0637

No Longer Available HANDLE - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 749-0642A-0638

No Longer Available HANDLE-RH - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

MTD Part# 749-0642A-0674

No Longer Available HANDLE-RH - YARDMAN YELLOW (0674)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

65

MTD Part# 720-0195

Hand Knob
Usually ships in 1 day

$

$10.97

0

66

MTD Part# 714-0127

Cotter Pin 1/16" Dia. x .75"
Usually ships same day

Not available

$

$

67

MTD Part# 712-0375

Hex Cent. L-Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.19

0

Usually ships same day

Not available

$

$

69

MTD Part# 738-0575

Shoulder Bolt .375" Dia. x 1.37" Lg.
Usually ships same day

Not available

$

$

70

MTD Part# 741-0402

Hex Flange Plastic Bearing
Usually ships same day

Not available

$

$

71

MTD Part# 738-0561

Shoulder Nut 1/4-20 Thd.
(Superseded to 938-0561)
Usually ships in 1 day

$

$8.53

0

72

MTD Part# 746-0502

Throttle Control Wire
(Superseded to 946-0502)
Usually ships in 1 day

$

$17.52

0

73

MTD Part# 831-0823A

Throttle Control Box Ass'y.
Usually ships in 1 day

$

$24.29

0

74

MTD Part# 736-0219

Bell-Wash. .40" I.D. x 1.13"
(Superseded to 936-0219)
Usually ships in 1 day

$

$3.06

0

75

MTD Part# 784-0022

Handle Pivot Bracket

Variations

MTD Part# 784-0022-0498

No Longer Available BRACKET - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 784-0022-0499

No Longer Available BRACKET - CUB BEIGE (0499)
Usually ships same day

Not available

$

$

MTD Part# 784-0022-0637

No Longer Available BRACKET-PI - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 784-0022-0638

No Longer Available BRACKET - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

MTD Part# 784-0022-0687

No Longer Available BRACKET - PINE GREEN (0687)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

76

MTD Part# 738-0322

Shoulder Bolt 5/8" Dia. x 22" Lg.
(Superseded to 738-0322A)
Usually ships in 1 day

$

$4.76

0

77

MTD Part# 784-0019

Handle Mtg. Bracket

Variations

MTD Part# 784-0019-0498

No Longer Available - OLD CUB YELLOW (0498)
Usually ships same day

Not available

$

$

MTD Part# 784-0019-0637

No Longer Available 28DCKET-HA - POWDER BLACK (0637)
Usually ships same day

Not available

$

$

MTD Part# 784-0019-0638

No Longer Available - MTD/TROY-BILT RED (0638)
Usually ships same day

Not available

$

$

Usually ships same day

$

$

78

MTD Part# 784-0025

Adj. Handle Ass'y.
Usually ships same day

Currently unavailable

$

$

79

MTD Part# 712-0375

Hex Cent. L-Nut 3/8-16 Thd.
Usually ships in 1 day

$

$3.19

0

80

MTD Part# 736-0105

Bell-Wash. 40" I.D. x .88"
Usually ships in 1 day

$

$3.15

0

81

MTD Part# 736-0253

Bell-Wash. 1/2" I.D. x 1.00"
(Superseded to 936-0253)
Usually ships in 1 day

$

$2.84

0

82

MTD Part# 711-0765

Lock Pin 5/16" Dia. x 3"
Usually ships same day

Not available

$

$

83

MTD Part# 784-0023

Lower Sliding Ass'y.
Usually ships same day

Not available

$

$

84

MTD Part# 736-0463

Fl-Wash. .291" I.D. x .62"
(Superseded to 936-0463)
Usually ships in 1 day

$

$3.13

0

85

MTD Part# 732-0145

Compression Spring 1" Lg.
Usually ships in 5 to 10 days

$

$3.00

0

86

MTD Part# 738-0147

Shoulder Bolt 1/2" Dia. x .1 70" Lg.
Usually ships same day

Not available

$

$

87

MTD Part# 710-0599

Hex Wash. S-Tap Scr. 1/4-20 x .50" Lg.
Usually ships in 1 day

$

$3.06

0

88

MTD Part# 736-0242

Bell-Wash. 5/16" I.D.
Usually ships in 1 day

$

$3.00

0

89

MTD Part# 712-0158

Hex Cent. L-Nut 5/16-18 Thd.
(Superseded to 912-0158)
Usually ships in 1 day

$

$2.27

0

90

MTD Part# 736-0159

Fl-Wash. .344" I.D. x .87"
(Superseded to 936-0159)
Usually ships same day

Not available

$

$

91

MTD Part# 735-0126

Rubber Wash. .33 I.D. x 37"
(Superseded to 735-0126A)
Usually ships same day

Not available

$

$

92

MTD Part# 746-0496

Control Cable
(Superseded to 946-0496)

Note: (Forward)

Usually ships in 1 day

$

$57.40

0

93

MTD Part# 746-0571

Control Cable
(Superseded to 946-0571)

Note: (Reverse)

Usually ships in 1 day

$

$48.65

0

94

MTD Part# 736-0285

Fl-Wash. .62" I.D. x 1.57"
Usually ships in 1 day

$

$3.08

0

95

MTD Part# 784-0270

Clutch Grip Ass'y. R.H.
Usually ships same day

Not available

$

$

96

MTD Part# 710-0528

Hex Bolt 5/16-18 x 1.25"
Usually ships in 1 day

$

$3.11

0

97

MTD Part# 736-0256

Fl-Wash. .64" I.D. x .94"
(Superseded to 936-0256)
Usually ships in 1 day

$

$5.02

0
