2100 (31AS2T5F766) - Troy-Bilt Squall 21" Snow Thrower (2016) Chute Parts Diagram

Squall 21" Snow Thrower

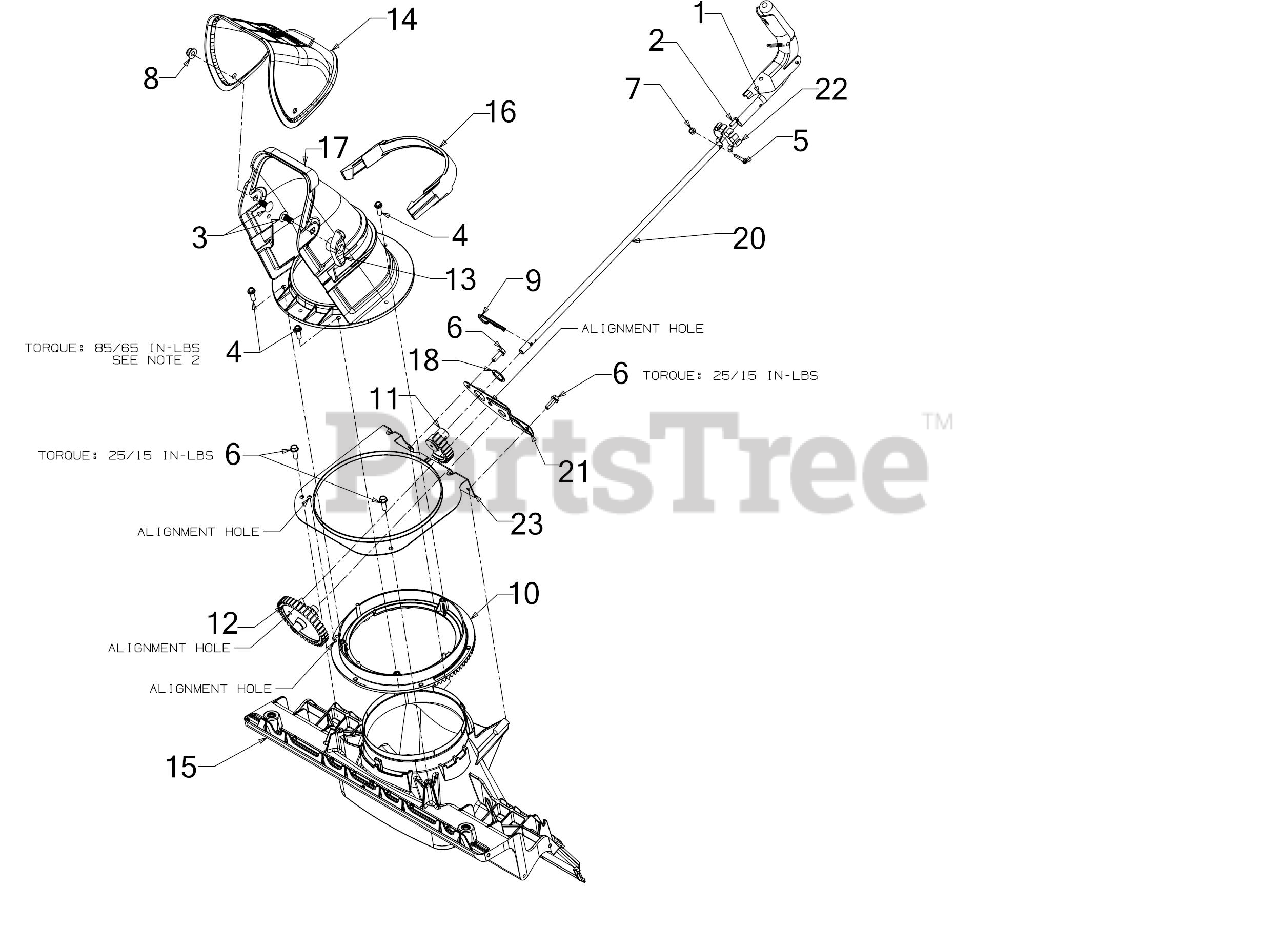

Chute Parts Diagram

  • Title

1

Troy-Bilt 720-04172

GRIP

Note: (Not Shown)

$4.49

$

Usually ships in 3-6 days

0

1

Troy-Bilt 732-04864A

SPRING

Note: (Not Shown)

$6.99

$

In Stock, only 2 left!

0

1

Troy-Bilt 749-04827-0637

CHUTE TUBE

Note: (Not Shown)

$

$

Not available

1

Troy-Bilt 790-00473-0637

CHUTE ROTATION BRACKET

Note: (Not Shown)

$33.99

$

Usually ships in 3-6 days

0

1

Troy-Bilt 915-0249

SPRING PIN ROLL

Note: (Not Shown)

$6.99

$

In Stock, only 1 left!

0

1

Troy-Bilt 984-04388

CHUTE CONTROL ASSEMBLY

$43.99

$

Usually ships in 3-6 days

0

2

Troy-Bilt 710-04326

SCREW #8-16 x .50

$3.99

$

In Stock, Qty 11

0

3

Troy-Bilt 710-0451

CARRIAGE BOLT 5/16-18 x .75

$4.49

$

In Stock, Qty 20+

0

4

Troy-Bilt 710-05108

SCREW 1/4 x .750

$3.99

$

In Stock, Qty 20+

0

5

Troy-Bilt 710-05179A

SCREW #8-32 x .875

$4.49

$

Usually ships in 3-6 days

0

6

Troy-Bilt 710-0895

SCREW 1/4-15 x .750

$6.49

$

In Stock, Qty 20+

0

7

Troy-Bilt 712-04035

NUT

$4.49

$

Usually ships in 3-6 days

0

8

Troy-Bilt 712-04063

FLANGE LOCK NUT 5/16-18

$3.99

$

In Stock, Qty 20+

0

9

Troy-Bilt 714-04003

COTTER PIN .125X2.

$8.49

$

Usually ships in 3-6 days

0

10

Troy-Bilt 917-04844B

BEVEL GEAR 95T

$35.99

$

Usually ships in 3-6 days

0

11

Troy-Bilt 717-04940

SPUR GEAR

$13.99

$

Usually ships in 3-6 days

0

12

Troy-Bilt 717-04941

SPUR-GEAR 40T

$19.99

$

Usually ships in 3-6 days

0

13

Troy-Bilt 720-04122

WING KNOB 5/16-18

$6.99

$

In Stock, Qty 20+

0

14

Troy-Bilt 731-04426A

UPPER CHUTE
(Superseded to 731-04426C)

$19.99

$

In Stock, Qty 6

0

15

Troy-Bilt 931-07626B

CHUTE ADAPTER

$42.99

$

Usually ships in 3-6 days

0

16

Troy-Bilt 731-07708

CHUTE PLUG

$13.99

$

Usually ships in 3-6 days

0

17

Troy-Bilt 931-07753A

LOWER CHUTE 6.5

$35.99

$

Usually ships in 3-6 days

0

18

Troy-Bilt 736-04161

FLAT WASHER .750X1.000X.060:HD

$6.99

$

In Stock, only 2 left!

0

20

Troy-Bilt 747-05299A

LOWER CHUTE CRANK ROD

$15.99

$

Usually ships in 3-6 days

0

21

Troy-Bilt 790-00416

GEAR PLATE

$5.99

$

Usually ships in 3-6 days

0

22

Troy-Bilt 790-00459

BRACKET

$11.99

$

In Stock, only 1 left!

0

23

Troy-Bilt 790-00471

RETAIN GEAR BRACKET

$21.99

$

Usually ships in 3-6 days

0
