2100 P (UT-26500) - Green Machine Walk-Behind Mower Intake And Exhaust Parts Diagram

Walk-Behind Mower

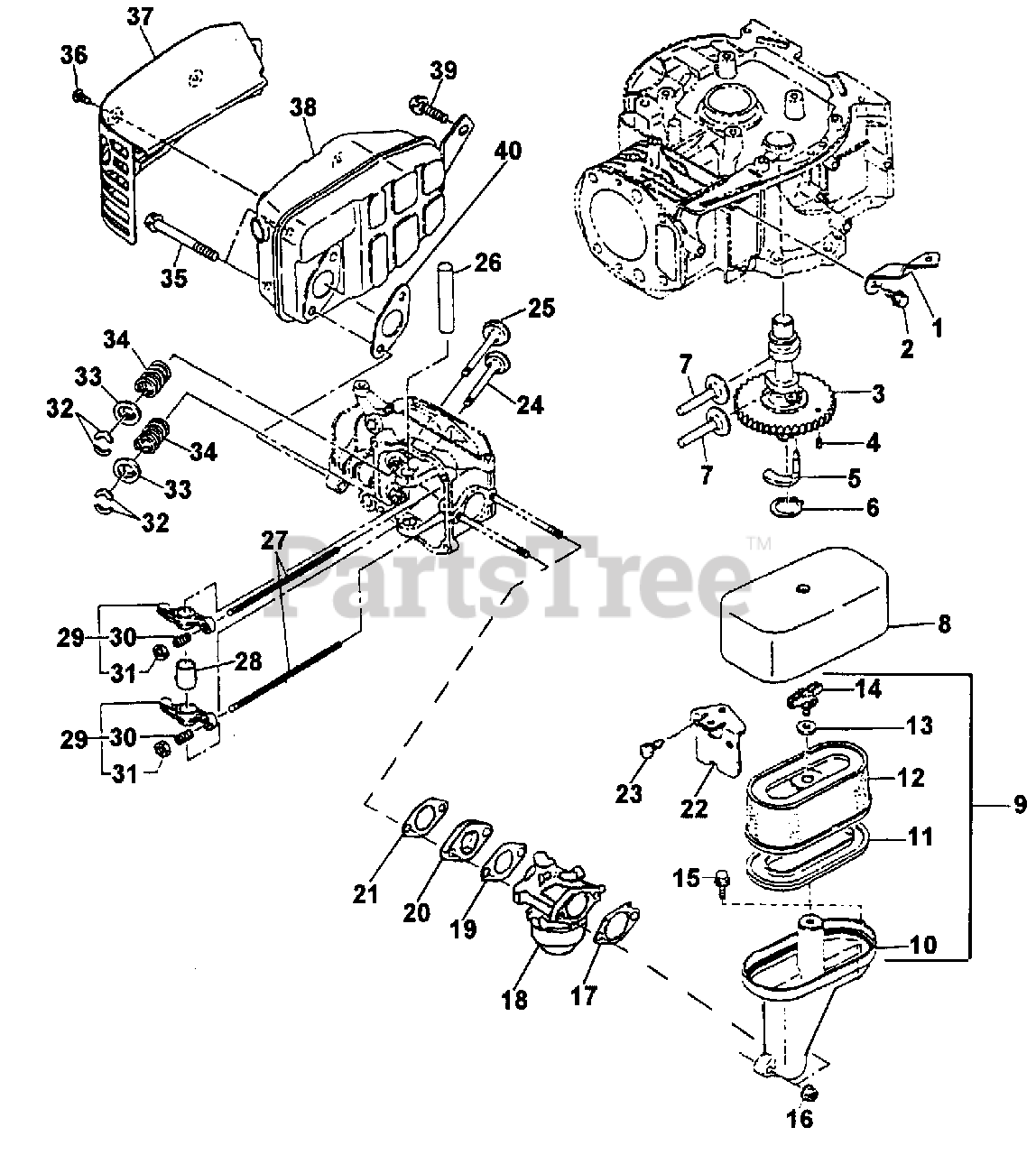

Intake And Exhaust Parts Diagram

  • Title

1

Homelite 0827226

BRACKET, Air Cleaner

$

$

Currently unavailable

2

Homelite 0827034

BOLT, Flange

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Not available

3

Homelite A0827201

CAMSHAFT

$

$

Currently unavailable

4

Homelite 0827204

PIN, Spring

$

$

Currently unavailable

5

Homelite 0827202

LEVER, Release

$

$

Currently unavailable

6

Homelite 0827203

RING, Snap

$

$

Currently unavailable

7

Homelite 0827205

TAPPET

$

$

Currently unavailable

8

Homelite 0827225

COVER, Air Cleaner

$

$

Not available

9

Homelite A0827220

AIR CLEANER

$

$

Not available

10

Homelite 0827242

BASE, AIR CLEANER

$40.99

$

Usually ships in 3-7 days

0

11

Homelite 0827221

PACKING

$

$

Not available

12

Homelite 0827241

ELEMENT SET

$

$

Not available

13

Homelite 0827224

GROMMET

$

$

Currently unavailable

14

Homelite 0827223

BOLT, Wing

$

$

Not available

15

Homelite 0827237

BOLT, Flange

Note: Torque Specs: 40-50 In/Lbs; 4.6-5.7 Nm

$

$

Currently unavailable

16

Homelite 0827235

NUT, Flange

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Currently unavailable

17

Homelite 0827231

GASKET

$

$

Not available

18

Homelite A0827239

CARBURETOR

$

$

Not available

19

Homelite 0827230

GASKET, Insulator

$

$

Not available

20

Homelite 0827228

INSULATOR

$

$

Currently unavailable

21

Homelite 0827229

GASKET, Insulator

$

$

Currently unavailable

22

Homelite 0827227

BRACKET, Air Cleaner Cover

$

$

Currently unavailable

23

Homelite 0827238

BOLT, Tapping

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Currently unavailable

24

Homelite 0827207

VALVE, Exhaust

$

$

Not available

25

Homelite 0827206

VALVE, Intake

$

$

Currently unavailable

26

Homelite 0827211

SHAFT, Rocker

$

$

Currently unavailable

27

Homelite 0827212

ROD, Push

$

$

Not available

28

Homelite 0827216

SPACER

$

$

Currently unavailable

29

Homelite A0827213

ROCKER ARM

$

$

Not available

30

Homelite 0827214

SCREW, Adjusting

$

$

Currently unavailable

31

Homelite 0827215

NUT

$

$

Currently unavailable

32

Homelite 0827210

KEEPERS, VALVE

$

$

Currently unavailable

33

Homelite 0827209

RETAINER

$

$

Currently unavailable

34

Homelite 0827208

SPRING, Valve

$

$

Currently unavailable

35

Homelite 0827232

BOLT AND WASHER

Note: Torque Specs: 199-234 In/Lbs; 22.5-26.5 Nm

$

$

Not available

36

Homelite 0827234

SCREW, Tapping

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Currently unavailable

37

Homelite 0827218

COVER, Muffler

$

$

Currently unavailable

38

Homelite 0827217

MUFFLER

$

$

Not available

39

Homelite 0827233

BOLT AND WASHER

Note: Torque Specs: 199-234 In/Lbs; 22.5-26.5 Nm

$

$

Currently unavailable

40

Homelite 0827219

GASKET, Exhaust

$

$

Currently unavailable
