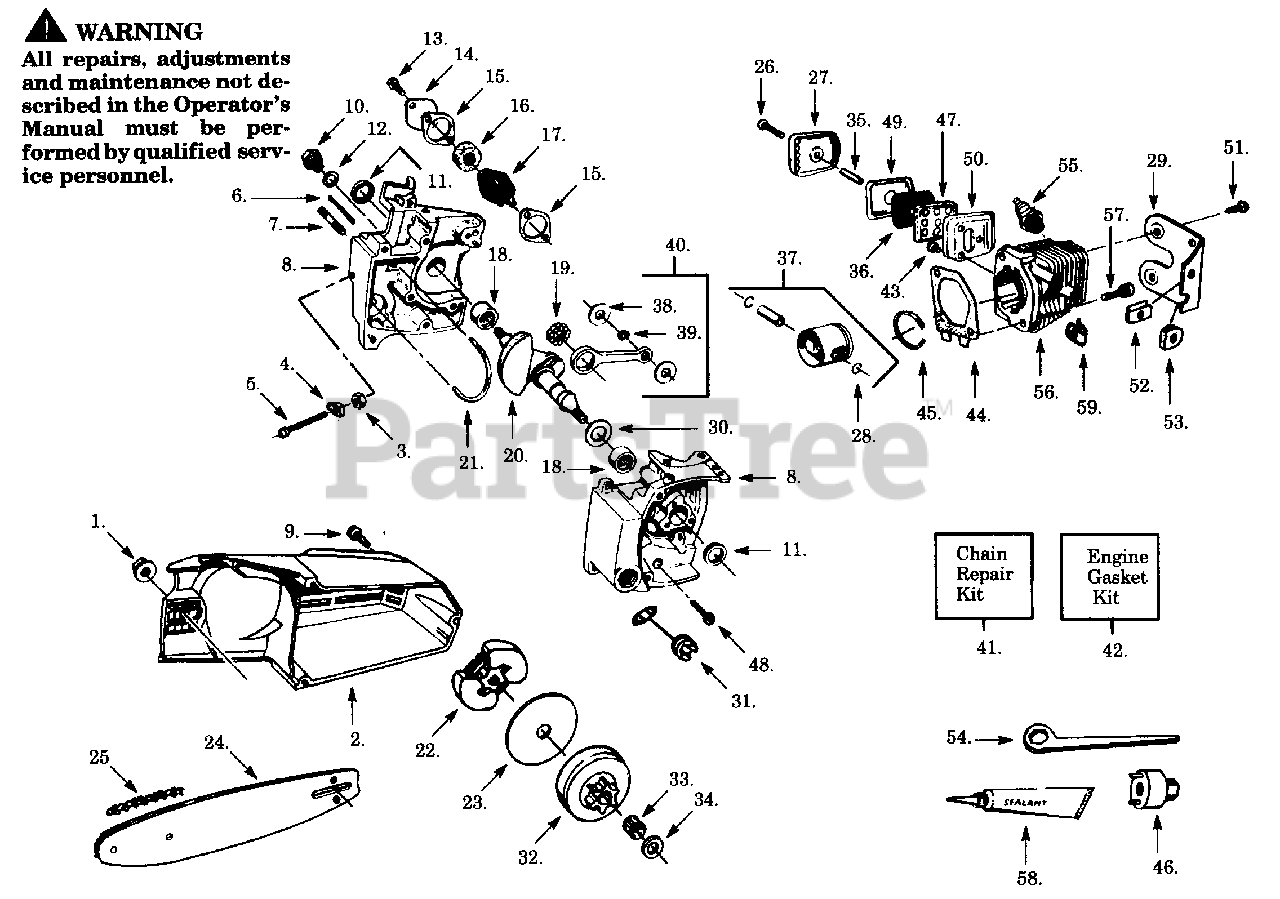

2100 - Poulan Chainsaw INTERNAL POWER UNIT Parts Diagram

Chainsaw

INTERNAL POWER UNIT Parts Diagram

  • Title

1

Poulan 530015251

Bar Mounting Nut

$

$

Not available

2

Poulan 530036928

Bar Clamp

$15.99

$

In Stock, only 1 left!

0

3

Poulan 530015135

Locknut

$1.99

$

In Stock, Qty 7

0

4

Poulan 530023492

Bar Adjust Pin

$

$

Not available

5

Poulan 530015236

Screw
(Superseded to 530016115)

$

$

Not available

6

Poulan 530036450

Oil Tank Vent Pin

$

$

Not available

7

Poulan 530015642

Bar Mounting Stud
(Superseded to 530015719)

$3.99

$

Usually ships in 3-10 days

0

8

Poulan 530014759

Crankcase Ass'y.

Note: (Incl. 3-7,10,11,&18)

$

$

Not available

9

Poulan 530015623

Screw

$3.99

$

Usually ships in 3-10 days

0

10

Poulan 530069142

Check Valve Kit

Note: (Incl. 12)

$

$

Not available

11

Poulan 530019059

Crankshaft Seal

$

$

Not available

12

Poulan 530019089

Check Valve Gasket

$

$

Not available

13

Poulan 530001643

Screw

$

$

Not available

14

Poulan 530023802

Cover

$

$

Not available

15

Poulan 530019091

Metering Body Gasket

$

$

Not available

16

Poulan 530023801

Oil Filter (Foam)

$

$

Not available

17

Poulan 530010195

Oil Pump Ass'y.

$

$

Not available

18

Poulan 530032029

Crankshaft Bearing

$10.99

$

In Stock, only 4 left!

0

19

Poulan 530032065

Roller Bearing

Note: (Incl. 12 Bearings)

$

$

Not available

20

Poulan 530022172

Crankshaft

$

$

Not available

21

Poulan 530021026

Oil Discharge Line
(Superseded to 530069216)

$6.49

$

In Stock, Qty 20+

0

22

Poulan 530069193

Clutch Ass'y. Kit

$

$

Not available

23

Poulan 530069197

Clutch Washer Kit

$

$

Not available

24

Poulan 952044368

Guide Bar, Model 2100-14"

$

$

Not available

24

Poulan 952044370

Guide Bar, Model 2100 & 2400 G.SAW- 16"

$

$

Not available

24

Poulan 952044418

Guide Bar, Model 2400 G.SAW-18"

$

$

Not available

25

Poulan 952051209

Chain, Model 2100-14"
(Superseded to 581562101)

$

$

Not available

25

Poulan 952051211

Chain, Model 2100 & 2400 G.SAW - 16"
(Superseded to 581562201)

$22.99

$

In Stock, Qty 15

0

25

Poulan 952051338

Chain, Model 2400 G.SAW-18"
(Superseded to 581562301)

$25.99

$

In Stock, Qty 13

0

26

Poulan 530016026

Screw

$

$

Not available

27

Poulan 530036969

Muffler Cover

$3.99

$

Usually ships in 3-10 days

0

28

Poulan 530023843

Piston Pin Retainer

$

$

Not available

29

Poulan 530016024

Rear Mount Bracket

$

$

Not available

30

Poulan 530023887

Thrust Washer

$

$

Not available

31

Poulan 530010444

Oil Cap Ass'y.

Note: (Incl. O-Ring)

$

$

Not available

32

Poulan 530069166

Clutch Drum

$18.99

$

In Stock, only 2 left!

0

33

Poulan 530032079

Clutch Bearing

$

$

Not available

34

Poulan 530023519

Clutch Spacer-Inside

$3.99

$

In Stock, only 1 left!

0

35

Poulan 530016025

Muffler Spacer

$2.49

$

Usually ships in 3-10 days

0

36

Poulan 530036971

Muffler Screen

$

$

Not available

37

Poulan 530010587

Piston Kit
(Superseded to 530069545)

Note: (Incl. 28,45& Pin), Model 2100

$

$

Not available

37

Poulan 530069452

Piston Kit

Note: (Incl. 28,45& Pin), Model 2400 G.SAW

$

$

Not available

38

Poulan 530015486

Washer

$

$

Not available

39

Poulan 530032075

Bearing Rod Top

Note: (Incl. 22 Bearings

$

$

Not available

40

Poulan 530010474

Connecting Rod Assy

Note: (Incl. 38 & 39)

$

$

Not available

41

Poulan 530052073

Chain Repair Kit

$

$

Not available

42

Poulan 530069401

Engine Gasket Kit (*Indicates Contents)

$

$

Not available

43

Poulan 530001666

Screw

$

$

Not available

44

Poulan 530019195

Cylinder Gasket
(Superseded to 530069401)

$

$

Not available

45

Poulan 530025875

Piston Ring, Model 2100

$

$

Not available

45

Poulan 530025876

Piston Ring, Model 2400 G.SAW
(Superseded to 530037603)

$

$

Not available

46

Poulan 530031112

Clutch Tool

$14.99

$

In Stock, only 4 left!

0

47

Poulan 530037083

Muffler Baffle-Inner

$2.49

$

Usually ships in 3-10 days

0

48

Poulan 530015986

Screw

$

$

Not available

49

Poulan 530036970

Muffler Baffle-Outer

$2.49

$

Usually ships in 3-10 days

0

50

Poulan 530036968

Muffler Body

$3.99

$

Usually ships in 3-10 days

0

51

Poulan 530016017

Screw

$4.99

$

Usually ships in 3-10 days

0

52

Poulan 530016029

Speed Nut

$1.49

$

Usually ships in 3-10 days

0

53

Poulan 530037063

Grommet

$

$

Not available

54

Poulan 530031063

Bar Wrench
(Superseded to 545006011)

$

$

Not available

55

Poulan 530030154

Spark Plug

$

$

Not available

56

Poulan 530012314

Cylinder, Model 2100

$

$

Not available

56

Poulan 530012313

Cylinder, Model 2400 G.SAW

$9.99

$

Usually ships in 3-10 days

0

57

Poulan 530015239

Screw

$2.49

$

Usually ships in 3-10 days

0

58

Poulan 530030054

Crankcase Sealant

$

$

Not available

59

Poulan 530037354

Wire Clip

$1.49

$

Usually ships in 3-10 days

0

Poulan 530068710

Operator Manual

$

$

Not available

Carton Contents Bag

Note: Not Shown.

$

$

Not available

Poulan 530014778

Model 2100-14"

$

$

Not available

Poulan 530014790

Model 2400 G.SAW-18"

$

$

Not available

Poulan 530014766

Model 2100/2400 G.SAW-16"

$

$

Not available

Poulan 530061633

Carton (Not a serviceable part)

$

$

Not available

Repl. Bar & Chain Decal

Note: Not Shown.

$

$

Not available

Poulan 530027784

Model 2100 Decal (Not a serviceable part)

$

$

Not available

Poulan 530029292

Model 2400 G.SAW (Not a serviceable part)

$

$

Not available

Poulan 530037171

Instruction Decal

$1.49

$

Usually ships in 3-10 days

0
