2100 SP (UT-26501) - Green Machine Walk-Behind Mower Crankcase Parts Diagram

Walk-Behind Mower

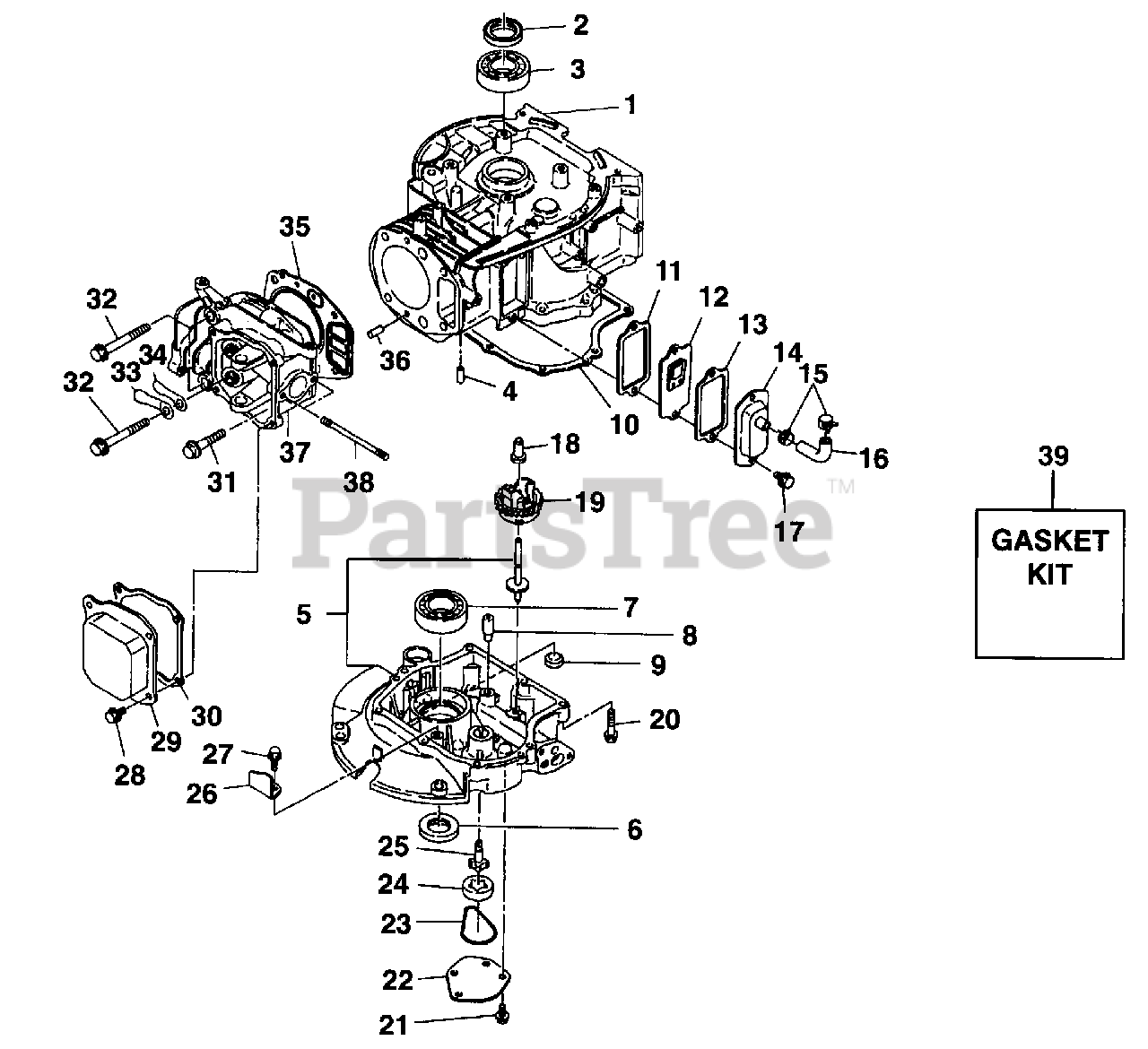

Crankcase Parts Diagram

  • Title

1

Homelite A0827001

CRANKCASE

$

$

Currently unavailable

2

Homelite 0827002

SEAL, Oil

$

$

Not available

3

Homelite 0827003

BEARING, Ball

$

$

Currently unavailable

4

Homelite 0827004

PIN, Dowel

$

$

Not available

5

Homelite A0827005

MAIN BEARING COVER

$

$

Not available

6

Homelite 0827006

SEAL, Oil

$

$

Not available

7

Homelite 0827003

BEARING, BALL

$

$

Currently unavailable

8

Homelite 0827008

OIL JET

$

$

Currently unavailable

9

Homelite 0827009

PLUG

$

$

Currently unavailable

10

Homelite 0827022

GASKET, Bearing Cover

$

$

Not available

11

Homelite 0827028

GASKET, Breather Plate

$

$

Currently unavailable

12

Homelite 0827026

BREATHER PLATE

$

$

Not available

13

Homelite 0827027

GASKET, Tappet Cover

$

$

Currently unavailable

14

Homelite 0827025

TAPPET COVER

$

$

Currently unavailable

15

Homelite 0827032

CLAMP, Hose

$

$

Currently unavailable

16

Homelite 0827031

RUBBER PIPE

$

$

Not available

17

Homelite 0827034

BOLT, Flange

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Not available

18

Homelite 0827011

SLEEVE, Governor

$

$

Currently unavailable

19

Homelite 0827010

GOVERNOR GEAR

$

$

Currently unavailable

20

Homelite 0827033

BOLT & WASHER

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Currently unavailable

21

Homelite 0827038

BOLT, Flange

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Currently unavailable

22

Homelite 0827016

COVER, Oil Pump

$

$

Not available

23

Homelite 0827017

O-RING

$

$

Currently unavailable

24

Homelite 0827015

OIL PUMP, Outer

$

$

Currently unavailable

25

Homelite 0827014

OIL PUMP, Inner

$

$

Currently unavailable

26

Homelite 0827012

PLATE, Oil Shelter

$

$

Currently unavailable

27

Homelite 0827034

BOLT, Flange

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Not available

28

Homelite 0827034

BOLT, Flange

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Not available

29

Homelite 0827029

COVER, Rocker

$

$

Currently unavailable

30

Homelite 0827030

GASKET, Rocker Cover

$

$

Currently unavailable

31

Homelite 0827034

BOLT, Flange

Note: Torque Specs: 200-226 In/Lbs; 23-26 Nm

$

$

Not available

32

Homelite 0827035

BOLT, Flange

Note: Torque Specs: 200-226 In/Lbs; 23-26 Nm

$

$

Currently unavailable

33

Homelite 0827024

PLATE, Retainer

$

$

Currently unavailable

34

Homelite 0827023

VALVE, Leaf

$

$

Currently unavailable

35

Homelite 0827021

GASKET, Head

$

$

Not available

36

Homelite 0827004

PIN, Dowel

$

$

Not available

37

Homelite A0827018

CYLINDER HEAD

$

$

Not available

38

Homelite 0827019

STUD

$

$

Currently unavailable

39

Homelite 0827039

GASKET SET

$

$

Not available
