2100 SP (UT-26501) - Green Machine Walk-Behind Mower Governor, Operation Parts Diagram

Walk-Behind Mower

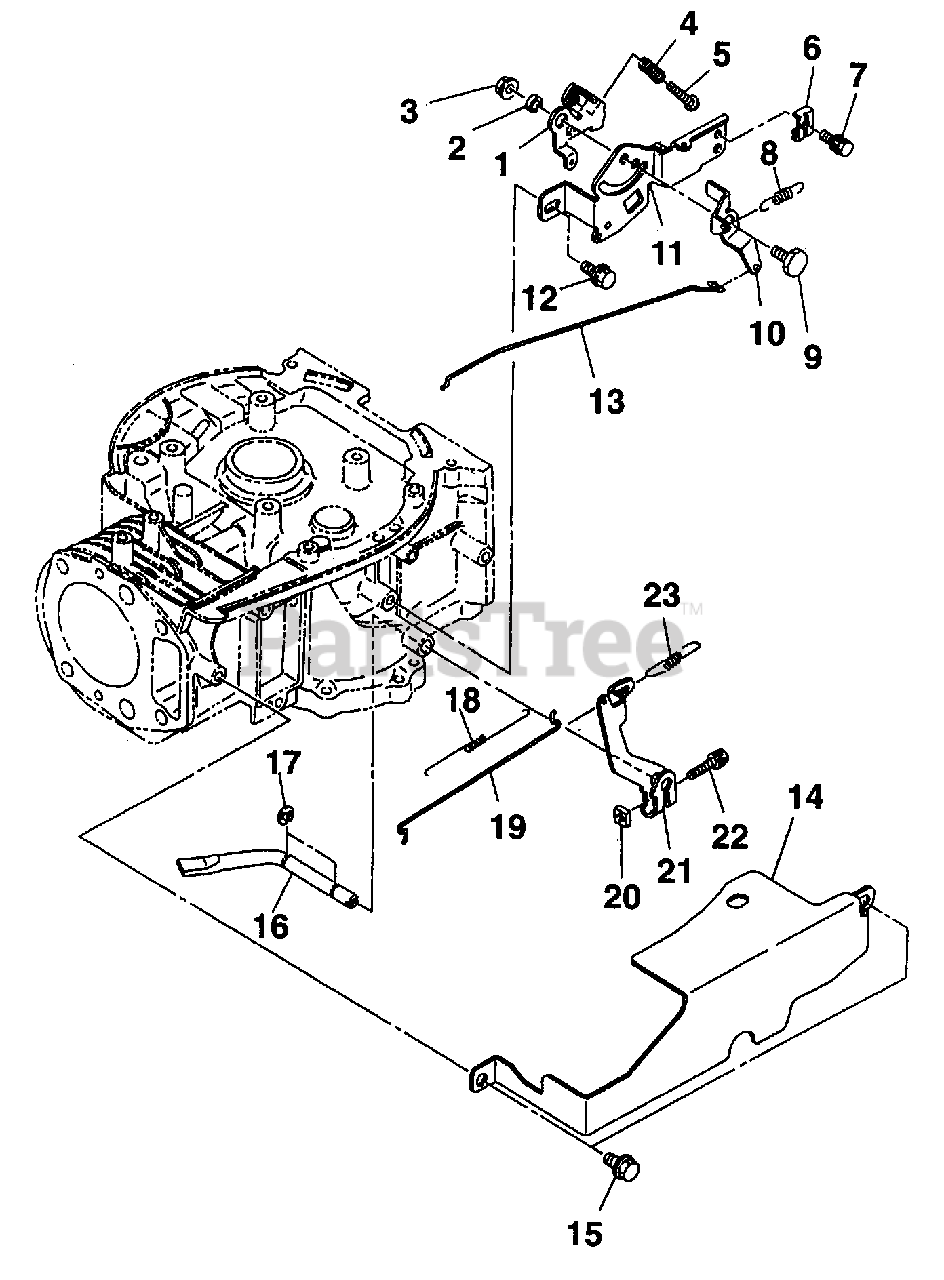

Governor, Operation Parts Diagram

  • Title

1

Homelite 0827308

LEVER, Speed Control

$

$

Not available

2

Homelite 0827311

SPACER

$

$

Currently unavailable

3

Homelite 0827235

NUT, Flange

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Currently unavailable

4

Homelite 0827319

SPRING, Adjust

$

$

Not available

5

Homelite 0827320

SCREW, Pan Head

$

$

Not available

6

Homelite 0827313

CLAMP

$

$

Currently unavailable

7

Homelite 0827321

BOLT AND WASHER

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Currently unavailable

8

Homelite 0827310

SPRING, Return

$

$

Currently unavailable

9

Homelite 0827312

PIVOT, Link

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Currently unavailable

10

Homelite 0827309

LEVER, Choke

$

$

Currently unavailable

11

Homelite 0827307

BRACKET

$

$

Currently unavailable

12

Homelite 0827034

BOLT, Flange

Note: Torque Specs: 69-83 In/Lbs; 8.0-9.5 Nm

$

$

Not available

13

Homelite 0827306

ROD, Choke

$

$

Currently unavailable

14

Homelite 0827322

GUARD, Side

$

$

Currently unavailable

15

Homelite 0827034

BOLT, Flange

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Not available

16

Homelite 0827302

SHAFT, Governor

$

$

Not available

17

Homelite 0827314

CLIP

$

$

Currently unavailable

18

Homelite 0827305

SPRING, Rod

$

$

Currently unavailable

19

Homelite 0827304

ROD, Governor

$

$

Currently unavailable

20

Homelite 0827316

NUT

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Currently unavailable

21

Homelite 0827301

LEVER, Governor

$

$

Not available

22

Homelite 0827315

BOLT AND WASHER

Note: Torque Specs: 30-40 In/Lbs; 3.5-4.6 Nm

$

$

Currently unavailable

23

Homelite 0827303

SPRING, Governor

$

$

Currently unavailable
