21001 B - Toro 43cm Rear-Bagging Walk-Behind Mower (SN: 069000001 - 069999999) (1996) Handle Assembly Parts Diagram

43cm Rear-Bagging Walk-Behind Mower

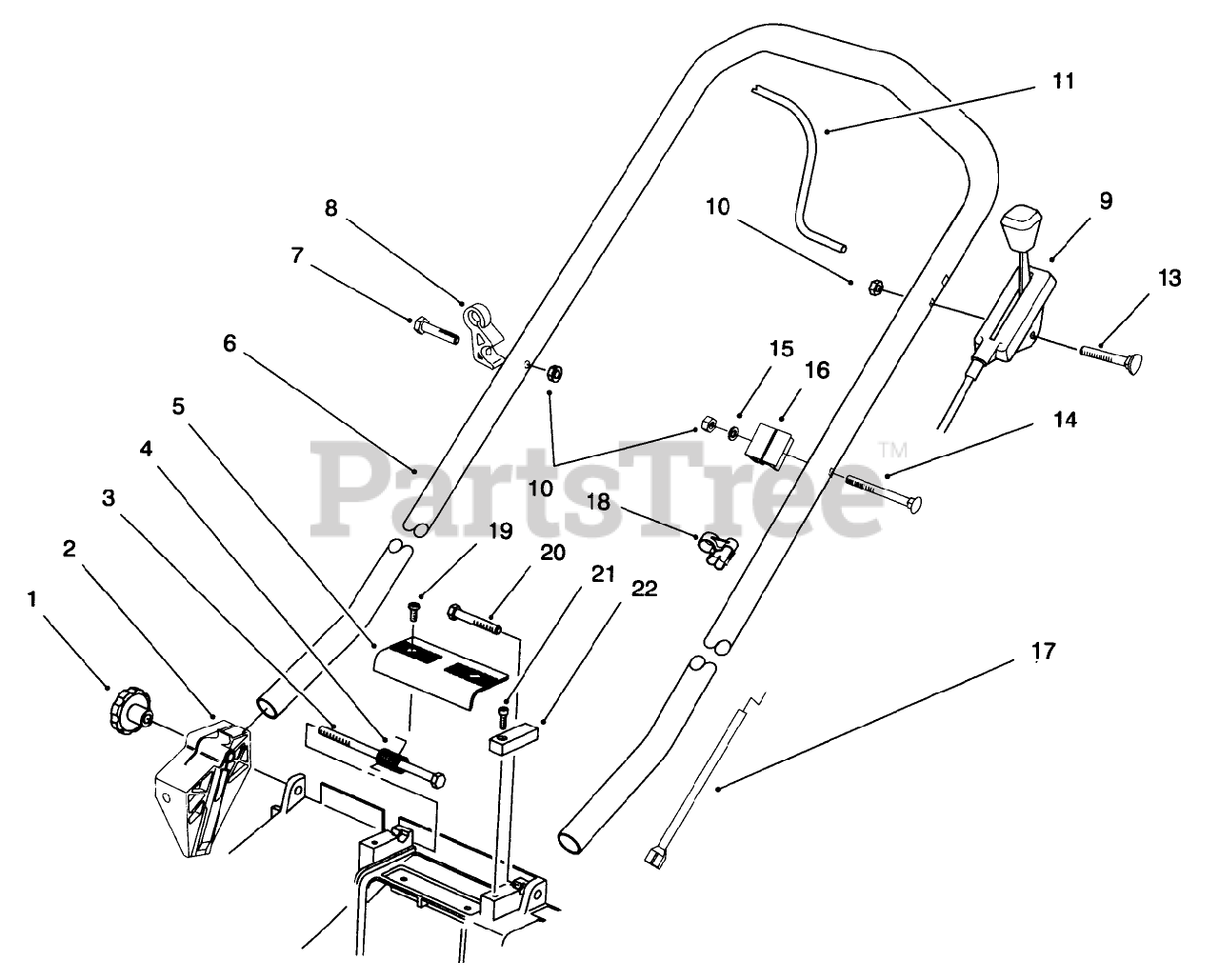

Handle Assembly Parts Diagram

  • Title

1

Toro 19-4050

KNOB

$18.99

$

Usually ships in 3-6 days

0

2

Toro 93-4082

Mount-Handle R.H.

Note: Obtain from Toro Europe N.V.

$

$

Not available

Toro 93-4083

Mount-Handle L.H
(Superseded to 99-1705)

Note: Obtain from Toro Europe N.V.

$

$

Not available

Toro 93-4083

Mount-Handle L.H
(Superseded to 99-1705)

Note: Not illustrated

$

$

Not available

3

Toro 93-4058

BOLT-LONG

Note: Obtain from Toro Europe N.V.

$16.99

$

Usually ships in 3-6 days

0

4

Toro 93-4057

SPRING-DOOR

Note: Obtain from Toro Europe N.V.

$

$

Not available

5

Toro 71-7860

GRIP-UPPER

$

$

Not available

6

Toro 94-4375

HANDLE*

$

$

Not available

7

Toro 321-52

DISCONTINUED

$

$

Not available

8

Toro 93-3772

GUIDE - ROPE

$

$

Not available

9

Toro 93-1118

CONTROL - THROTTLE

$134.99

$

Usually ships in 3-6 days

0

10

Toro 3296-73

NUT-LOCK, NI

$5.49

$

In Stock, Qty 14

0

11

Toro 94-4364

See Supercession: 95-4454-03
(Superseded to 95-4454-03)

$

$

Not available

13

Toro 321-48

SCREW-HH

$2.49

$

In Stock, only 2 left!

0

14

Toro 92-2270

SCREW-HANDLE

Note: Obtain from Toro Europe N.V.

$9.49

$

In Stock, only 2 left!

0

15

Toro 3256-1

WASHER-FLAT

$0.99

$

In Stock, Qty 12

0

16

Toro 46-6980

SUPPORT-CABLE

$18.99

$

In Stock, only 2 left!

0

17

Toro 93-1116

CABLE - BRAKE

$74.99

$

Usually ships in 3-6 days

0

18

Toro 93-4084

DISCONTINUED

Note: Obtain from Toro Europe N.V.

$

$

Not available

19

Toro 32144-97

SCREW-PPH, PLASTITE

$0.99

$

In Stock, only 3 left!

0

20

Toro 93-4060

DISCONTINUED

Note: Obtain from Toro Europe N.V.

$

$

Not available

21

Toro 93-4094

DISCONTINUED

Note: Obtain from Toro Europe N.V.

$

$

Not available

22

Toro 93-4056

DISCONTINUED

Note: Obtain from Toro Europe N.V.

$

$

Not available
