21001 B - Toro 43cm Rear-Bagging Walk-Behind Mower (SN: 069000001 - 069999999) (1996) REAR AXLE ASSEMBLY Parts Diagram

43cm Rear-Bagging Walk-Behind Mower

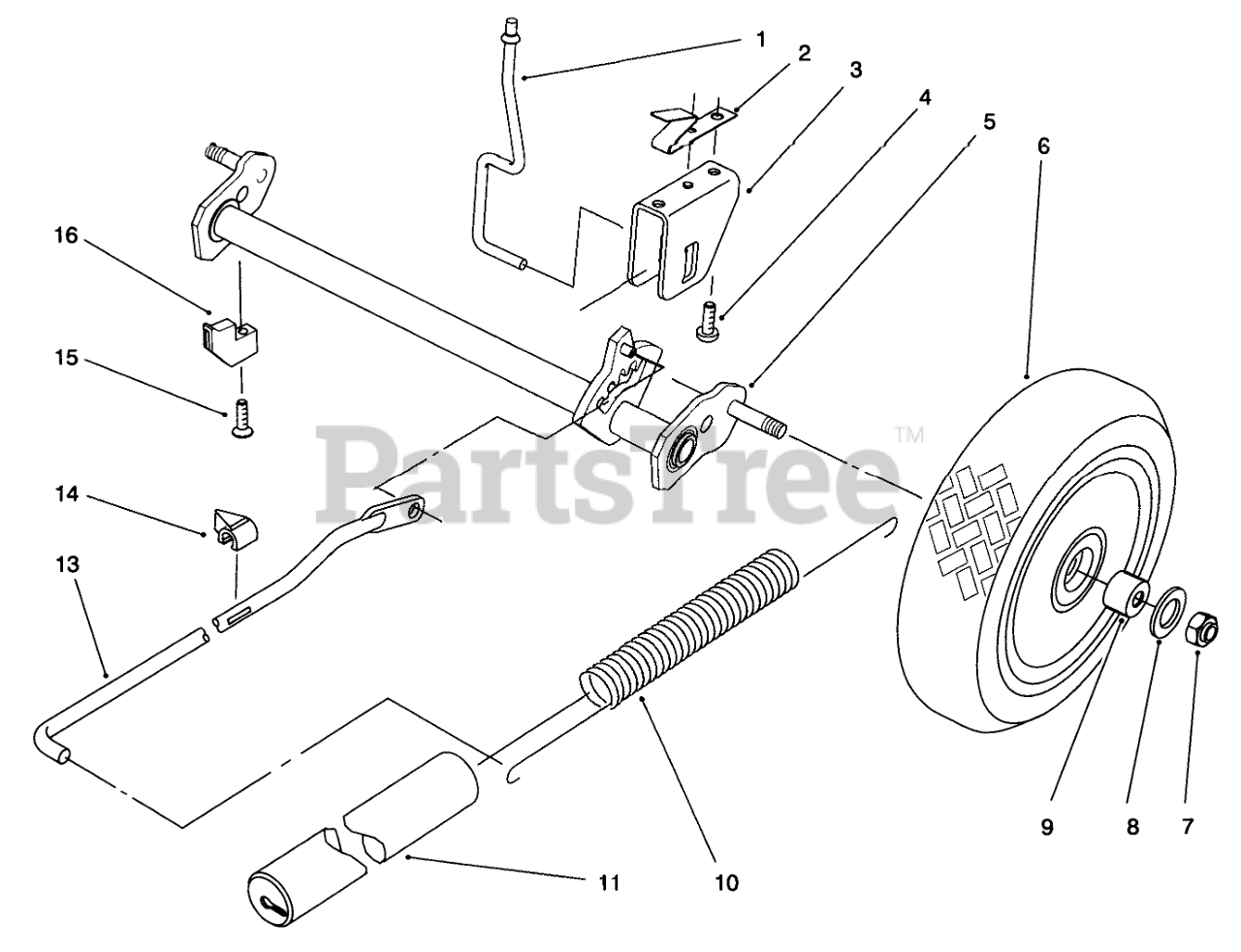

REAR AXLE ASSEMBLY Parts Diagram

  • Title

1

Toro 93-4061

Rod-Trigger
(Superseded to 98-3232)

Note: Obtain from Toro Europe N.V.

$

$

Not available

2

Toro 93-4062

SPRING-RETURN, TRIGGER

Note: Obtain from Toro Europe N.V.

$5.49

$

Usually ships in 3-6 days

0

3

Toro 93-4066

SADDLE-HEIGHT OF CUT

Note: Obtain from Toro Europe N.V.

$

$

Not available

4

Toro 93-4095

SCREW-RH

Note: Obtain from Toro Europe N.V.

$2.99

$

Usually ships in 3-6 days

0

5

Toro 93-4079

AXLE-REAR

Note: Obtain from Toro Europe N.V.

$93.99

$

Usually ships in 3-6 days

0

6

Toro 93-8492

WHEEL-REAR

Note: Obtain from Toro Europe N.V.

$52.99

$

In Stock, only 1 left!

0

7

Toro 93-4098

NUT-HH

Note: Obtain from Toro Europe N.V.

$2.99

$

Usually ships in 3-6 days

0

8

Toro 93-4097

WASHER-WHEEL

Note: Obtain from Toro Europe N.V.

$1.49

$

Usually ships in 3-6 days

0

9

Toro 93-7023

BUSHING

Note: Obtain from Toro Europe N.V.

$3.99

$

Usually ships in 3-6 days

0

10

Toro 71-7740

SPRING-COUNTERBALANCE

Note: Obtain from Toro Europe N.V.

$41.99

$

Usually ships in 3-6 days

0

11

Toro 71-8450

COVER-SPRING

$

$

Currently unavailable

13

Toro 93-4065

ROD-LINK

Note: Obtain from Toro Europe N.V.

$

$

Not available

14

Toro 71-7980

INDICATOR-HEIGHT OF CUT

Note: Obtain from Toro Europe N.V.

$8.49

$

Usually ships in 3-6 days

0

15

Toro 93-3793

SCREW-RETAINER

Note: Obtain from Toro Europe N.V.

$

$

Not available

16

Toro 93-4064

RETAINER - AXLE

Note: Obtain from Toro Europe N.V.

$

$

Not available
