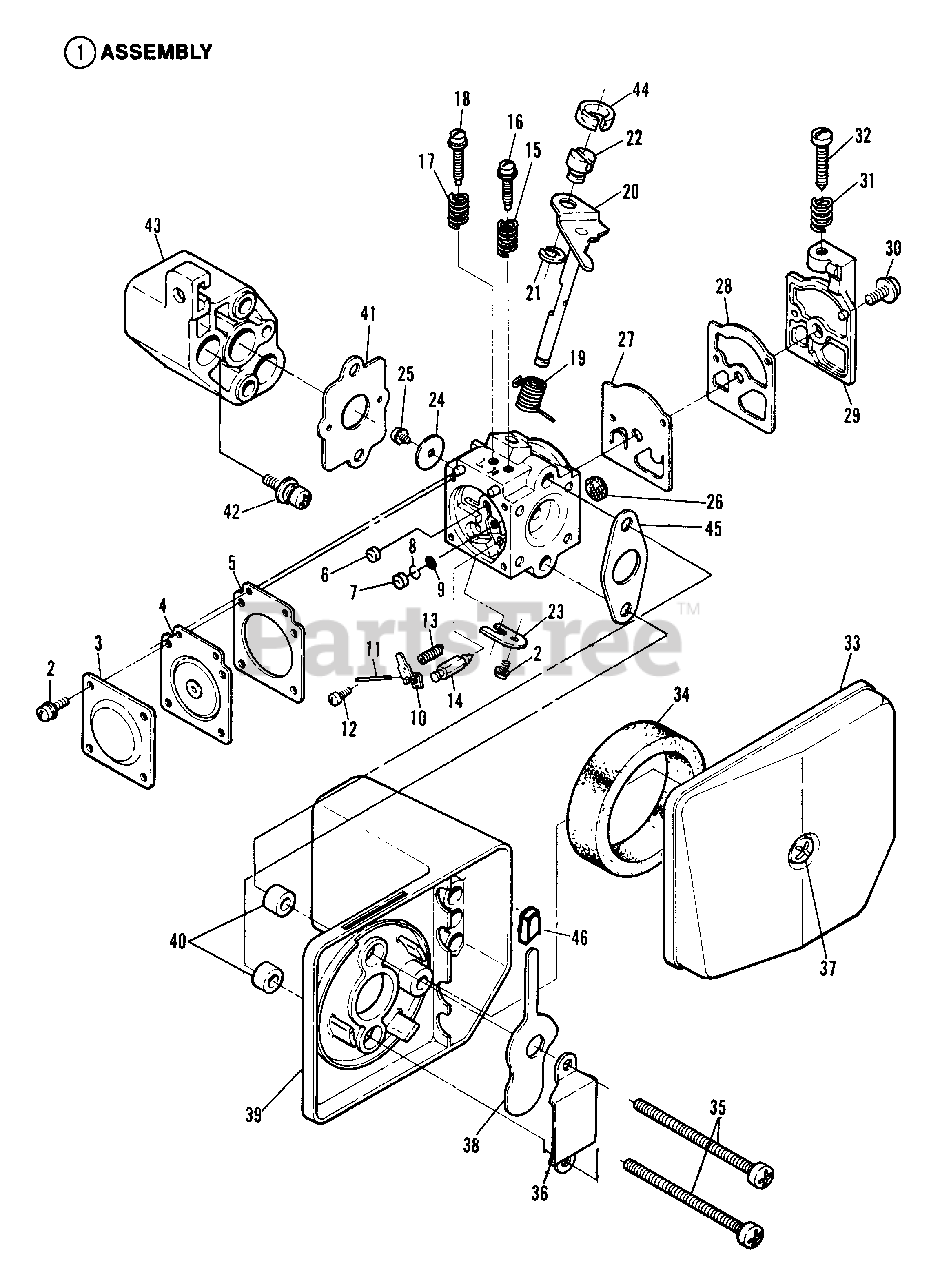

2100HHB (86378) - Snapper Blower Carburetor & Air Filter Parts Diagram

Blower

Carburetor & Air Filter Parts Diagram

  • Title

1

Snapper 7044547

CARBURETOR ASS'Y.

Note: (Includes Items 2 thru 32) Carb. No.

$

$

Not available

2

Snapper 7046127

SCREW, Cover

$

$

Currently unavailable

3

Snapper 7044588

COVER, Diaphragm

$

$

Currently unavailable

4

Snapper 7044566

DIAPHRAGM, Metering

Note: Was 46103, Included in Repair Kit, Carburetor, Major, P/N 4-4566;Included in Repair Kit, Carburetor, Minor, P/N 4-4567;Included in Gasket, Carburetor/Kit, Diaphragm, P/N 4-4568

$

$

Not available

5

Snapper 7044566

GASKET, Diaphragm

Note: was 44596, Included in Repair Kit, Carburetor, Major, P/N 4-4566;Included in Repair Kit, Carburetor, Minor, P/N 4-4567;Included in Gasket, Carburetor/Kit, Diaphragm, P/N 4-4568

$

$

Not available

6

Snapper 7044566

PLUG, Welch

Note: Was 46120, Included in Repair Kit, Carburetor, Major, P/N 4-4566

$

$

Not available

7

Snapper 7044566

PLUG, Welch

Note: Was 44585, Included in Repair Kit, Carburetor, Major, P/N 4-4566

$

$

Not available

8

Snapper 7044582

RING, Screen Retainer

Note: Was 44582, Included in Repair Kit, Carburetor, Major, P/N 4-4566;Included in Repair Kit, Carburetor, Minor, P/N 4-4567

$

$

Currently unavailable

9

Snapper 7044566

SCREEN, Check Valve

Note: Was 44581, Included in Repair Kit, Carburetor, Major, P/N 4-4566;Included in Repair Kit, Carburetor, Minor, P/N 4-4567

$

$

Not available

10

Snapper 7044566

LEVER, Metering

Note: Was 46105, Included in Repair Kit, Carburetor, Major, P/N 4-4566;Included in Repair Kit, Carburetor, Minor, P/N 4-4567

$

$

Not available

11

Snapper 46107

PIN, Lever

Note: Included in Repair Kit, Carburetor, Major, P/N 4-4566

$

$

Currently unavailable

12

Snapper 46106

SCREW, Lever Pin

Note: Included in Repair Kit, Carburetor, Major, P/N 4-4566

$

$

Currently unavailable

13

Snapper 7042238

SPRING, Lever

Note: Was 44587, Included in Repair Kit, Carburetor, Major, P/N 4-4566;Included in Repair Kit, Carburetor, Minor, P/N 4-4567

$

$

Currently unavailable

14

Snapper 7044566

VALVE, Inlet Needle

Note: Was 46110, Included in Repair Kit, Carburetor, Major, P/N 4-4566;Included in Repair Kit, Carburetor, Minor, P/N 4-4567

$

$

Not available

15

Snapper 46118

SPRING, High Speed Needle

Note: Included in Repair Kit, Carburetor, Major, P/N 4-4566

$

$

Currently unavailable

16

Snapper 7044566

NEEDLE, High Speed

Note: Was 44591, Included in Repair Kit, Carburetor, Major, P/N 4-4566

$

$

Not available

17

Snapper 46100

SPRING, Idle Needle

Note: Included in Repair Kit, Carburetor, Major, P/N 4-4566

$

$

Currently unavailable

18

Snapper 46101

NEEDLE,Idle

Note: Included in Repair Kit, Carburetor, Major, P/N 4-4566

$

$

Currently unavailable

19

Snapper 7046114

SPRING, Throttle Return

$

$

Currently unavailable

20

Snapper 7044592

SHAFT, Throttle

$

$

Currently unavailable

21

Snapper 7044594

CLIP

$

$

Currently unavailable

22

Snapper 7044593

SWIVEL

$

$

Currently unavailable

23

Snapper 7046126

CLIP, Throttle Shaft

$

$

Currently unavailable

24

Snapper 7044595

VALVE, Throttle

$

$

Currently unavailable

25

Snapper 42326

SCREW, Throttle

$

$

Currently unavailable

26

Snapper 7044566

SCREEN, Inlet

Note: Was 46095, Included in Repair Kit, Carburetor, Major, P/N 4-4566;Included in Repair Kit, Carburetor, Minor, P/N 4-4567

$

$

Not available

27

Snapper 7044566

DIAPHRAGM, Fuel Pump

Note: Was 44586, Included in Repair Kit, Carburetor, Major, P/N 4-4566;Included in Repair Kit, Carburetor, Minor, P/N 4-4567;Included in Gasket, Carburetor/Kit, Diaphragm, P/N 4-4568

$

$

Not available

28

Snapper 7044566

GASKET, Fuel Pump

Note: Was 46098, Included in Repair Kit, Carburetor, Major, P/N 4-4566;Included in Repair Kit, Carburetor, Minor, P/N 4-4567;Included in Gasket, Carburetor/Kit, Diaphragm, P/N 4-4568

$

$

Not available

29

Snapper 7044584

COVER, Fuel Pump

Note: Included in Pump Cover Kit, P/N 4-4580

$

$

Currently unavailable

30

Snapper 46097

SCREW, Pump Cover
(Superseded to 5046097B)

$142.99

$

Usually ships in 2-12 days

0

31

Snapper 7044590

SPRING, Idle Screw

Note: Included in Pump Cover Kit, P/N 4-4580

$

$

Currently unavailable

32

Snapper 44589

SCREW, Idle Adjusting
(Superseded to 5044589)

Note: Included in Pump Cover Kit, P/N 4-4580

$131.99

$

Usually ships in 2-12 days

0

33

Snapper 7044541

COVER, Air Cleaner

$

$

Not available

34

Snapper 7044542

FILTER, Air Cleaner

$

$

Not available

35

Snapper 7044539

SCREW, Carburetor Mounting

$

$

Not available

36

Snapper 7044543

PLATE

$

$

Currently unavailable

37

Snapper 7044549

SCREW & WASHER

Note: Was 44328

$1.99

$

In Stock, only 1 left!

0

38

Snapper 7044544

LEVER, Choke

$

$

Currently unavailable

39

Snapper 7044545

BASE

$

$

Not available

40

Snapper 7044546

SLEEVE, Choke Base

$

$

Currently unavailable

41

Snapper 7044505

GASKET, Carburetor
(Superseded to 7044505YP)

$2.99

$

Usually ships in 2-12 days

0

42

Snapper 7044549

SCREW, Insulator Mounting

$1.99

$

In Stock, only 1 left!

0

43

Snapper 7044550

INSULATOR, Carburetor

$

$

Not available

44

Snapper 7044548

CLIP

$

$

Currently unavailable

45

Snapper 7044578

GASKET, Choke Base Mounting
(Superseded to 7044578YP)

$2.99

$

Usually ships in 2-12 days

0

46

Snapper 7044597

COVER, Choke Lever
(Superseded to 7044597YP)

$3.49

$

Usually ships in 2-12 days

0

Snapper 7044566

REPAIR KIT, Carburetor, Major

Note: Includes Ref No. 4-18, 26-28

$

$

Not available

Snapper 7044567

REPAIR KIT, Carburetor, Minor

Note: Includes Ref No. 4, 5, 8, 9, 10, 13, 14, 26, 27, 28

$

$

Not available

Snapper 7044566

GASKET, Carburetor/KIT, Diaphragm

Note: Was 44568 (Includes Ref No. 4, 5, 27, 28)

$

$

Not available

Snapper 7044580

Pump Cover KIT

Note: Includes Ref No. 29, 31, 32

$

$

Currently unavailable
