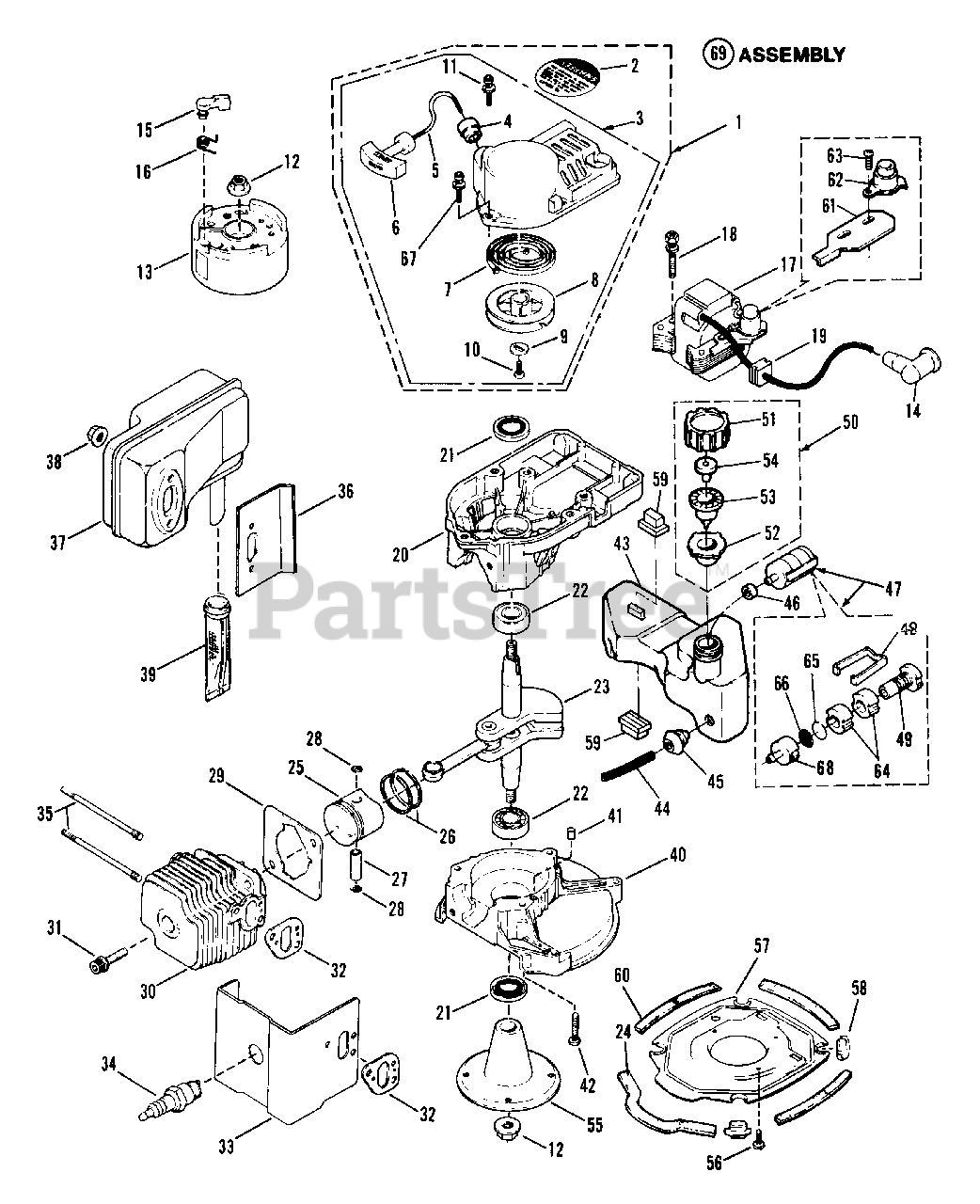

2100HHB (86378) - Snapper Blower Engine Components Parts Diagram

Blower

Engine Components Parts Diagram

  • Title

1

Snapper 7044502

RECOIL STARTER ASS'Y W/LABEL

Note: Was 51737 (lncludes items 2 & 3)

$

$

Currently unavailable

2

Snapper 44500

LABEL,Starting instruction

$3.99

$

Usually ships in 2-12 days

0

3

Snapper 7044502

RECOIL STARTER ASS'Y

Note: (lncludes items 4 thru 10)

$

$

Currently unavailable

4

Snapper 7044561

ROPE GUIDE

$

$

Currently unavailable

5

Snapper 7044377

ROPE, Starter

$

$

Currently unavailable

6

Snapper 7044115

KNOB, Starter

$

$

Currently unavailable

7

Snapper 7044376

SPRING, Recoil

$

$

Not available

8

Snapper 7044375

REEL

$

$

Not available

9

Snapper 7044374

WASHER

$

$

Currently unavailable

10

Snapper 7044373

SCREW

$

$

Currently unavailable

11

Snapper 7044549

SCREW & WASHER

Note: Was 44328

$1.99

$

In Stock, only 1 left!

0

12

Snapper 7044359

NUT, Conical

$

$

Currently unavailable

13

Snapper 7044560

ROTOR

$

$

Currently unavailable

14

Snapper 7044031

CAP, Plug

$

$

Currently unavailable

15

Snapper 7044432

PAWL, Starter

Note: Was 44558

$

$

Not available

16

Snapper 7044431

SPRING, Pawl

Note: Was 44559

$

$

Not available

17

Snapper 7044504

COIL,lgnition

Note: (lncludes items 61 & 63)

$

$

Not available

18

Snapper 7044306

SCREW

$

$

Currently unavailable

19

Snapper 7044557

GROMMET

$

$

Currently unavailable

20

Snapper 7044310

CASE, Starter

$

$

Currently unavailable

21

Snapper 7044013

SEAL, Oil
(Superseded to 7044013YP)

$10.99

$

Usually ships in 2-12 days

0

22

Snapper 7044309

BEARING, Ball

$

$

Currently unavailable

23

Snapper 7044553

CRANKSHAFT ASS'Y.

$

$

Currently unavailable

24

Snapper 7044531

SEAL, Engine Plate, Front

$

$

Not available

25

Snapper 7044405

PISTON
(Superseded to 7044405YP)

$51.99

$

Usually ships in 2-12 days

0

26

Snapper 7044404

RING, Piston
(Superseded to 7044404YP)

$7.49

$

Usually ships in 2-12 days

0

27

Snapper 7044406

PIN, Piston

$

$

Not available

28

Snapper 7044319

CLIP, Piston Pin

$

$

Not available

29

Snapper 7044317

GASKET, Cylinder
(Superseded to 7044317YP)

$3.49

$

Usually ships in 2-12 days

0

30

Snapper 7044403

CYLINDER

$

$

Currently unavailable

31

Snapper 7044316

BOLT, Flange

$

$

Currently unavailable

32

Snapper 7044327

GASKET, Carburetor Mounting
(Superseded to 7044327YP)

$2.99

$

Usually ships in 2-12 days

0

33

Snapper 7044506

SHIELD, Carburetor

$

$

Currently unavailable

34

SPARK PLUG (Champion CJ6)

$

$

Not available

35

Snapper 7044169

STUD, Muffler

Note: Was 44507

$

$

Currently unavailable

36

Snapper 7044508

SHIELD, Muffler

$

$

Not available

37

Snapper 7044510

MUFFLER

$

$

Currently unavailable

38

Snapper 44509

NUT, Muffler Stud

$

$

Currently unavailable

39

Snapper 44511

SPARK ARRESTOR

$

$

Currently unavailable

40

Snapper 7044512

CASE, Drive

$

$

Currently unavailable

41

Snapper 7044307

PIN, Dowel

$

$

Currently unavailable

42

Snapper 7044308

SCREW, M5 x 25mm

$

$

Currently unavailable

43

Snapper 7044513

FUEL TANK ASS'Y.
(Superseded to 7044513YP)

Note: (Includes Items 44 thru 54)

$55.99

$

Usually ships in 2-12 days

0

44

Snapper 7044514

LINE, Fuel

$

$

Not available

45

Snapper 7044515

GROMMET, Fuel Line

$

$

Not available

46

Snapper 7044575

CLIP, Fuel Line

$

$

Not available

47

Snapper 7044569

FILTER ASS'Y, Fuel

Note: (Includes items 48, 49, 64, 65, 66, 68)

$

$

Not available

48

Snapper 7044570

CLIP

$

$

Currently unavailable

49

Snapper 7044571

SLEEVE, Gov

$

$

Currently unavailable

50

Snapper 7044563

CAP ASS'Y,

Note: (Includes Items 51 thru 54)

$

$

Not available

51

Snapper 7044566

CAP, Fuel

$

$

Not available

52

Snapper 7044150

GASKET

Note: Was 44135

$

$

Not available

53

Snapper 7044134

HOLDER

$

$

Currently unavailable

54

Snapper 7044133

VALVE, Breather

$

$

Not available

55

Snapper 7044516

MOUNT, Fan-Wheel

$

$

Currently unavailable

56

Snapper 7044517

SCREW, M5x12mm PHCR
(Superseded to 7044517YP)

$3.49

$

Usually ships in 2-12 days

0

57

Snapper 7044518

MOUNTING PLATE, Engine

$

$

Currently unavailable

58

Snapper 7044519

DAMPER,Eng.Mtg Plate

$

$

Not available

59

Snapper 7044382

PAD, Fuel Tank

$

$

Not available

60

Snapper 7044520

SEAL, Eng. Mtg. Plate

$

$

Not available

61

Snapper 7044556

BRACKET

$

$

Currently unavailable

62

Snapper 7044555

SWITCH, Stop

$

$

Not available

63

Snapper 7044554

SCREW

$

$

Currently unavailable

64

Snapper 7044572

FELT

$

$

Currently unavailable

65

Snapper 7044573

R ING

$

$

Currently unavailable

66

Snapper 7044574

SCREEN

$

$

Currently unavailable

67

Snapper 7044576

SCREW

$

$

Currently unavailable

68

Snapper 7044577

BODY, Fuel Filter

$

$

Not available

69

ENGINE, COMPLETE

Note: 44501 (lncludes items 2 thru 42 & 61, 62, 63)

$

$

Not available
