21012 - Toro 43cm Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) ENGINE BRIGGS & STRATTON MODEL 127802-1761-E1 Parts Diagram

43cm Recycler Walk-Behind Mower

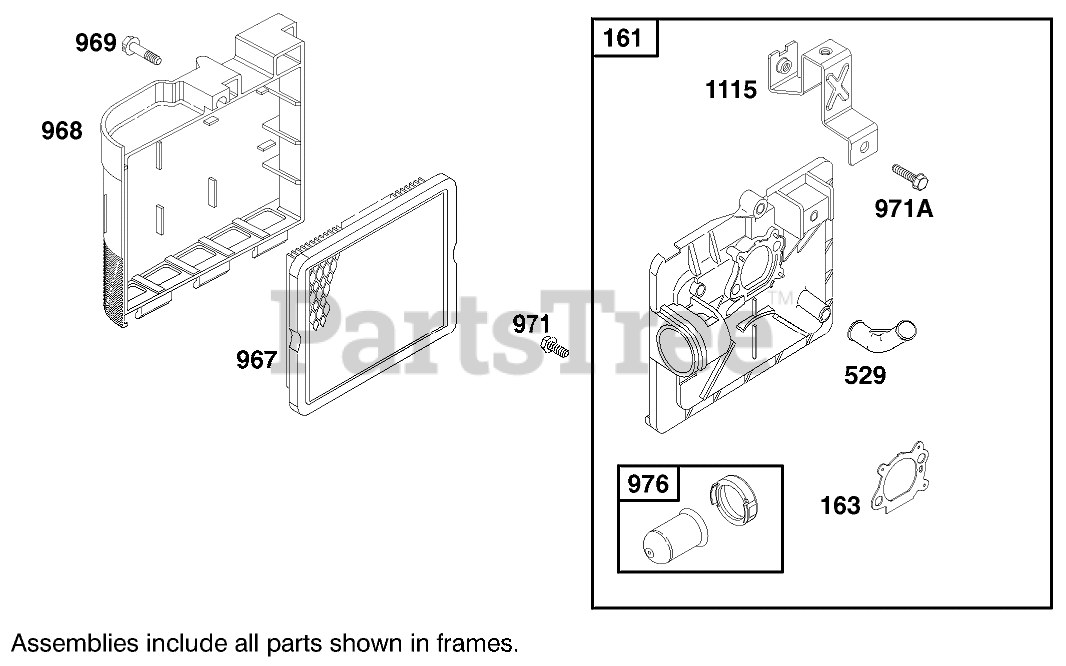

ENGINE BRIGGS & STRATTON MODEL 127802-1761-E1 Parts Diagram

  • Title

29

Briggs & Stratton 499424

Rod-Connecting
(Superseded to 590406)

$87.99

$

In Stock, only 1 left!

0

161

Briggs & Stratton 496116

Base-Primer, Air Cleaner
(Superseded to 795259)

$32.99

$

In Stock, Qty 11

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Gasket Set-Part No. 498261.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Carburetor Kit-Part No. 498260.

$3.49

$

In Stock, Qty 20+

0

163

Briggs & Stratton 272653

Gasket-Cleaner, Air
(Superseded to 795629)

Note: Included in Gasket Set-Part No. 497316.

$3.49

$

In Stock, Qty 20+

0

529

Briggs & Stratton 281299

Grommet
(Superseded to 691923)

$9.49

$

In Stock, only 4 left!

0

967

Briggs & Stratton 491588

Filter-Air Cleaner, Cartridge
(Superseded to 491588S)

$6.49

$

In Stock, Qty 20+

0

968

Briggs & Stratton 281340

Air Cleaner Cover
(Superseded to 692298)

$27.99

$

In Stock, only 1 left!

0

969

Briggs & Stratton 94872

Screw(A/C Cover)
(Superseded to 690670)

$5.99

$

In Stock, only 3 left!

0

971

Briggs & Stratton 94873

Screw-Hex.
(Superseded to 692523)

$7.49

$

In Stock, Qty 10

0

971A

Briggs & Stratton 94749

Screw-Hex.
(Superseded to 691669)

$3.99

$

In Stock, only 1 left!

0

976

Briggs & Stratton 496115

CarburetorPrimer
(Superseded to 694395)

$4.49

$

In Stock, Qty 20+

0

1115

Briggs & Stratton 224815

Strap-Bracket
(Superseded to 795259)

$32.99

$

In Stock, Qty 11

0
