21022 - Toro 40cm Recycler Walk-Behind Mower (SN: 220000001 - 220999999) (2002) CHASSIS PARTS MODEL-NO. 21020, 21022 Parts Diagram

40cm Recycler Walk-Behind Mower

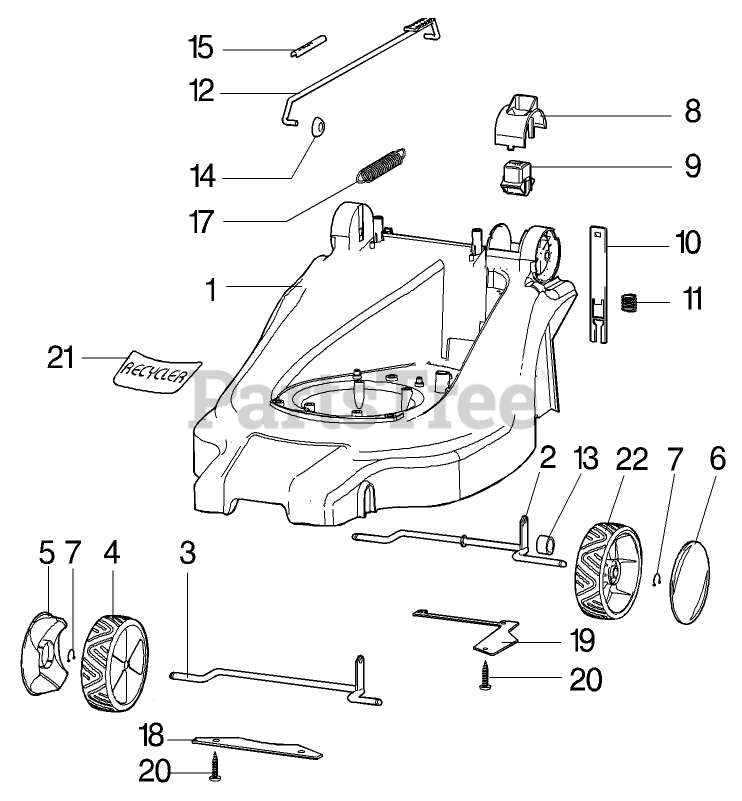

CHASSIS PARTS MODEL-NO. 21020, 21022 Parts Diagram

  • Title

1

Toro 95-6749

Housing
(Superseded to 95-6794)

$

$

Not available

2

Toro 95-6737

AXLE-REAR

$

$

Not available

3

Toro 95-6736

AXLE-FRONT

$

$

Not available

4

Toro 95-6665

Wheel Assy. (incl. Ref. #5 & #7)

$

$

Not available

5

Toro 95-6543

COVER-WHEEL

$4.49

$

Usually ships in 3-6 days

0

6

Toro 95-6716

Cover-Wheel

$

$

Not available

7

Toro 95-6544

Clamp-Spring, Wheel

$

$

Not available

8

Toro 95-6563

COVER - KNOB

$

$

Not available

9

Toro 95-6562

Knob-HOC

$

$

Not available

10

Toro 95-6526

Latch-HOC

$

$

Not available

11

Toro 95-6564

Spring-HOC

$

$

Not available

12

Toro 95-6750

Rod-HOC (inl.)

$

$

Currently unavailable

13

Toro 95-6741

SPACER

$

$

Not available

14

Toro 95-6565

Nut-Push

$

$

Not available

15

Toro 65-6709

DISCONTINUED NEVER USED

$

$

Not available

17

Toro 95-6525

Spring-Balance, HOC

$

$

Not available

18

Toro 95-6670

Plate-Axle, Front

$

$

Not available

19

Toro 95-6667

Plate-Axle, Rear

$

$

Not available

20

Toro 95-6560

SCREW-BUTTON HEAD, TORX

$

$

Not available

21

Toro 95-6527

DECAL-RECYCLER

$

$

Not available

22

Toro 95-6666

Smartwheel Assy. (incl. Ref. 6 & 7)

$

$

Not available
