21022 - Toro 40cm Recycler Walk-Behind Mower (SN: 240000001 - 240999999) (2004) Motor and Blade Assembly Parts Diagram

40cm Recycler Walk-Behind Mower

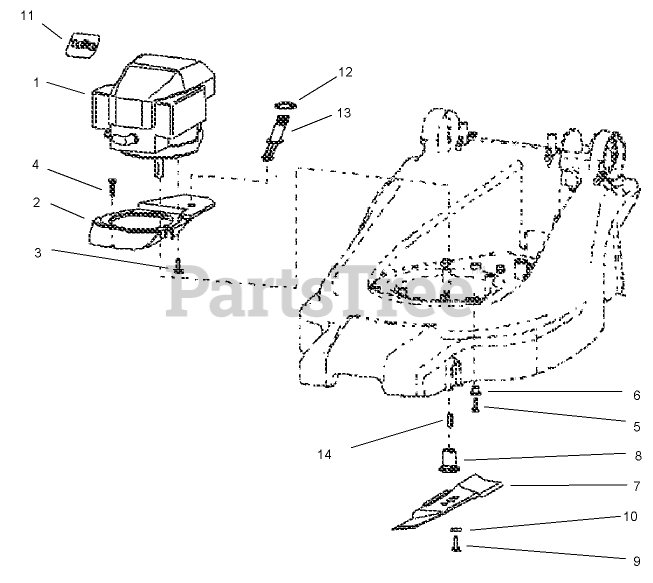

Motor and Blade Assembly Parts Diagram

  • Title

1

Toro 95-6905

Engine-Briggs and Stratton, Q45

$

$

Currently unavailable

2

Toro 95-6832

Mount-Adapter-Engine

$

$

Currently unavailable

3

Toro 92-1648

See Supercession: 95-1727
(Superseded to 95-1727)

$2.99

$

In Stock, Qty 10

0

4

Toro 95-6732

DISCONTINUED

$

$

Not available

5

Toro 95-6689

DISCONTINUED

$

$

Not available

6

Toro 95-6705

Distance

$

$

Not available

7

Toro 95-6583

DISCONTINUED

$

$

Not available

8

Toro 95-6792

DISCONTINUED

$

$

Not available

9

Toro 95-6728

SCREW-HH

$

$

Not available

10

Toro 95-6727

WASHER-SPRING

$

$

Not available

11

Toro 92-2289

See Supercession: 98-3206
(Superseded to 98-3206)

$2.49

$

In Stock, only 2 left!

0

12

Toro 46-6290

O-RING

$2.99

$

In Stock, only 2 left!

0

13

Toro 95-6537

DISCONTINUED

$

$

Not available

14

Toro 95-6787

Parallel-Key

$

$

Currently unavailable
