21027 - Toro 43cm Emotion Walk-Behind Mower (SN: 280002001 - 280999999) (2008) ENGINE ASSEMBLY Parts Diagram

43cm Emotion Walk-Behind Mower

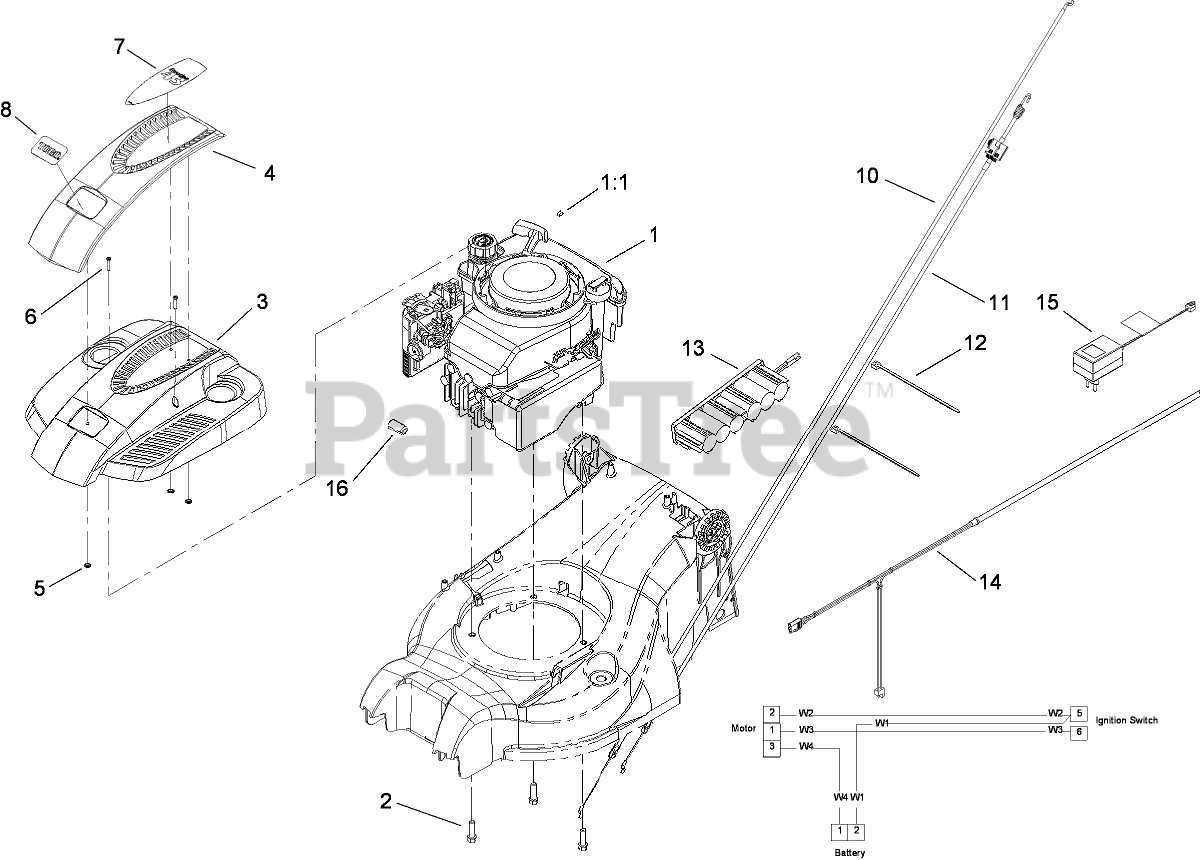

ENGINE ASSEMBLY Parts Diagram

  • Title
1

ENGINE-BRIGGS AND STRATTON, 122T07-2058-B1

Note: Not serviced separately

$

$

Not available

1

ENGINE-BRIGGS AND STRATTON, 122T07-2058-B1

Note: Obtain parts from www.briggsandstratton.com

$

$

Not available

1:1

Toro 2210-316

STOP-ROPE

$7.99

$

Usually ships in 3-6 days

0

2

Toro 95-1727

SCREW-TAPTITE

$2.99

$

In Stock, Qty 20+

0

3

Toro 110-9156

SHROUD-ENGINE

$

$

Currently unavailable

4

Toro 110-9157

COVER-SHROUD

$

$

Currently unavailable

5

Toro 110-9350

CLIP-PUSH

$

$

Not available

6

Toro 93-0231

SCREW-PPH

$0.99

$

In Stock, Qty 20+

0

7

$

$

Currently unavailable

8

$

$

Not available

10

Toro 110-9324

CABLE-BRAKE

$

$

Not available

11

Toro 110-9326

CABLE-TRACTION

$

$

Not available

12

Toro 115-3113

TIE-CABLE

$

$

Currently unavailable

13

Toro 99-5296

BATTERY

$

$

Not available

14

Toro 110-9286

HARNESS-WIRING

$

$

Currently unavailable

15

Toro 98-2391

CHARGER-EUROPEAN, 12V DC

$60.99

$

Usually ships in 3-6 days

0

16

Toro 112-1540

FERRITE-SNAP ON

$23.99

$

Usually ships in 3-6 days

0
