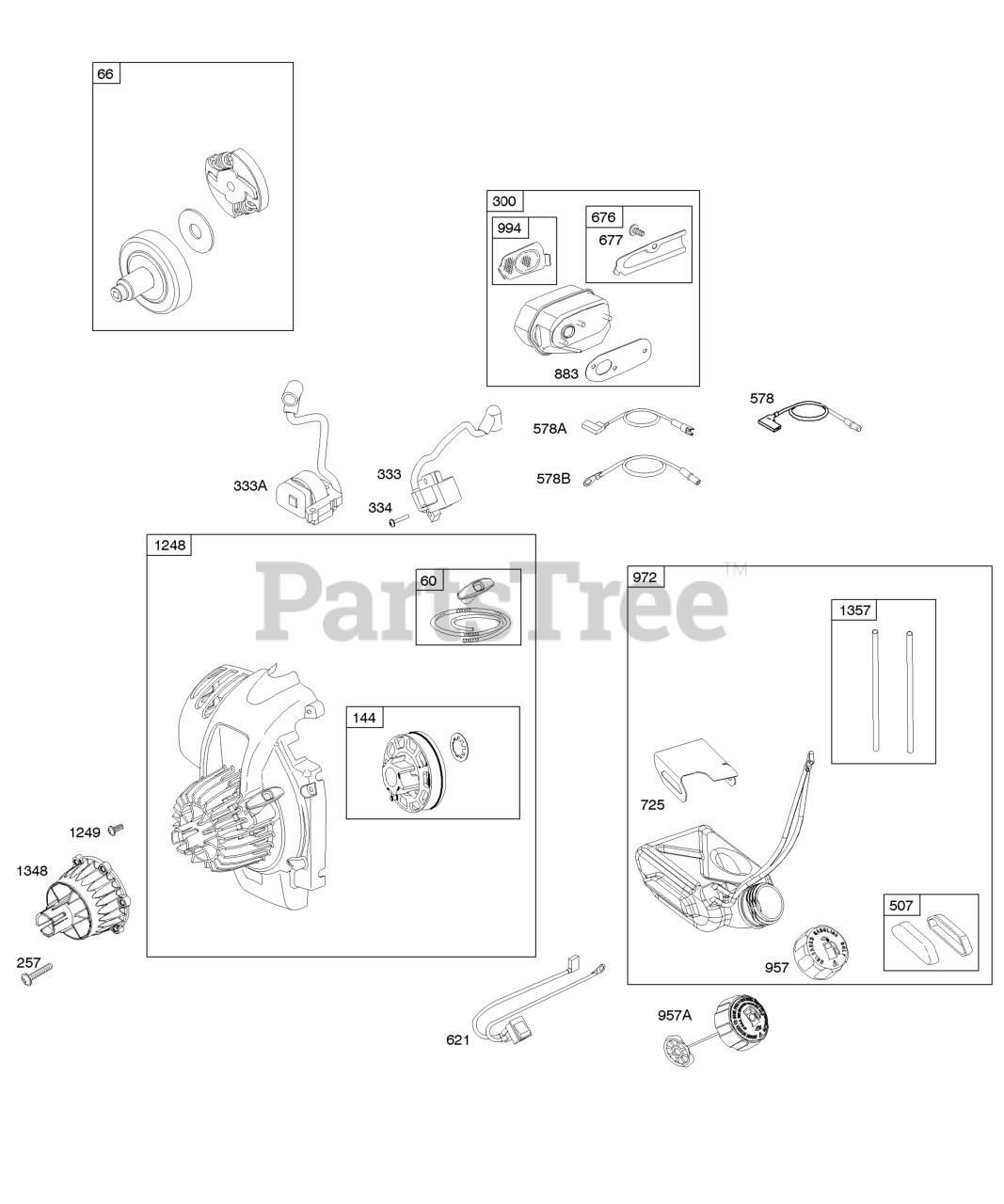

21032-0562-E1 - Briggs & Stratton Horizontal Engine Blower Housing/Shrouds, Fuel Tank, Ignition, Muffler, Rewind Parts Diagram

Horizontal Engine

Blower Housing/Shrouds, Fuel Tank, Ignition, Muffler, Rewind Parts Diagram

  • Title

60

Briggs & Stratton 699944

Grip-Starter Rope

Note: (Includes Starter Rope)

$6.49

$

In Stock, only 2 left!

0

66

Briggs & Stratton 699871

Clutch-Starter

$60.99

$

Usually ships in 2-12 days

0

144

Briggs & Stratton 791499

Pulley/Spring Assembly

$16.99

$

In Stock, only 2 left!

0

257

Briggs & Stratton 696895

Screw

Note: (Starter Clutch)

$3.99

$

Usually ships in 2-12 days

0

300

Briggs & Stratton 696874

Muffler

$49.99

$

Usually ships in 2-12 days

0

333

Briggs & Stratton 696877

Armature-Magneto
(Superseded to 699875)

Note: (Blue)

$74.99

$

Usually ships in 2-12 days

0

333A

Briggs & Stratton 699875

Armature-Magneto

Note: (Pink)(Rev Limiting)

$74.99

$

Usually ships in 2-12 days

0

334

Briggs & Stratton 696892

Screw

Note: (Magneto Armature)

$2.99

$

Usually ships in 2-12 days

0

507

Briggs & Stratton 696872

Insulator

$11.99

$

Usually ships in 2-12 days

0

578

Briggs & Stratton 792474

Wire Assembly

$10.99

$

Usually ships in 2-12 days

0

578A

Briggs & Stratton 699873

Wire Assembly

$8.99

$

Usually ships in 2-12 days

0

578B

Briggs & Stratton 699874

Wire Assembly

$9.99

$

Usually ships in 2-12 days

0

621

Briggs & Stratton 698243

Switch-Stop

$18.99

$

Usually ships in 2-12 days

0

676

Briggs & Stratton 697039

Deflector-Muffler

$12.99

$

Usually ships in 2-12 days

0

677

Briggs & Stratton 697040

Screw

Note: (Muffler Deflector)

$3.99

$

Usually ships in 2-12 days

0

725

Briggs & Stratton 696922

Shield-Heat

$5.49

$

Usually ships in 2-12 days

0

883

Briggs & Stratton 697035

Gasket-Exhaust

$7.99

$

Usually ships in 2-12 days

0

957

Briggs & Stratton 696921

Cap-Fuel Tank

Note: (Plastic)

$

$

Not available

972

Briggs & Stratton 696919

Tank-Fuel

Note: (Plastic)

$70.99

$

Usually ships in 2-12 days

0

994

Briggs & Stratton 697038

Arrestor-Spark

$18.99

$

Usually ships in 2-12 days

0

1248

Briggs & Stratton 698050

Blower Housing/Rewind

$128.99

$

Usually ships in 2-12 days

0

1249

Briggs & Stratton 698031

Screw

Note: (Blower Housing/Rewind)

$2.99

$

Usually ships in 2-12 days

0

1348

Briggs & Stratton 699888

Cover-Clutch

$21.99

$

Usually ships in 2-12 days

0

1357

Briggs & Stratton 699876

Sleeve-Fuel Line

$7.99

$

Usually ships in 2-12 days

0
