21050 BE - Toro 43cm Recycler Walk-Behind Mower, Electric (SN: 069000001 - 069999999) (1996)

43cm Recycler Walk-Behind Mower, Electric

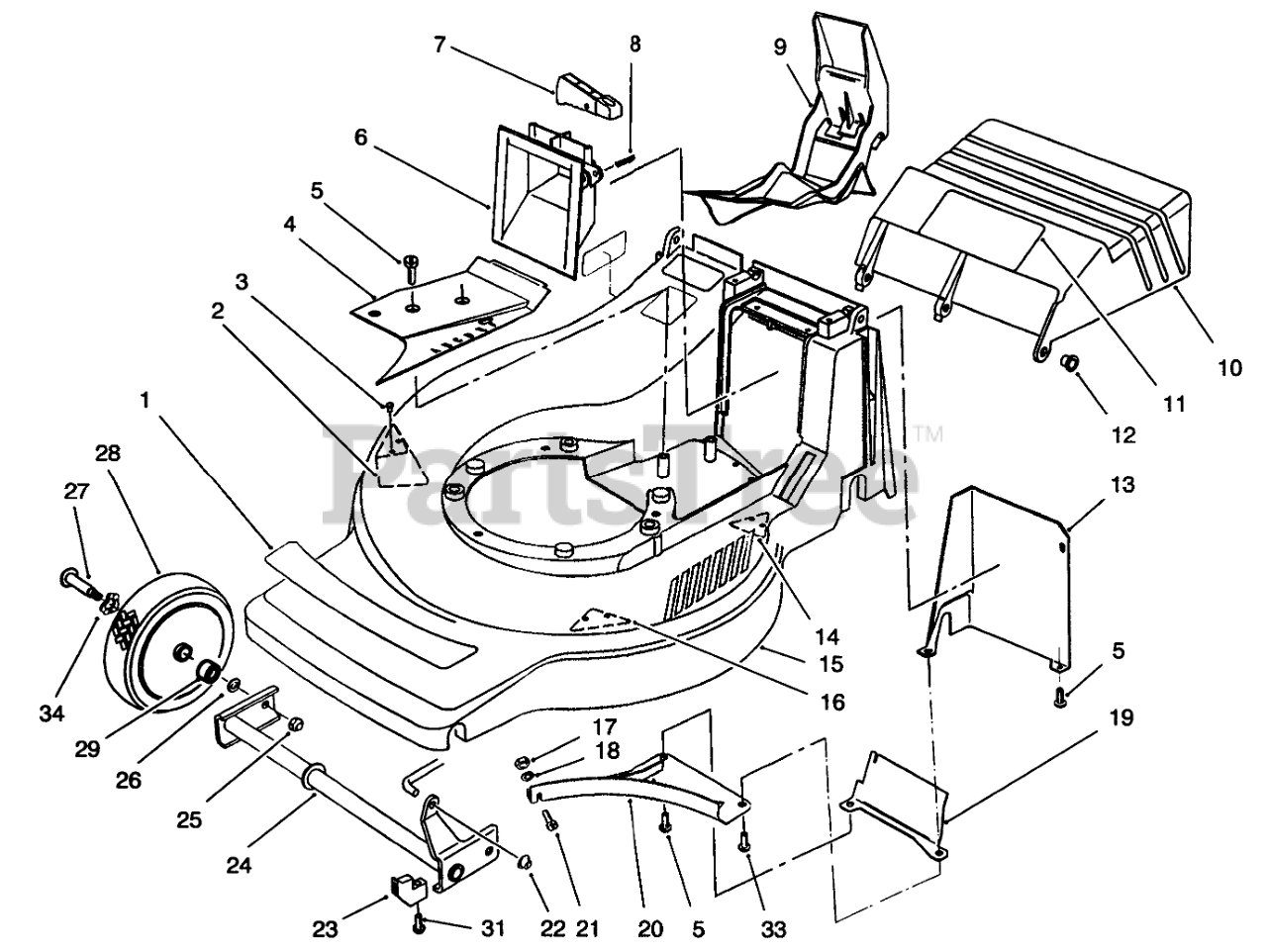

21050 BE - Toro 43cm Recycler Walk-Behind Mower, Electric (SN: 069000001 - 069999999) (1996) > Parts Diagrams (6) > DECK ASSEMBLY

  • Title
93-4351

1

DECAL - DECK

Part# 93-4351

OEM Warranty Repair Part for Toro

Currently unavailable

93-3730

2

KICKER

Part# 93-3730

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.04

32144-111

3

SCREW-PPH

Part# 32144-111

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $0.67

93-3782

4

COVER - BELT

Part# 93-3782

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $7.65

93-4095

5

SCREW-RH

Part# 93-4095

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.91

71-7870

6

GRIP - LOWER

Part# 71-7870

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $19.31

71-7930

7

TRIGGER - HOC

Part# 71-7930

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $6.66

3284-5

8

PIN-SPIRAL

Part# 3284-5

OEM Warranty Repair Part for Toro

Not available

93-3790

9

PLUG

Part# 93-3790

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $56.65

93-4055

10

Door-Discharge

Part# 93-4055

OEM Warranty Repair Part for Toro

Currently unavailable

94-9163

11

DECAL - DANGER

Part# 94-9163

OEM Warranty Repair Part for Toro

Not available

93-3794

12

BUSHING-DOOR

Part# 93-3794

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $4.33

93-3781

13

COVER - SHIELD

Part# 93-3781

OEM Warranty Repair Part for Toro

Currently unavailable

93-3750

14

KICKER

Part# 93-3750

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.04

16-8959

15

Housing Assembly (Incl. Ref. # 2,3,14,16)

Part# 16-8959

OEM Warranty Repair Part for Toro

Not available

93-3740

16

KICKER

Part# 93-3740

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $10.04

3296-2

17

NUT-LOCK, NI

Part# 3296-2

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.24

3256-21

18

WASHER-FLAT

Part# 3256-21

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.18

93-4110

19

BAFFLE-BAGGER, REAR

Part# 93-4110

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $9.21

93-3720

20

BAFFLE

Part# 93-3720

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $36.42

3250-13

21

SCREW-PPH

Part# 3250-13

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.29

32112-11

22

NUT-PUSH

Part# 32112-11

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.11

93-4064

23

RETAINER - AXLE

Part# 93-4064

OEM Warranty Repair Part for Toro

Not available

93-4080

24

AXLE-FRONT

Part# 93-4080

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $50.88

3296-6

25

NUT-LOCK

Part# 3296-6

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $1.24

40-1940

26

WASHER

Part# 40-1940

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $2.23

27-6231

27

WHEEL BOLT

Part# 27-6231

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 1 business day

Your price: $3.34

93-4081

28

WHEEL-FRONT

Part# 93-4081

OEM Warranty Repair Part for Toro

Currently unavailable

93-7024

29

BUSHING

Part# 93-7024

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.46

93-3793

31

SCREW-RETAINER

Part# 93-3793

OEM Warranty Repair Part for Toro

Not available

94-1864

33

SCREW-BAFFLE

Part# 94-1864

OEM Warranty Repair Part for Toro

Not available

94-6722

34

WASHER-WAVE

Part# 94-6722

OEM Warranty Repair Part for Toro

Currently unavailable
