21050 BE - Toro 43cm Recycler Walk-Behind Mower, Electric (SN: 069000001 - 069999999) (1996)

43cm Recycler Walk-Behind Mower, Electric

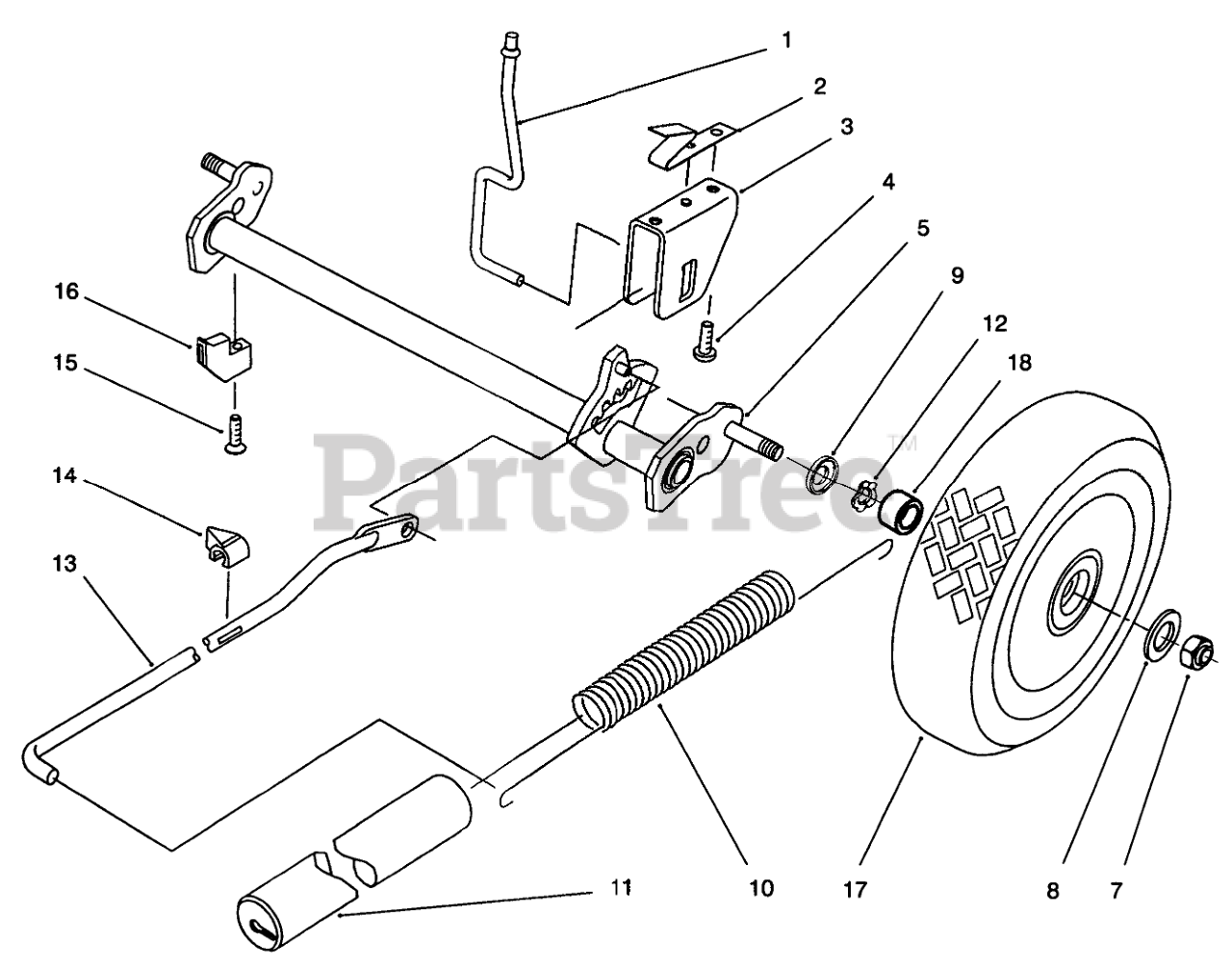

21050 BE - Toro 43cm Recycler Walk-Behind Mower, Electric (SN: 069000001 - 069999999) (1996) > Parts Diagrams (6) > WHEEL AND AXLE ASSEMBLY

  • Title
93-4061

1

Rod-Trigger

Part# 93-4061

OEM Warranty Repair Part for Toro

Currently unavailable

93-4062

2

SPRING-RETURN, TRIGGER

Part# 93-4062

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $3.58

93-4066

3

SADDLE-HEIGHT OF CUT

Part# 93-4066

OEM Warranty Repair Part for Toro

Not available

93-4095

4

SCREW-RH

Part# 93-4095

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.91

93-4079

5

AXLE-REAR

Part# 93-4079

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $63.38

93-8492

WHEEL-REAR

Part# 93-8492

Note: Not illustrated

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $35.31

93-4098

7

NUT-HH

Part# 93-4098

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $1.83

93-4097

8

WASHER-WHEEL

Part# 93-4097

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $0.72

94-6723

9

CAP-AXLE, REAR

Part# 94-6723

OEM Warranty Repair Part for Toro

Not available

71-7740

10

SPRING-COUNTERBALANCE

Part# 71-7740

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $27.93

71-8450

11

COVER-SPRING

Part# 71-8450

OEM Warranty Repair Part for Toro

Currently unavailable

94-6722

12

WASHER-WAVE

Part# 94-6722

OEM Warranty Repair Part for Toro

Currently unavailable

93-4065

13

ROD-LINK

Part# 93-4065

OEM Warranty Repair Part for Toro

Not available

71-7980

14

INDICATOR-HEIGHT OF CUT

Part# 71-7980

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $5.67

93-3793

15

SCREW-RETAINER

Part# 93-3793

OEM Warranty Repair Part for Toro

Not available

93-4064

16

RETAINER - AXLE

Part# 93-4064

OEM Warranty Repair Part for Toro

Not available

94-3313

17

WHEEL-SMART, REAR

Part# 94-3313

OEM Warranty Repair Part for Toro

Not available

93-7023

18

BUSHING

Part# 93-7023

OEM Warranty Repair Part for Toro

Usually leaves our warehouse in 5 to 8 business days

Your price: $2.48
