2105A (811-5172) - Grass Handler Walk-Behind Mower (1988) (J.C. Penney) Parts Parts Diagram

Walk-Behind Mower

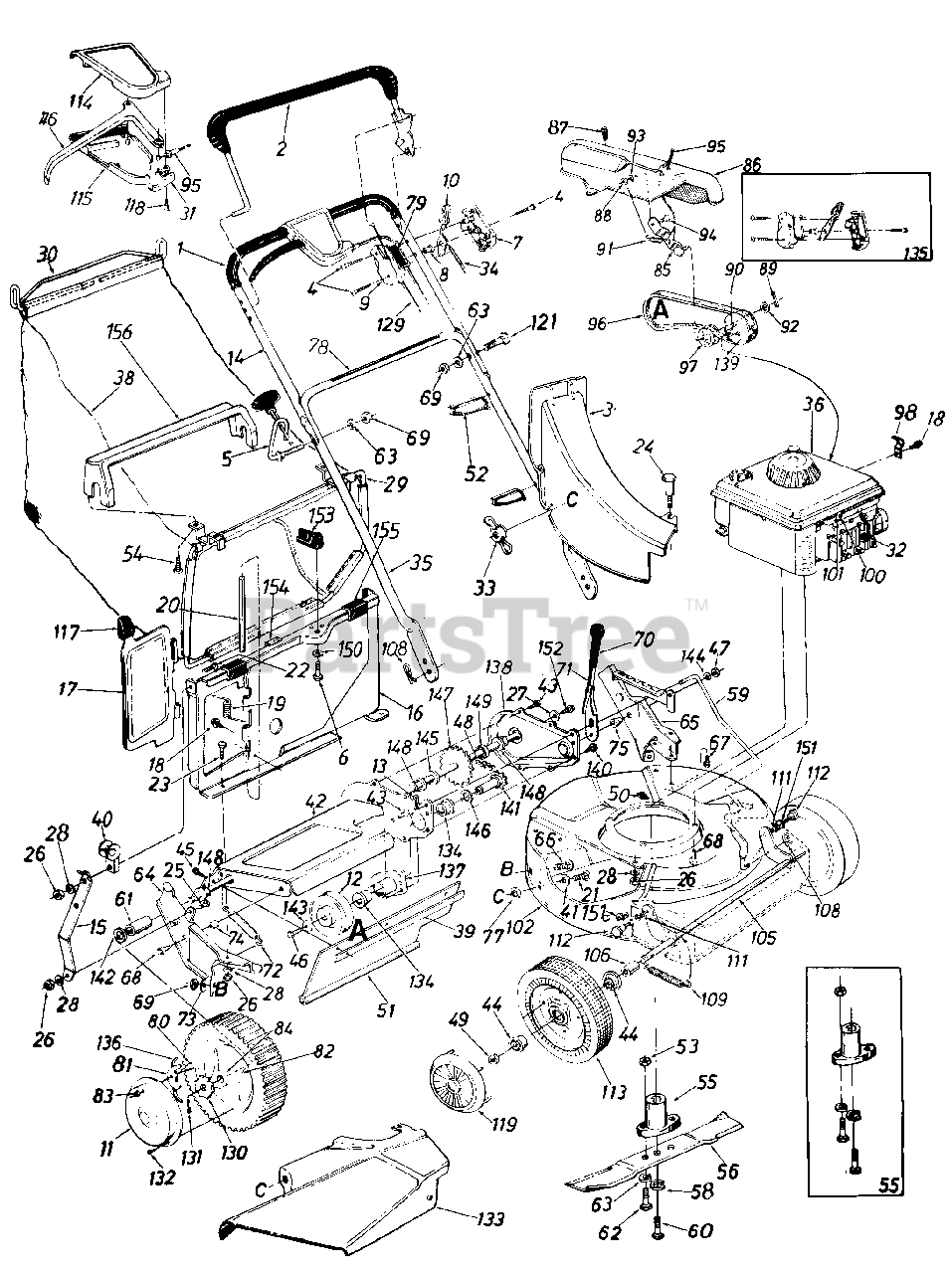

Parts Parts Diagram

  • Title

1

MTD 718-0145

Grip

$

$

Currently unavailable

2

MTD 731-0609

Control Handle Assembly

$

$

Not available

3

MTD 731-0733

Top Discharge Chute Assembly

$

$

Not available

4

MTD 710-0796

Truss Machine Screw #12 x 1.5 "

$5.49

$

In Stock, Qty 6

0

5

MTD 710-0842

Rope Guide Bolt

$

$

Not available

6

MTD 710-0875

Hex Tap Screw 1/4-20 x 75 "

$3.99

$

In Stock, only 2 left!

0

7

MTD 731-0817

Control Panel Half

$

$

Not available

8

MTD 731-0524

Control Disc Pin

$

$

Not available

9

MTD 731-0816

Clutch Panel Half

$

$

Not available

10

MTD 731-0528

Throttle Control Lever
(Superseded to 931-0972)

$8.99

$

In Stock, Qty 14

0

11

MTD 10647

Hub Cap

Note: (Rear)

$

$

Not available

12

MTD 756-0459

1/2" V Pulley

$

$

Not available

13

MTD 714-0507

Cotter Pin 3/32" Diameter x 75"*

$4.49

$

Usually ships in 3-6 days

0

14

MTD 749-0437

Upper Handle

$

$

Currently unavailable

15

MTD 16129

Panel Support Bracket
(Superseded to 16129A-0637)

$10.99

$

Usually ships in 3-6 days

0

16

MTD 17196

Top Catcher Panel Assembly

$

$

Not available

17

MTD 17095

Top Door

$

$

Not available

18

MTD 710-0429

Hex B-Tap Screw #10 x .38 "
(Superseded to 910-0429)

$3.49

$

Usually ships in 3-6 days

0

19

MTD 732-0483

Torsion Spring
(Superseded to 732-0483A)

$9.99

$

Usually ships in 3-6 days

0

20

MTD 747-0514

Pivot Pin

$

$

Not available

21

MTD 710-0134

Carriage Bolt 1/4-20 x .62 "*

$3.99

$

In Stock, Qty 20+

0

22

MTD 710-0255

Truss Machine Screw 1/4-20 x 3/4 "
(Superseded to 710-0924)

$4.49

$

In Stock, Qty 20+

0

23

MTD 710-0289

Hex Bolt 1/4-20 x .50"*
(Superseded to 910-0289)

$3.49

$

Usually ships in 3-6 days

0

24

MTD 738-0704

Shoulder Bolt

$16.99

$

Usually ships in 3-6 days

0

25

MTD 710-0258

Hex Bolt 1/4-20 x 62"*
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

26

MTD 712-0287

Hex Nut 1/4-20 Thread'
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

27

MTD 736-0270

Belleville Washer 114" I . D .

$3.99

$

In Stock, Qty 15

0

28

MTD 736-0329

Lock Washer 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

29

MTD 16702

Front Grass Catcher Frame

$

$

Not available

30

MTD 747-0495

Grass Catcher Handle

$

$

Not available

31

MTD 731-0619

Control Cover

$

$

Not available

32

MTD 735-0639

Spark Plug Insulator

$

$

Not available

33

MTD 712-0388

Wing Nut
(Superseded to 712-0397A)

$3.99

$

In Stock, Qty 20+

0

34

MTD 746-0672

Throttle Control Wire 58 "
(Superseded to 946-0674A)

$17.99

$

In Stock, Qty 5

0

35

MTD 749-0505

Lower Handle
(Superseded to 749-0907B)

$46.99

$

In Stock, Qty 8

0

36

Engine

$

$

Not available

38

MTD 764-0212

21 " Top Discharge Grass Bag

$

$

Currently unavailable

39

MTD 14835

Retaining Strip

$

$

Not available

40

MTD 719-0279

Rope Guide

$14.99

$

Usually ships in 3-6 days

0

41

MTD 736-0204

Flat Washer .344" I.D. x .62 "

$3.99

$

In Stock, Qty 20+

0

42

MTD 16121

Chain Axle Assembly

$

$

Not available

43

MTD 710-0352

Hex B-Tap Screw 1/4" x .38 "

$4.49

$

Usually ships in 3-6 days

0

44

MTD 741-0180

Flange Ball Bearing
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

45

MTD 710-0776

Hex AB-Tap Screw 1/4 x .62 "
(Superseded to 710-0896)

$3.99

$

In Stock, Qty 20+

0

46

MTD 710-0875

Hex TT-Tap Screw 1/4-20

$3.99

$

In Stock, only 2 left!

0

47

MTD 712-0296

Hex Patch Lock Nut 3/8-24 Thread
(Superseded to 912-0296)

$2.99

$

In Stock, only 1 left!

0

48

MTD 713-0353

#48 Chain 5" Pitch x 30 Links
(Superseded to 913-0353)

$

$

Not available

49

MTD 712-0346

Hex Lock Nut 1/2-20 Thread

$4.49

$

In Stock, Qty 20+

0

50

MTD 731-0564

Plug

$

$

Not available

51

MTD 731-0672

Rear Flap
(Superseded to 731-0672A)

$31.99

$

Usually ships in 3-6 days

0

52

MTD 726-0240

Cable Tie
(Superseded to 725-0157)

$3.49

$

In Stock, only 2 left!

0

53

MTD 712-0123

Hex Nut 5/16-24 Thread *
(Superseded to 912-3057)

$6.49

$

In Stock, Qty 13

0

54

MTD 710-0969

Hex AB-Tap Screw

$4.49

$

In Stock, only 3 left!

0

55

MTD 753-0348

Blade Adapter Kit

$

$

Currently unavailable

56

MTD 742-0307

21" Blade

$

$

Not available

58

MTD 736-0217

Lock Washer 3/8" I D.

$3.99

$

In Stock, Qty 13

0

59

MTD 747-0510

Height Adjustment Rod

$

$

Not available

60

MTD 710-0331

Hex Bolt 3/8-24 x 2 25" (Grade 5)

$6.49

$

In Stock, Qty 8

0

61

MTD 748-0190

Spacer 51" I D.

$5.99

$

In Stock, only 1 left!

0

62

MTD 710-0888

Hex Bolt 5/16-24 x 1 0" (Grade 5)

$3.99

$

In Stock, Qty 12

0

63

MTD 736-0119

Lock Washer 5/16" I D *
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

64

MTD 16136

R.H. Handle Wheel Bracket Assembly
(Superseded to 16136C-0637)

$

$

Not available

65

MTD 16137

L.H. Handle Wheel Bracket Assembly
(Superseded to 16137C-0637)

$

$

Not available

66

MTD 710-0260

Carriage Bolt 5/16-18 x 62 "*
(Superseded to 710-0260A)

$3.99

$

In Stock, Qty 20+

0

67

MTD 710-0603

Hex B-Tap Screw 5/16-18

$4.49

$

Usually ships in 3-6 days

0

68

MTD 710-0654

Hex TT-Tap Screw 3/8-16
(Superseded to 710-0654A)

$3.99

$

In Stock, only 4 left!

0

69

MTD 712-0267

Hex Nut 5/16-18 Thread *
(Superseded to 912-3010)

$4.49

$

In Stock, Qty 20+

0

70

MTD 720-0223

Grip

$13.99

$

In Stock, Qty 10

0

71

MTD 732-0473

Height Adjustment Lever
(Superseded to 732-0473B)

$

$

Not available

72

MTD 732-0481

Extension Spring
(Superseded to 932-0481)

$

$

Not available

73

MTD 736-0242

Belleville Washer 5/16" I D.

$3.99

$

In Stock, Qty 20+

0

74

MTD 750-0526

Spacer 385" I.D.

$4.49

$

In Stock, Qty 10

0

75

MTD 750-0624

Shoulder Spacer

$

$

Not available

77

MTD 726-0233

Bolt Retainer

$3.99

$

In Stock, Qty 7

0

78

MTD 777-5776

Instruction Label

$

$

Currently unavailable

79

MTD 777-5773

Control Label

$

$

Currently unavailable

80

MTD 738-0137

Shoulder Bolt

$

$

Not available

81

MTD 748-0188

Pawl
(Superseded to 948-0188B)

$10.99

$

In Stock, Qty 19

0

82

MTD 734-1411

Rear Wheel Assembly Complete

$

$

Not available

83

MTD 712-0324

Hex Lock Nut 1/4-20 Thread

$3.49

$

In Stock, Qty 20+

0

84

MTD 741-0180

Flange Ball Bearing
(Superseded to 941-0180)

$18.99

$

Usually ships in 3-6 days

0

85

MTD 16134

Belt Idler Bracket Assembly

$

$

Not available

86

MTD 16146

Belt Cover

$

$

Currently unavailable

87

MTD 710-0599

Hex Self-Tap Screw 1/4-20 x 50 "

$3.99

$

In Stock, Qty 20+

0

88

MTD 712-0287

Hex Nut 1/4-20 Thread*
(Superseded to 912-0287)

$4.49

$

In Stock, only 2 left!

0

89

MTD 714-0115

Cotter Pin 1/8" Diameter x 1.0"*

$3.99

$

In Stock, only 1 left!

0

90

MTD 715-0247

Spring Pin Spiral 3/16" Diameter
(Superseded to 915-0247)

$

$

Not available

91

MTD 732-0357

Extension Spring .33" O.D.
(Superseded to 932-0357A)

$3.99

$

In Stock, Qty 5

0

92

MTD 736-0160

Flat Washer .531 " I.D.

$3.99

$

In Stock, only 2 left!

0

93

MTD 736-0329

Lock Washer 1/4" I.D.*
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

94

MTD 738-0255

Shoulder Bolt
(Superseded to 938-0255)

$4.99

$

In Stock, Qty 12

0

95

MTD 746-0466

Cable-53" Long

$

$

Not available

96

MTD 754-0104

"V"-Belt 1/2" x 32" Long

$

$

Not available

97

MTD 756-0360

Flat Idler Pulley

$

$

Not available

98

MTD 12894

Casing Clamp

$

$

Not available

100

MTD 710-0436

Hex B-Tap Screw #10 x 62 "
(Superseded to 710-0651)

$3.49

$

Usually ships in 3-6 days

0

101

MTD 751-0463

Casing Clamp

$

$

Not available

102

MTD 16126

21 " Deck Assembly

Variations

MTD 16126-0638

No Longer Available DECK ASM - MTD/TROY-BILT RED (0638)

$

$

Not available

$

$

105

MTD 10662

Front Axle Assembly

$

$

Currently unavailable

106

MTD 711-0313

Sleeve 526" I.D.

$

$

Not available

108

MTD 714-0104

Internal Cotter Pin 5/16" Dia roeter

$3.99

$

In Stock, Qty 20+

0

109

MTD 732-0482

Extension Spring

$

$

Not available

111

MTD 736-0221

Internal Lock Washer 3/8 I . D .

$

$

Not available

112

MTD 738-0705

Shoulder Bolt
(Superseded to 938-0705)

$

$

Not available

113

MTD 734-0922

Front Wheel Assembly Complete

$

$

Not available

114

MTD 731-0617

Self-Propelled Control Cover
(Superseded to 731-0617A)

$

$

Not available

115

MTD 731-0618

Self-Propelled Control Cover
(Superseded to 753-0833)

$47.99

$

In Stock, only 4 left!

0

116

MTD 731-0620

Control Lever
(Superseded to 731-0620A)

$14.99

$

In Stock, only 3 left!

0

117

MTD 720-0190

Door Grip
(Superseded to 731-13116-1)

$12.99

$

In Stock, only 3 left!

0

118

MTD 710-0841

Counter Sunk Tap Screw #10 x .75"

$3.99

$

Usually ships in 3-6 days

0

119

MTD 731-0354

Hub Cap-Plastic

$

$

Not available

121

MTD 710-0671

Carriage Bolt 5/16-18 x 1 .38 "

$

$

Not available

129

MTD 746-0477

Control Cable-43"
(Superseded to 946-0477A)

$

$

Not available

130

MTD 748-0318

Ratchet Wheel
(Superseded to 948-0318)

$9.99

$

In Stock, Qty 9

0

131

MTD 714-0115

Cotter Pin 1/8" Diameter x l.O"

$3.99

$

In Stock, only 1 left!

0

132

MTD 710-0748

Pan Head Tap Screw #12 x .50"

$

$

Not available

133

MTD 16559

Side Chute Deflector Assembly

$

$

Not available

134

MTD 748-0249

Flange Bushing

$

$

Not available

135

MTD 753-0430

Kit-Control Housing Complete

$

$

Not available

136

MTD 10622

Spring-Nylon
(Superseded to 10622BP)

$4.49

$

In Stock, Qty 20+

0

137

MTD 16118

Bearing Hub Flange Assembly

$

$

Currently unavailable

138

MTD 16119

Chain Cover

$

$

Currently unavailable

139

MTD 756-0460

Engine Pulley 1/2"

$

$

Not available

140

MTD 710-0599

Hex Self-Tap Screw 1/4-20 x .50"

$3.99

$

In Stock, Qty 20+

0

141

MTD 713-0355

Sprocket Shaft Assembly

$

$

Not available

142

MTD 736-0160

Flat Washer .531 " I.D. x .93" O.D.

$3.99

$

In Stock, only 2 left!

0

143

MTD 736-0270

Belleville Washer .265" I.D. x .75" O.D.

$3.99

$

In Stock, Qty 15

0

144

MTD 736-0300

Flat Washer .385" I.D. x .87" O.D.

$3.99

$

In Stock, Qty 20+

0

145

MTD 736-0326

Flat Washer .51 " I.D. x 1.0" O.D.

$4.49

$

In Stock, Qty 20+

0

146

MTD 736-0254

Flat Washer .62" I.D. x 1.12" O.D.
(Superseded to 936-0349)

$3.99

$

In Stock, Qty 20+

0

147

MTD 738-0719

Rear Shaft Assembly
(Superseded to 938-0719A)

$

$

Not available

148

MTD 741-0324

Hex Flange Bearing
(Superseded to 741-0324A)

$7.49

$

In Stock, Qty 8

0

149

MTD 748-0301

Spacer .510" I.D.

$

$

Currently unavailable

150

MTD 736-0271

Spring Washer .32" I.D.
(Superseded to 936-0271)

$4.49

$

In Stock, Qty 13

0

151

MTD 741-0491

Flanged Nyliner Bearing

$4.99

$

In Stock, Qty 20+

0

152

MTD 710-0751

Hex Bolt 1/4-20 x .62" (Grade 5)

$3.99

$

In Stock, Qty 20+

0

153

MTD 720-0224

Grass Catcher Locking Knob
(Superseded to 920-0224)

$

$

Not available

154

MTD 722-0139

Foam Strip

$

$

Not available

155

MTD 731-0883

Panel Clip

$

$

Not available

156

MTD 731-0801

Bag Handle

$

$

Not available
