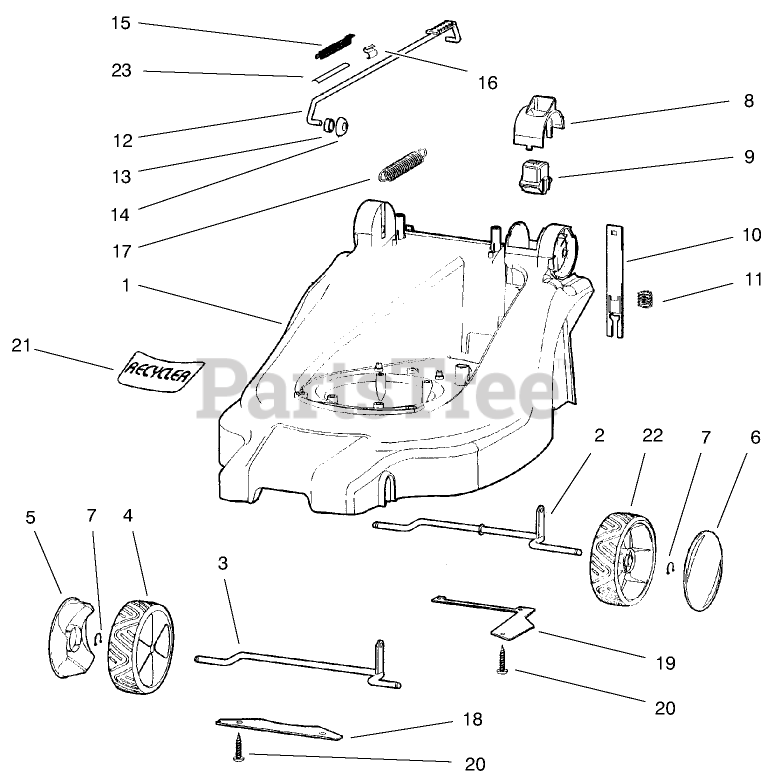

21070 - Toro 40cm Electric Recycler Walk-Behind Mower (SN: 089000001 - 089999999) (1998) Chassis Assembly Parts Diagram

40cm Electric Recycler Walk-Behind Mower

Chassis Assembly Parts Diagram

  • Title

1

Toro 95-6510

Housing
(Superseded to 95-6797)

$

$

Not available

2

Toro 95-6524

AXLE - REAR

$

$

Not available

3

Toro 95-6523

DISCONTINUED

$

$

Not available

4

Toro 95-6665

DISCONTINUED

$

$

Not available

5

Toro 95-6543

COVER-WHEEL

$4.49

$

Usually ships in 3-6 days

0

6

Toro 95-6716

DISCONTINUED

$

$

Not available

7

Toro 95-6544

DISCONTINUED

$

$

Not available

8

Toro 95-6563

DISCONTINUED

$

$

Not available

9

Toro 95-6562

DISCONTINUED

$

$

Not available

10

Toro 95-6526

DISCONTINUED

$

$

Not available

11

Toro 95-6564

Spring-HOC

$

$

Not available

12

Toro 95-6720

DISCONTINUED

$

$

Not available

13

Toro 95-6697

DISCONTINUED

$

$

Not available

14

Toro 95-6565

DISCONTINUED

$

$

Not available

15

Indicator-HOC

Note: Not serviced separately

$

$

Not available

16

U-Clip-Indicator

Note: Not serviced separately

$

$

Not available

17

Toro 95-6525

DISCONTINUED

$

$

Not available

18

Toro 95-6670

Plate-Axle, Front

$

$

Not available

19

Toro 95-6667

DISCONTINUED

$

$

Not available

20

Toro 95-6560

SCREW-BUTTON HEAD, TORX

$

$

Not available

21

Toro 95-6527

DISCONTINUED

$

$

Not available

22

Toro 95-6666

Smartwheel Assy. (incl. Ref. 6 7)

$

$

Not available

23

Toro 95-6709

Decal-HOC

$

$

Currently unavailable
