2107003 - Simplicity Model 40 One Row Cultivator Frame & Teeth Group (3482I17) Parts Diagram

Model 40 One Row Cultivator

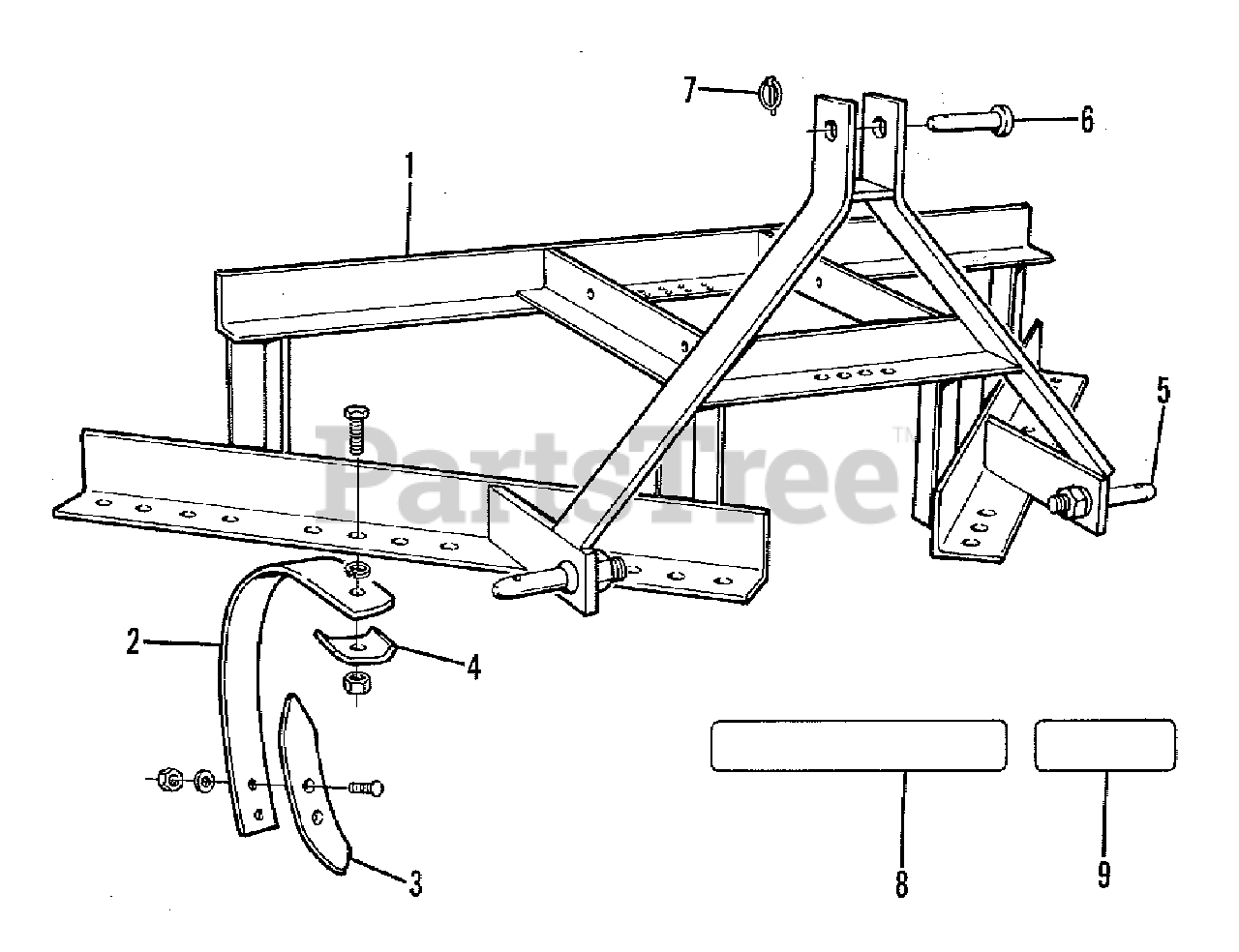

Frame & Teeth Group (3482I17) Parts Diagram

  • Title

1

Simplicity 2107080-0

FRAME ASSEMBLY

$

$

Not available

2

Simplicity 2107081-8

SHANK

$

$

Not available

2

Simplicity 0922664-8

CAPSCREW, 5/8NC x 2

$

$

Not available

2

Simplicity 0917373-3

LOCKWASHER, 5/8

$

$

Not available

2

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

3

Simplicity 2107082-6

TOOTH, Double Pointed

$

$

Not available

3

Simplicity 0924223-1

BOLT, Plow, No. 3 Head, 3/8NC x 1-1/4

$

$

Not available

3

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 GA.

$

$

Not available

3

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

4

Simplicity 2107083-4

WASHER, Retaining

$

$

Not available

5

Simplicity 0334357-1

PIN, Link (Cat. 1)

$

$

Not available

5

Simplicity 0919426-7

LOCKWASHER, 7/8

$

$

Not available

5

Simplicity 0920747-3

NUT, 7/8NF

$

$

Not available

6

Simplicity 2097978-7

PIN, Hitch, Upper

$

$

Not available

7

Simplicity 0244066-7

PIN, Quick

$

$

Not available

8

Simplicity 0579149-6

DECAL (Allis-Chalmers)

$

$

Not available

9

Simplicity 0593748-7

DECAL, (40 Model Identification)

$

$

Not available
