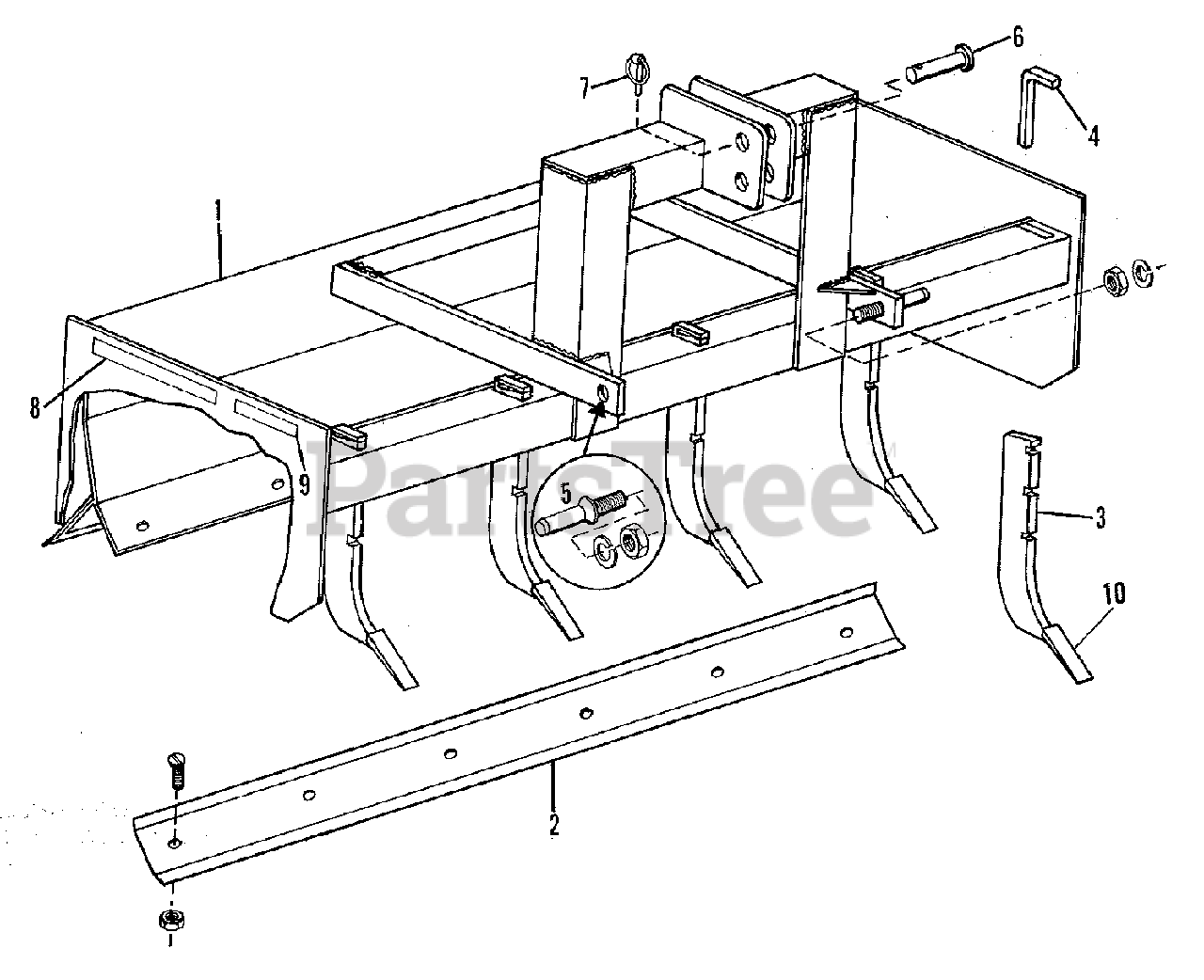

2107007 (48) - Simplicity 66" Scraper Box Frame & Teeth Group (3482I91) Parts Diagram

66" Scraper Box

Frame & Teeth Group (3482I91) Parts Diagram

  • Title

1

Simplicity 2107127-9

FRAME ASSEMBLY

$

$

Not available

2

Simplicity 2107128-7

BLADE, Cutting

$

$

Not available

2

Simplicity 0911634-4

BOLT, Plow, No. 3 Head, 5/8NC x 2-1/2

$

$

Not available

2

Simplicity 0917373-3

LOCKWASHER, 5/8

$

$

Not available

2

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

3

Simplicity 2107276-4

SHANK ASSEMBLY

$

$

Not available

4

Simplicity 2107130-3

PIN, Locking

$

$

Not available

5

Simplicity 0334357-1

PIN, Link (Cat. l)

$

$

Not available

5

Simplicity 0919426-7

LOCKWASHER, 7/8

$

$

Not available

5

Simplicity 0920747-3

NUT, 7/8NF

$

$

Not available

6

Simplicity 2097978-7

PIN, Hitch, Upper

$

$

Not available

7

Simplicity 0244066-7

PIN, Quick

$

$

Not available

8

Simplicity 0579149-6

DECAL (Allis-Chalmers)

$

$

Not available

9

Simplicity 0593753-7

DECAL (48 Model Identification)

$

$

Not available

10

Simplicity 2107275-6

POINT, Scarifier

$

$

Not available
