2107016 - Simplicity One & Two Bottom Coulter Coulter - One & Two Bottom Group (3482I89) Parts Diagram

One & Two Bottom Coulter

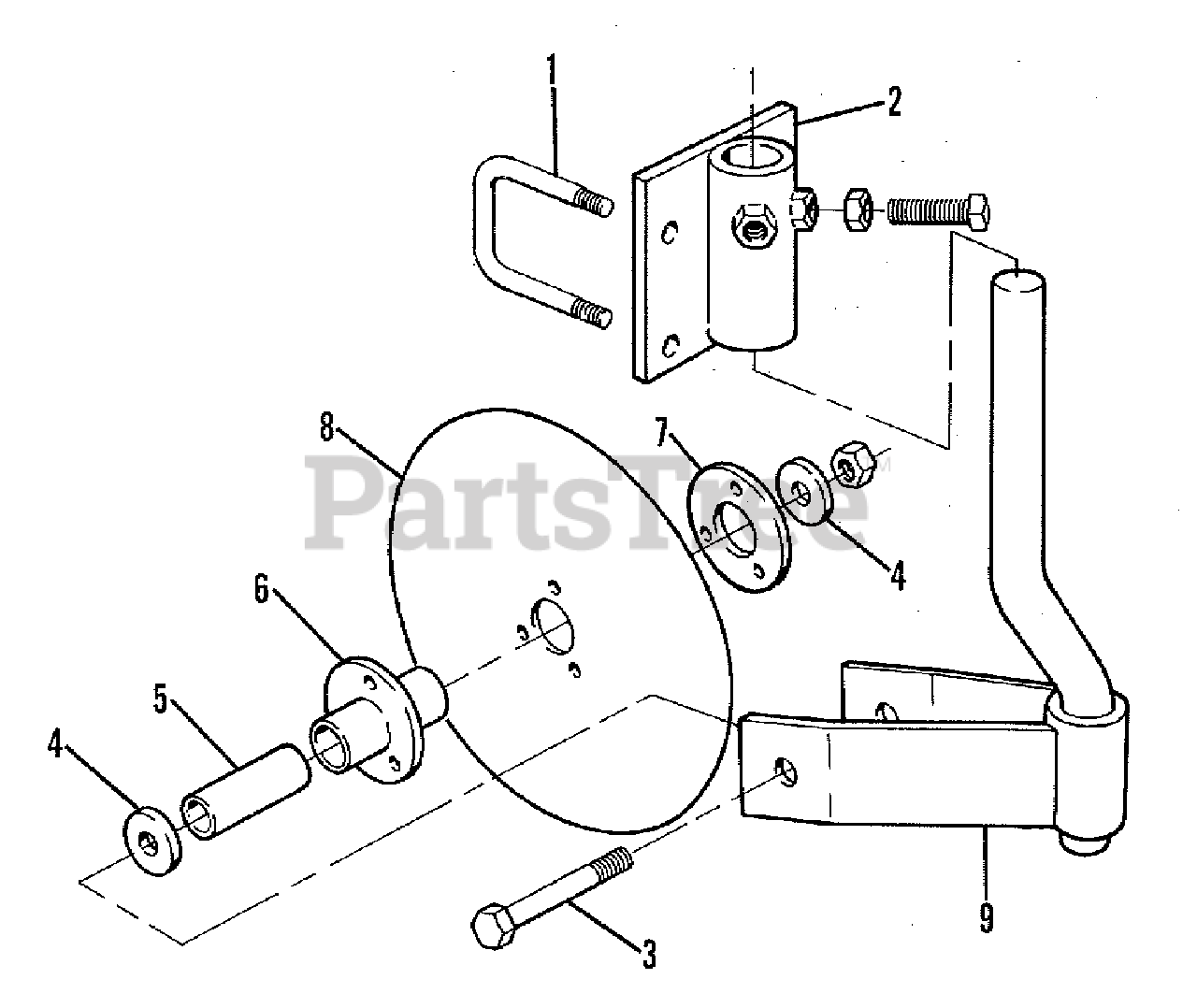

Coulter - One & Two Bottom Group (3482I89) Parts Diagram

  • Title

1

Simplicity 2107040-4

U-BOLT

$

$

Not available

1

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

1

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

2

Simplicity 2107041-2

CLAMP ASSEMBLY

$

$

Not available

2

Simplicity 0927074-5

SETSCREW, Square Head, Cup Point, 5/8NC x 1-1/4

$

$

Not available

2

Simplicity 0915726-4

NUT, 5/8NC

$

$

Not available

3

Simplicity 2107044-6

BOLT, Axle

$

$

Not available

4

Simplicity 2107045-3

WASHER, Axle Bolt

$

$

Not available

5

Simplicity 2107046-1

SLEEVE

$

$

Not available

6

Simplicity 2107047-9

HUB

$

$

Not available

7

Simplicity 2107048-7

FLANGE, Hub

$

$

Not available

8

Simplicity 2107049-5

BLADE

$

$

Not available

9

Simplicity 2107039-6

SHANK & YOKE ASSEMBLY

$

$

Not available
