2107024 - Simplicity Wheel Gauge Wheel - Guage Group (3482I90) Parts Diagram

Wheel Gauge

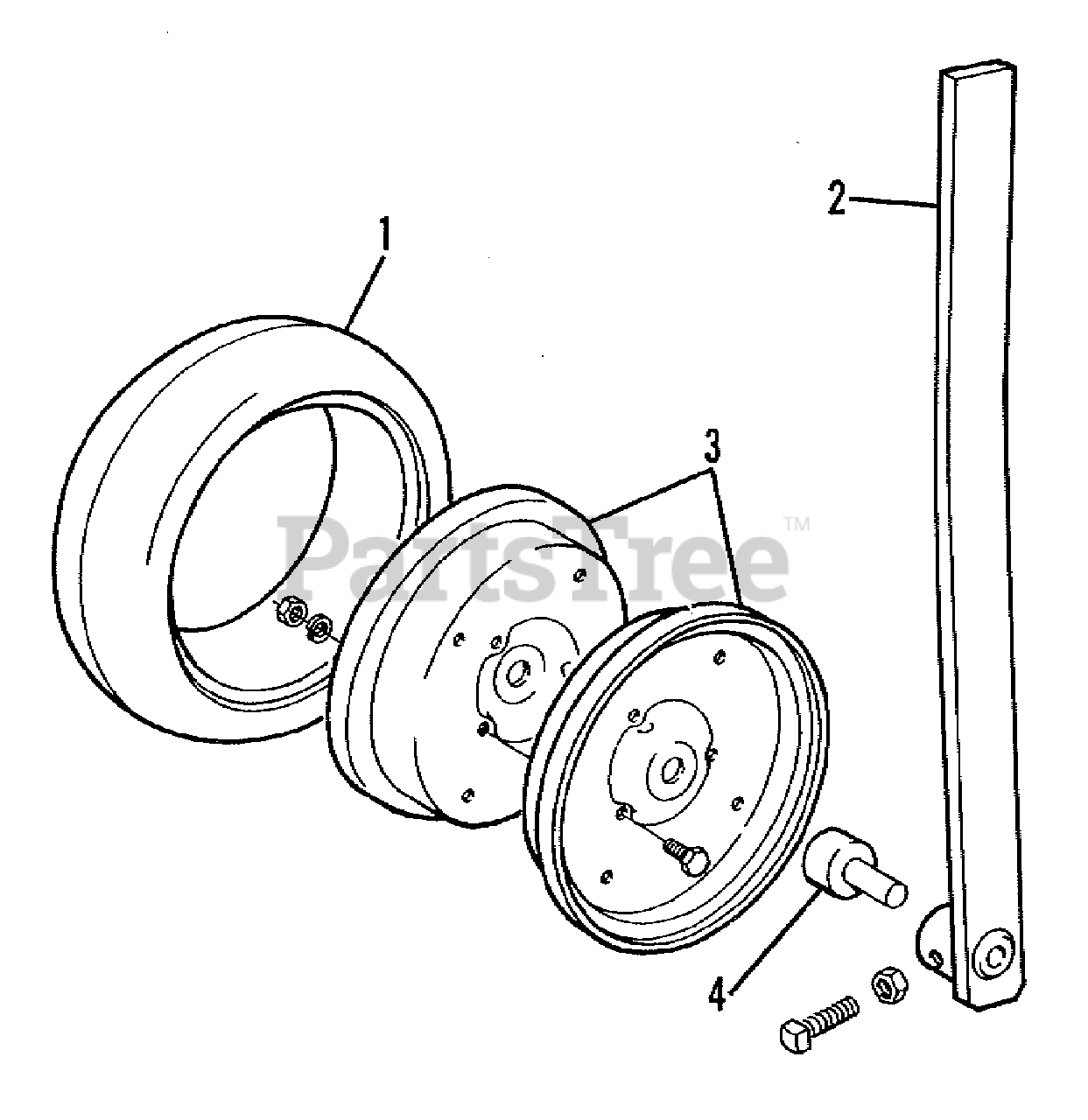

Wheel - Guage Group (3482I90) Parts Diagram

  • Title

-

Simplicity 2107036-2

WHEEL ASSEMBLY, Complete

$

$

Not available

1

Simplicity 2107037-0

TIRE

$

$

Not available

2

Simplicity 2107038-8

BAR ASSEMBLY, Adjusting

$

$

Not available

3

Simplicity 2107042-0

RIM, Wheel

$

$

Not available

3

Simplicity 0925205-7

CAPSCREW, 5/16NC x 5/8

$

$

Not available

3

Simplicity 0917356-8

LOCKWASHER, 5/16

$

$

Not available

3

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

4

Simplicity 2107043-8

SPINDLE, Wheel

$

$

Not available
