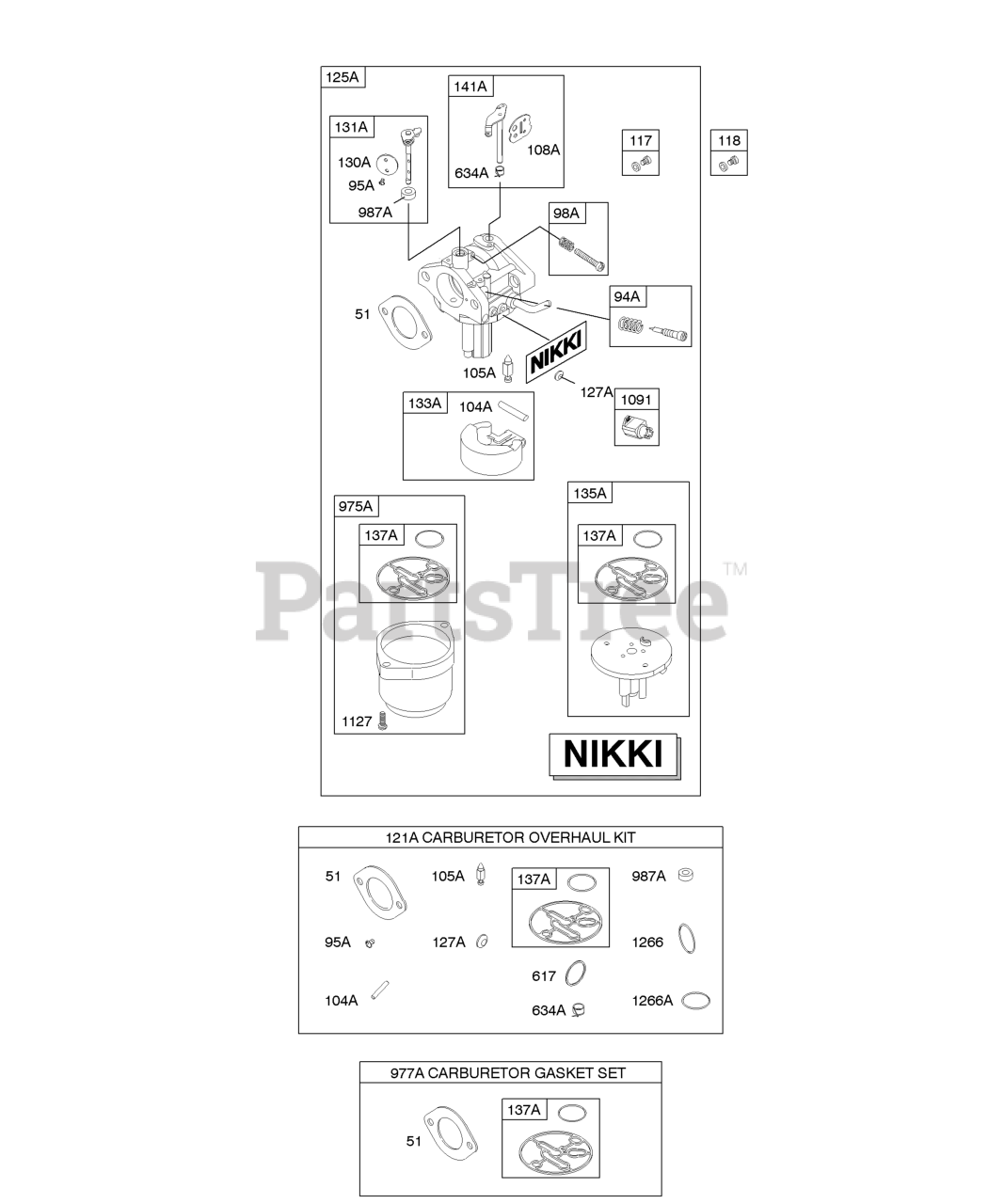

210807-0110-E1 - Briggs & Stratton Vertical Engine Carburetor Parts Diagram

Vertical Engine

Carburetor Parts Diagram

  • Title

51

Briggs & Stratton 692137

GASKET, Intake

$3.49

$

In Stock, Qty 14

0

94A

Briggs & Stratton 793610

KIT, Idle Mixture

$20.99

$

In Stock, only 4 left!

0

95A

Briggs & Stratton 690718

SCREW

Note: (Throttle Valve)

$5.99

$

In Stock, only 1 left!

0

98A

Briggs & Stratton 695408

KIT, Idle Speed

$13.99

$

In Stock, only 2 left!

0

104A

Briggs & Stratton 694918

PIN, Float Hinge

$7.49

$

In Stock, only 2 left!

0

105A

Briggs & Stratton 696136

VALVE, Float Needle

$15.99

$

In Stock, Qty 16

0

108A

Briggs & Stratton 698773

VALVE, Choke

$8.99

$

Usually ships in 2-12 days

0

117

Briggs & Stratton 699897

Jet-Main

Note: (Standard)

$17.99

$

In Stock, only 1 left!

0

118

Briggs & Stratton 698788

JET, Main

Note: (High Altitude)

$17.99

$

Usually ships in 2-12 days

0

121A

Briggs & Stratton 698787

Kit-Carburetor Overhaul
(Superseded to 796184)

$63.99

$

Usually ships in 2-12 days

0

125A

Briggs & Stratton 791266

Carburetor
(Superseded to 593432)

Note: (Nikki)(Pump Feed)

$137.99

$

Usually ships in 2-12 days

0

127A

Briggs & Stratton 690727

PLUG, Welch

$4.49

$

In Stock, only 1 left!

0

130A

Briggs & Stratton 698774

VALVE, Throttle

$8.49

$

Usually ships in 2-12 days

0

131A

Briggs & Stratton 698776

KIT, Throttle Shaft

$39.99

$

In Stock, only 1 left!

0

133A

Briggs & Stratton 694914

FLOAT, Carburetor

$28.99

$

In Stock, only 4 left!

0

135A

Briggs & Stratton 792022

Tube-Fuel Transfer

$49.99

$

In Stock, only 2 left!

0

137A

Briggs & Stratton 698781

GASKET, Float Bowl

$9.99

$

Usually ships in 2-12 days

0

141A

Briggs & Stratton 698778

KIT, Choke Shaft

$32.99

$

In Stock, only 1 left!

0

617

Briggs & Stratton 692138

SEAL, O-Ring

Note: (Intake Manifold)

$5.49

$

In Stock, Qty 9

0

634A

Briggs & Stratton 698779

Spring/Seal Assembly

$8.99

$

Usually ships in 2-12 days

0

975A

Briggs & Stratton 698783

BOWL, Float

$30.99

$

Usually ships in 2-12 days

0

977A

Briggs & Stratton 790032

Gasket Set-Carburetor
(Superseded to 796184)

$63.99

$

Usually ships in 2-12 days

0

987A

Briggs & Stratton 698777

Seal-Throttle Shaft
(Superseded to 690998)

$7.99

$

In Stock, only 1 left!

0

1091

Briggs & Stratton 691333

Cap-Limiter

$9.49

$

Usually ships in 2-12 days

0

1127

Briggs & Stratton 695407

SCREW, Float Bowl

Note: (Float Bowl)

$4.49

$

Usually ships in 2-12 days

0

1266

Briggs & Stratton 691917

SEAL, O-Ring

Note: (Intake Elbow)

$4.49

$

In Stock, Qty 8

0

1266A

Briggs & Stratton 697123

Seal-O Ring

Note: (Intake Elbow)

$5.99

$

In Stock, only 1 left!

0
