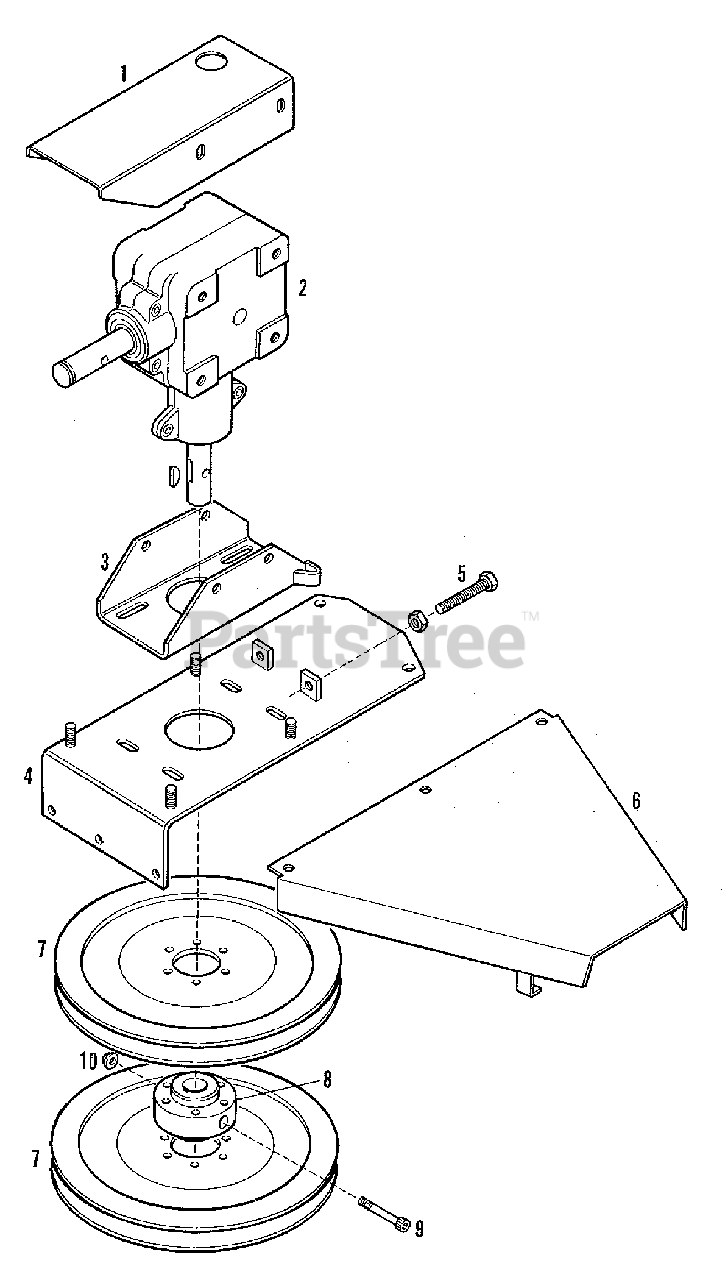

2108501 - Simplicity Model 63 Mower Deck, Rear-Mounted, 3 Blade Type Drives Eff. S/N 2100 & Up Group (3482I79) Parts Diagram

Model 63 Mower Deck, Rear-Mounted, 3 Blade Type

Drives Eff. S/N 2100 & Up Group (3482I79) Parts Diagram

  • Title

1

Simplicity 2108624-4

SHIELD, Universal

$

$

Not available

1

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

1

Simplicity 0918266-8

WASHER, Plain, 13/32 x 13/16 x 1/16

$

$

Not available

1

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

2

Simplicity 2108590-7

GEARBOX ASSEMBLY

$

$

Not available

2

Simplicity 0905123-6

KEY, Woodruff, 3/16 x 3/4 x 5/16

$

$

Not available

3

Simplicity 2108581-6

BRACKET, Gearbox

$

$

Not available

3

Simplicity 0921210-1

CAPSCREW, 3/8NC x 1

$

$

Not available

3

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

4

Simplicity 2108579-0

PLATE, Gearbox

$

$

Not available

4

Simplicity 2108580-8

CAPSCREW, Serrated Head, 3/8NC x 1

$

$

Not available

4

Simplicity 0923232-3

BOLT, Carriage, 3/8NC x 1

$

$

Not available

4

Simplicity 0918266-8

WASHER, Plain, 13/32 x 13/16 x 1/16

$

$

Not available

4

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

4

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

5

Simplicity 0933685-0

CAPSCREW, 3/8NC x 2-1/2, Full Thread

$

$

Not available

5

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

6

Simplicity 2108516-2

SHIELD, Belt

$

$

Not available

6

Simplicity 2108580-8

CAPSCREW, Serrated Head, 3/8NC x 1

$

$

Not available

6

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

6

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

7

Simplicity 2108625-1

SHEAVE, 12" O.D.

$

$

Not available

7

Simplicity 0922127-6

CAPSCREW, 5/16NC x 1-3/4

$

$

Not available

7

Simplicity 0919311-1

LOCKWASHER, 5/16

$

$

Not available

7

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

8

Simplicity 2108583-2

HUB, Sheave

$

$

Not available

8

Simplicity 0923136-6

CAPSCREW, Hex Socket Head, 3/8NC x 2-1/2, Gr. 8

$

$

Not available

8

Simplicity 0928352-4

NUT, Lock, Flange, 3/8NC

$

$

Not available

-

Simplicity 2108623-6

DECAL KIT, Complete

$

$

Not available
