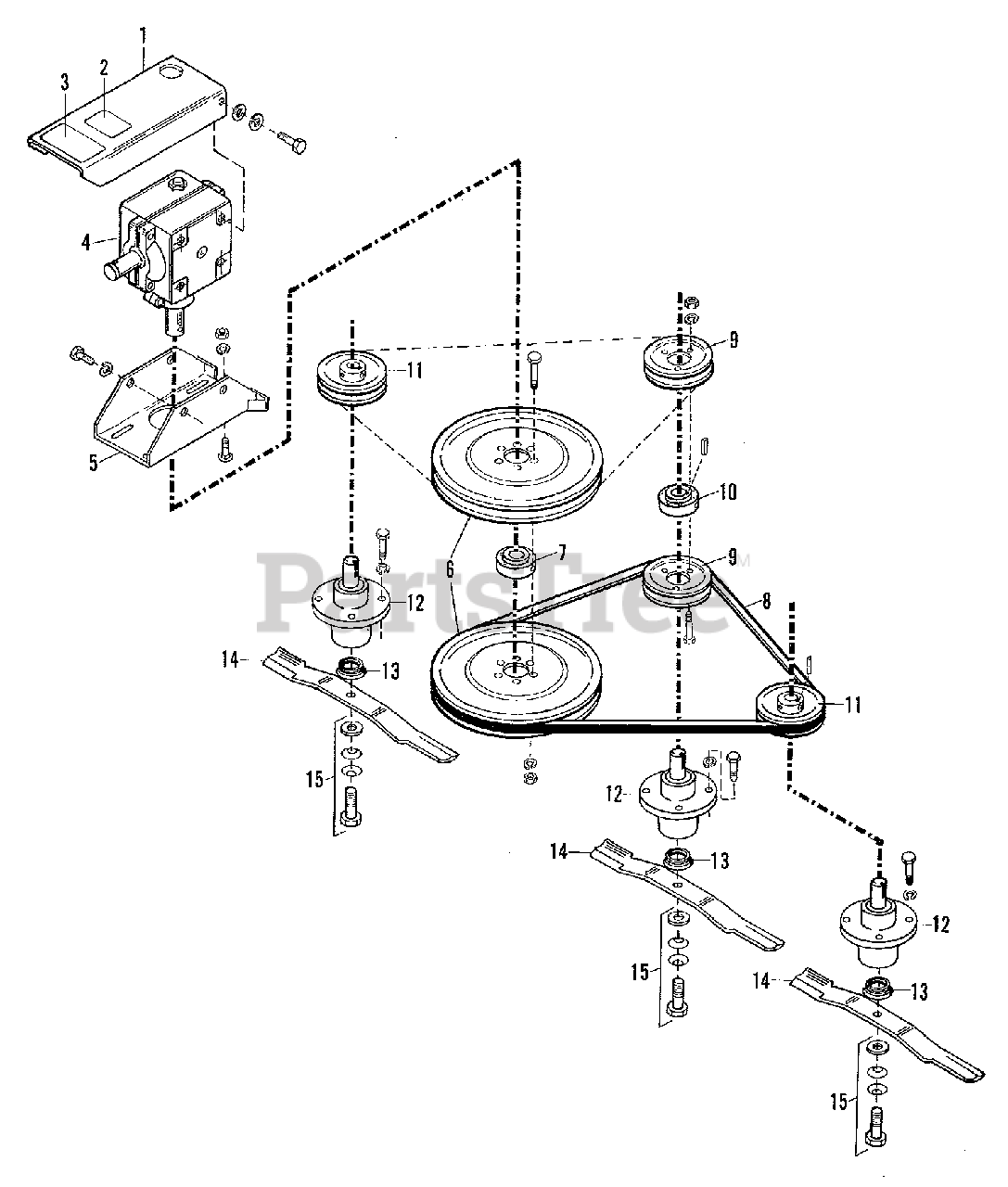

Model 63 Mower Deck, Rear-Mounted, 3 Blade Type

Drives Prior to S/N 2100 Group (3482I78) Parts Diagram

  • Title

1

Simplicity 2108517-0

SHIELD, Universal

$

$

Not available

1

Simplicity 0923114-3

CAPSCREW, 1/2NC x 1

$

$

Not available

1

Simplicity 0919312-9

LOCKWASHER, 1/2

$

$

Not available

1

Simplicity 0918266-8

WASHER, Plain, 13/32 x 13/16 x 1/16

$

$

Not available

2

Simplicity 2108564-2

DECAL, Warning (PTO Shield, "R.P.M")

$

$

Not available

3

Simplicity 2108550-1

DECAL, Warning ("Do Not Remove Shield)

$

$

Not available

4

Simplicity 2108518-8

GEARBOX ASSEMBLY, Complete

$

$

Not available

4

Simplicity 0923114-3

CAPSCREW, 1/2NC x 1

$

$

Not available

4

Simplicity 0919312-9

LOCKWASHER, 1/2

$

$

Not available

5

Simplicity 2108515-4

BRACKET, Gearbox

$

$

Not available

5

Simplicity 0931350-3

BOLT, Carriage, 3/8NC x 1

$

$

Not available

5

Simplicity 0918266-8

WASHER, Plain, 13/32 x 13/16 x 1/16

$

$

Not available

5

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

5

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

6

Simplicity 2108512-1

SHEAVE, 13" O.D.

$

$

Not available

6

Simplicity 0933684-3

CAPSCREW, 5/16NC x 1-3/4, Full Thread

$

$

Not available

6

Simplicity 0919311-1

LOCKWASHER, 5/16

$

$

Not available

6

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

7

Simplicity 2108513-9

HUB

$

$

Not available

7

Simplicity 0923136-6

CAPSCREW, Socket Head, 3/8NC x 2-1/2, Gr. 8

$

$

Not available

7

Simplicity 0928352-4

NUT, Lock, 3/8NC

$

$

Not available

8

Simplicity 2108530-3

V-BELT (For 5-1/2" O.D. Sheave)

$

$

Not available

8

Simplicity 2108616-0

V-BELT (For 4-1/2" O.D. Sheave)

$

$

Not available

9

Simplicity 2108510-5

SHEAVE, 5-1/2" O.D.

$

$

Not available

9

Simplicity 2108584-0

SHEAVE, 4-1/2" O.D.

$

$

Not available

9

Simplicity 0922127-6

CAPSCREW, 5/16NC x 1-3/4

$

$

Not available

9

Simplicity 0919311-1

LOCKWASHER, 5/16

$

$

Not available

9

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

10

Simplicity 2108511-3

HUB

$

$

Not available

10

Simplicity 0917098-6

CAPSCREW, Hex Socket, 5/16NC x 1-1/2

$

$

Not available

10

Simplicity 0920161-7

NUT, Jam, 5/16NC

$

$

Not available

10

Simplicity 0916024-3

KEY, 3/16 Square x 1-1/4

$

$

Not available

11

Simplicity 2108509-7

SHEAVE, 5-1/2" O.D.

$

$

Not available

11

Simplicity 2108585-7

SHEAVE, 4-1/2" O.D.

$

$

Not available

11

Simplicity 0925899-7

CAPSCREW, Hex Socket, 5/16NC x 1-1/4

$

$

Not available

11

Simplicity 0920161-7

NUT, Jam, 5/16NC

$

$

Not available

11

Simplicity 0916024-3

KEY, 3/16 Square x 1-1/4

$

$

Not available

12

Simplicity 2108504-8

SPINDLE ASSEMBLY

$

$

Not available

12

Simplicity 0914875-0

CAPSCREW, 1/2NF x 1

$

$

Not available

12

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

13

Simplicity 2108506-3

WASHER, Shoulder

$

$

Not available

14

Simplicity 2108505-5

BLADE

$

$

Not available

15

Simplicity 2108508-9

CAPSCREW, 5/8NC, L.H. Thread

$

$

Not available

15

Simplicity 0918432-6

WASHER, Plain, 11/16 x 1-3/4 x 1/8

$

$

Not available

15

Simplicity 2108507-1

WASHER, Cup, 5/8

$

$

Not available
