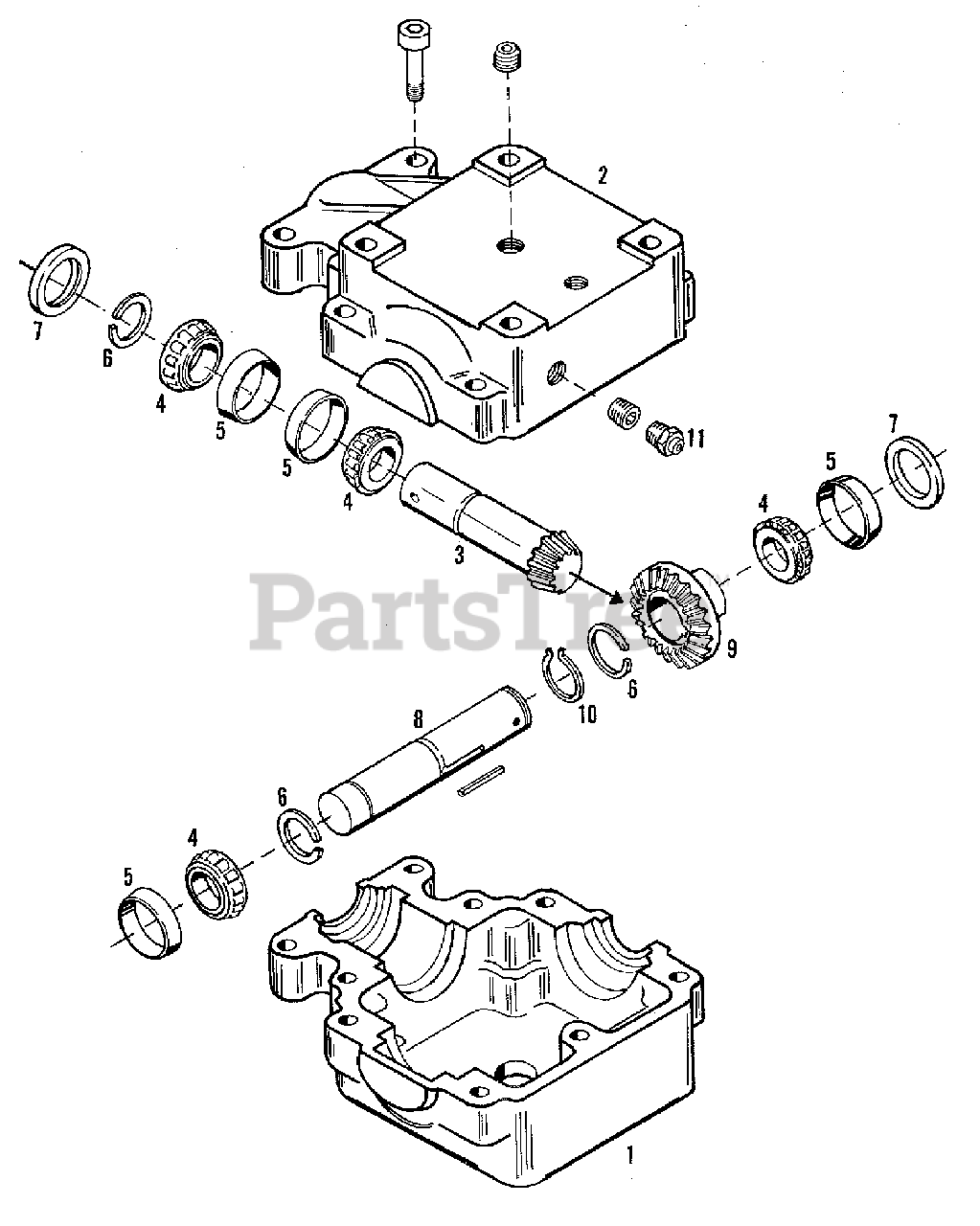

2108501 - Simplicity Model 63 Mower Deck, Rear-Mounted, 3 Blade Type Gearbox Prior to S/N 1226 Group (3482I84) Parts Diagram

Model 63 Mower Deck, Rear-Mounted, 3 Blade Type

Gearbox Prior to S/N 1226 Group (3482I84) Parts Diagram

  • Title

-

Simplicity 2108518-8

GEARBOX ASSEMBLY, Complete

$

$

Not available

1

Simplicity 2108531-1

HOUSING, Half (Threaded Holes)

$

$

Not available

1

Simplicity 0917970-6

PLUG, Pipe, 1/2

$

$

Not available

2

Simplicity 2108565-9

HOUSING, Half (Thru Holes)

$

$

Not available

2

Simplicity 0912269-8

CAPSCREW, Socket Head, 3/8NC x 2

$

$

Not available

2

Simplicity 0917970-6

PLUG, Pipe, 1/2

$

$

Not available

2

Simplicity 0904269-8

BUSHING, Pipe, 1/2 x 1/8

$

$

Not available

3

Simplicity 2108540-2

SHAFT, Pinion

$

$

Not available

3

Simplicity 2108544-4

KEY

$

$

Not available

4

Simplicity 0517103-8

CONE, Bearing

$

$

Not available

5

Simplicity 0209890-3

CUP, Bearing

$

$

Not available

6

Simplicity 2108543-6

RING, Retaining

$

$

Not available

7

Simplicity 2108542-8

SEAL, Oil

$

$

Not available

8

Simplicity 2108546-9

SHAFT, Cross

$

$

Not available

8

Simplicity 2108544-4

KEY

$

$

Not available

9

Simplicity 2108541-0

GEAR

$

$

Not available

10

Simplicity 0545005-1

RING, Retaining

$

$

Not available

11

Simplicity 2108545-1

PLUG, Pressure Relief

$

$

Not available
