2108501 - Simplicity Model 63 Mower Deck, Rear-Mounted, 3 Blade Type Spindle Eff. S/N 2100 & Up Group (3482I83) Parts Diagram

Model 63 Mower Deck, Rear-Mounted, 3 Blade Type

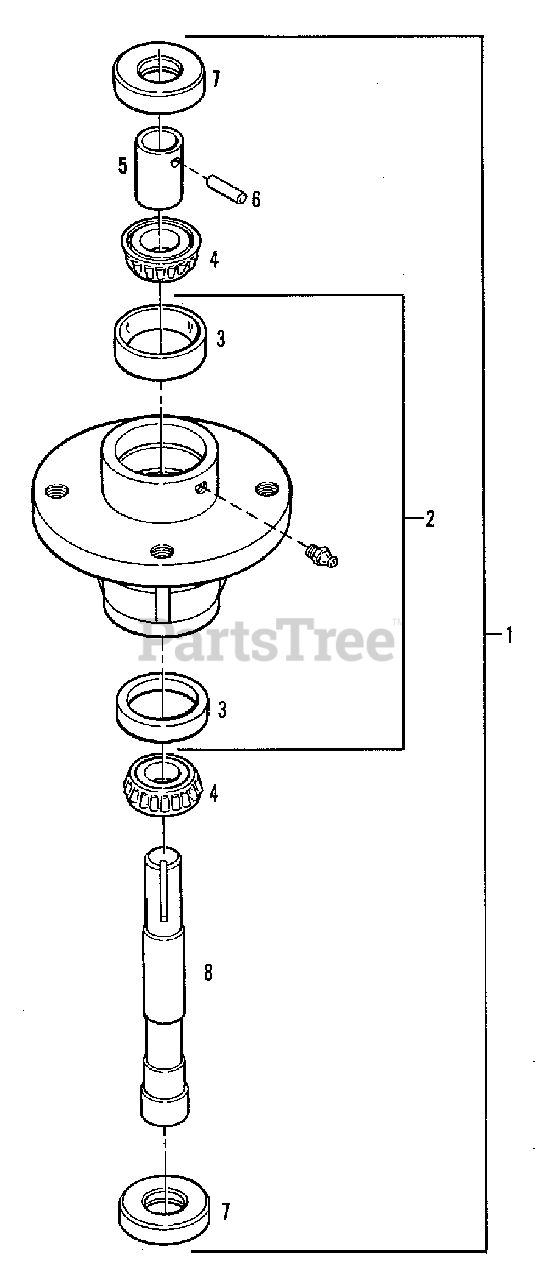

Spindle Eff. S/N 2100 & Up Group (3482I83) Parts Diagram

  • Title

1

Simplicity 2108619-4

SPINDLE & HUB ASSEMBLY, L.H. Rotation

$

$

Not available

2

Simplicity 2108636-8

HOUSING, Spindle

$

$

Not available

2

Simplicity 9002040-5

FITTING, Lube, 1/4 Straight

$

$

Not available

3

Simplicity 0228153-3

CUP, Bearing

$

$

Not available

4

Simplicity 0228152-5

CONE, Bearing

$

$

Not available

5

Simplicity 2108549-3

SLEEVE

$

$

Not available

6

Simplicity 2108638-4

PIN, Self-Lock, 3/16" x 1-1/8

$

$

Not available

7

Simplicity 2108637-6

SEAL

$

$

Not available

8

Simplicity 2108639-2

SHAFT, Spindle, L.H. Threads

$

$

Not available
