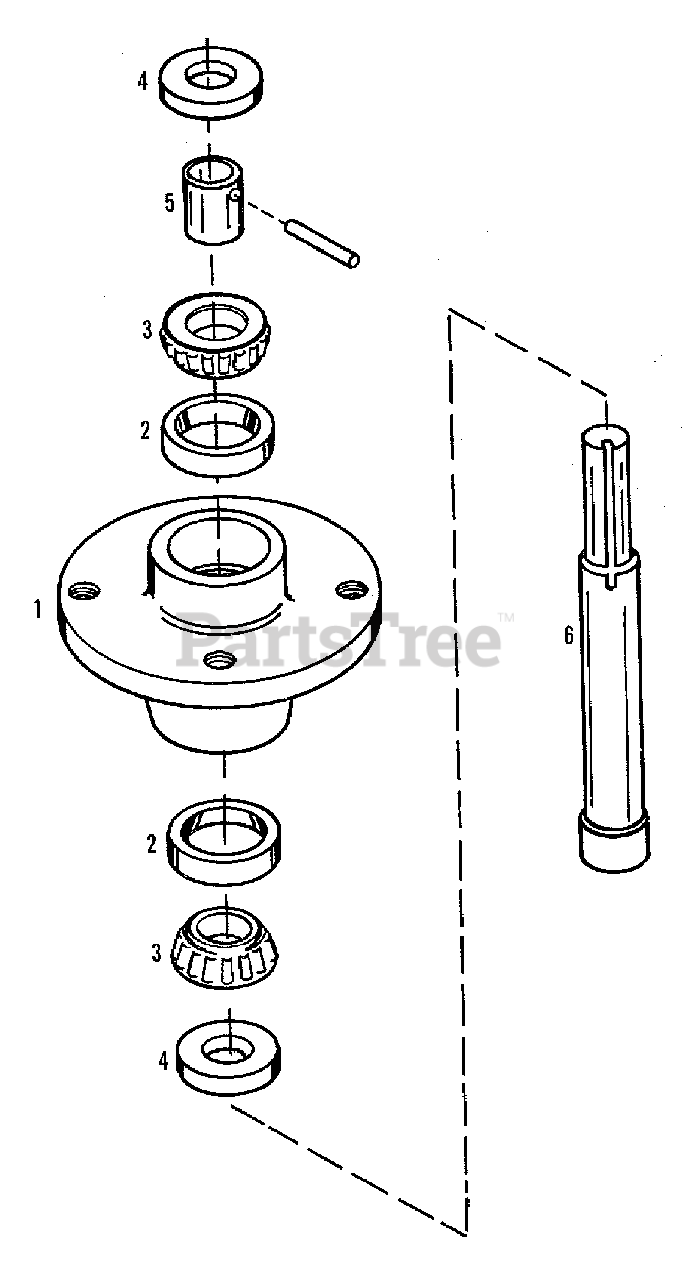

2108501 - Simplicity Model 63 Mower Deck, Rear-Mounted, 3 Blade Type Spindle Prior to S/N 1222 Group (3482I80) Parts Diagram

Model 63 Mower Deck, Rear-Mounted, 3 Blade Type

Spindle Prior to S/N 1222 Group (3482I80) Parts Diagram

  • Title

-

Simplicity 2108504-8

SPINDLE ASSEMBLY

$

$

Not available

1

Simplicity 2108572-5

HOUSING

$

$

Not available

1

Simplicity 9002040-5

FITTING, Lube, 1/4 Straight

$

$

Not available

2

Simplicity 0228153-3

CUP, Bearing

$

$

Not available

3

Simplicity 0228152-5

CONE, Bearing

$

$

Not available

4

Simplicity 0504238-7

SEAL, Oil

$

$

Not available

5

Simplicity 2108549-3

SLEEVE

$

$

Not available

5

Simplicity 0917466-5

PIN, Roll, 3/8 x 1-1/4

$

$

Not available

6

Simplicity 2108548-5

SHAFT

$

$

Not available
