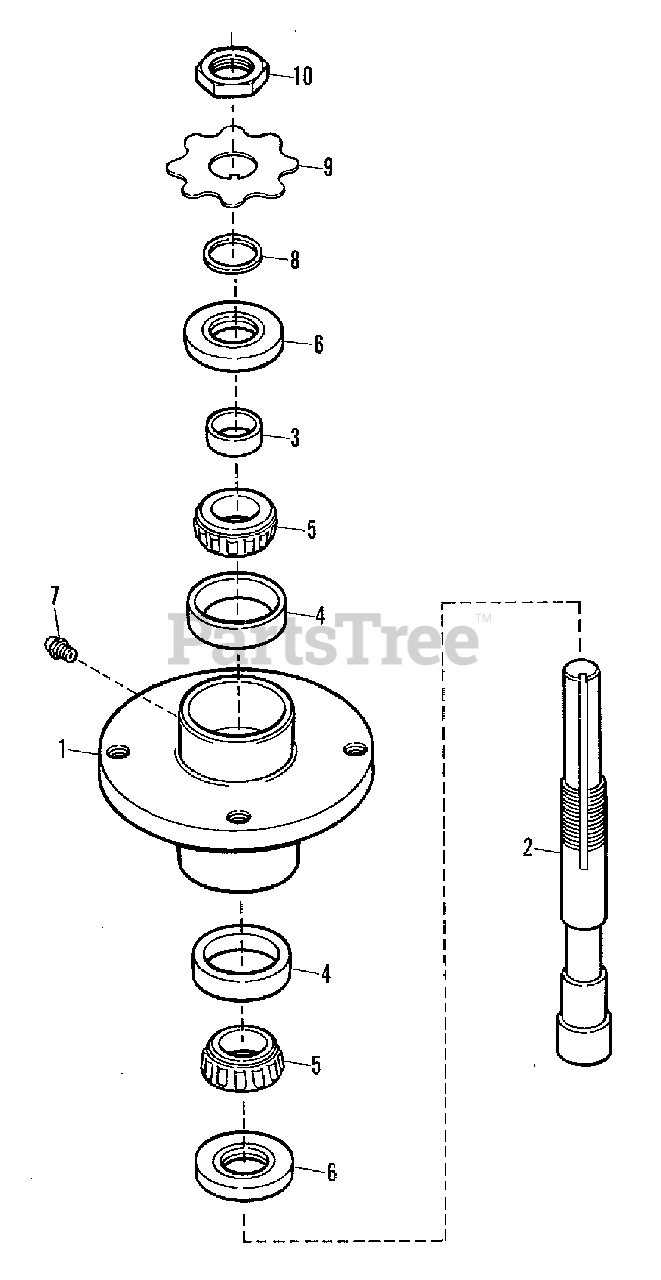

2108501 - Simplicity Model 63 Mower Deck, Rear-Mounted, 3 Blade Type Spindle Type I Eff. S/N 1222 thru S/N 2100 Group (3482I81) Parts Diagram

Model 63 Mower Deck, Rear-Mounted, 3 Blade Type

Spindle Type I Eff. S/N 1222 thru S/N 2100 Group (3482I81) Parts Diagram

  • Title

1

Simplicity 2108572-5

HOUSING, Spindle

$

$

Not available

2

Simplicity 2108573-3

SHAFT, Spindle

$

$

Not available

3

Simplicity 2108574-1

SPACER, Top

$

$

Not available

4

Simplicity 0228153-3

CUP, Bearing

$

$

Not available

5

Simplicity 0228152-5

CONE, Bearing

$

$

Not available

6

Simplicity 0504238-7

SEAL

$

$

Not available

7

Simplicity 9002040-5

FITTING, Lube, 1/4-28 Taper Thread

$

$

Not available

8

Simplicity 2108575-8

BUSHING

$

$

Not available

9

Simplicity 2108576-6

WASHER, Star

$

$

Not available

10

Simplicity 2108577-4

NUT, Jam, 13/16NF

$

$

Not available
