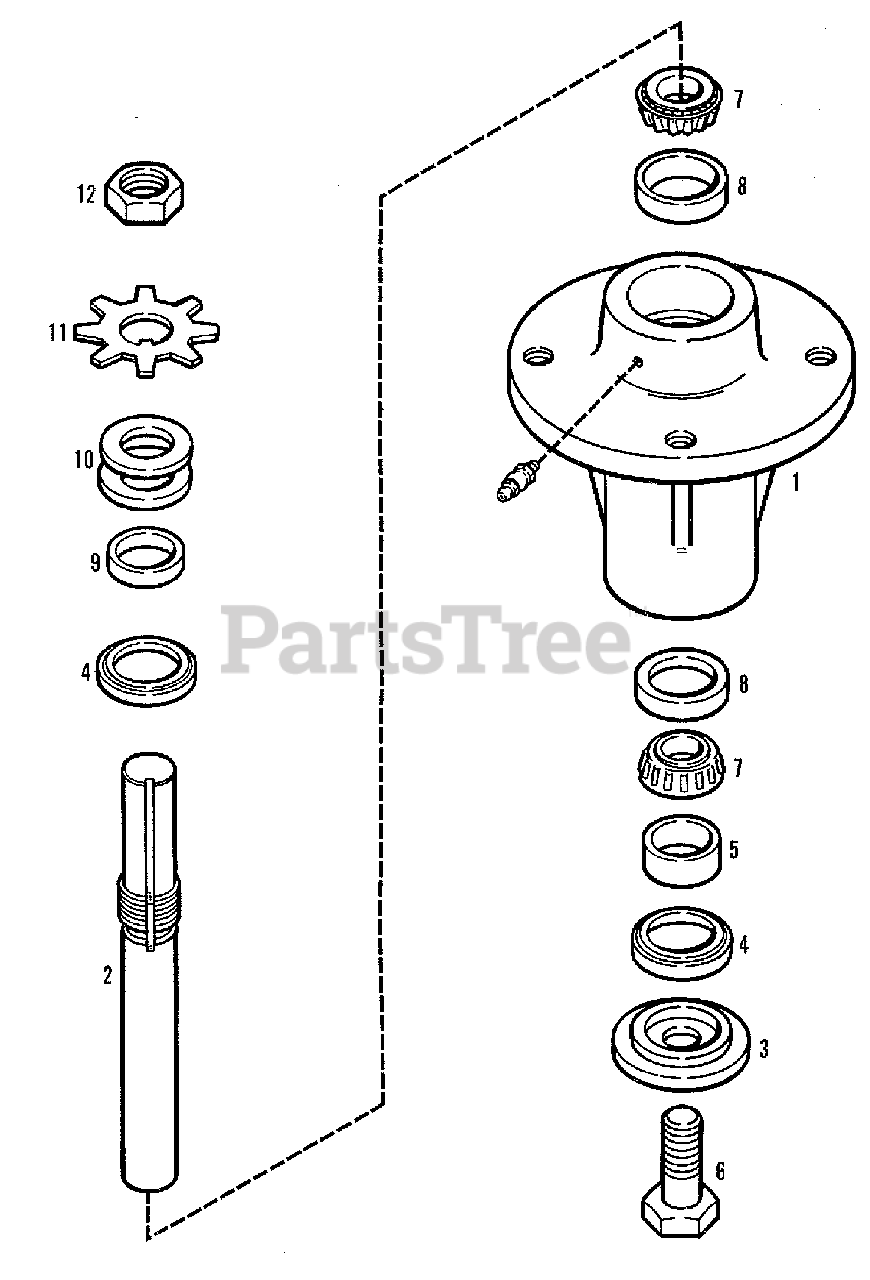

2108501 - Simplicity Model 63 Mower Deck, Rear-Mounted, 3 Blade Type Spindle Type II Eff. S/N 1222 thru S/N 2100 Group (3482I82) Parts Diagram

Model 63 Mower Deck, Rear-Mounted, 3 Blade Type

Spindle Type II Eff. S/N 1222 thru S/N 2100 Group (3482I82) Parts Diagram

  • Title

1

Simplicity 2108605-3

HOUSING, Spindle

$

$

Not available

1

Simplicity 9002040-5

FITTING, Lube, 1/4-28 Straight

$

$

Not available

2

Simplicity 2108604-6

SHAFT, Spindle

$

$

Not available

3

Simplicity 2108587-3

WASHER, Shoulder

$

$

Not available

4

Simplicity 0248372-5

SEAL, Oil

$

$

Not available

5

Simplicity 2108606-1

SPACER, Bottom

$

$

Not available

6

Simplicity 2108508-9

CAPSCREW, L.H. Thread, 5/8NC x 1-1/2

$

$

Not available

7

Simplicity 0341230-1

CONE, Bearing

$

$

Not available

8

Simplicity 0336916-2

CUP, Bearing

$

$

Not available

9

Simplicity 2108603-8

SPACER, Top

$

$

Not available

10

Simplicity 2108602-0

BUSHING, Machinery, 1" x 10 Ga.

$

$

Not available

11

Simplicity 2108601-2

WASHER, Star

$

$

Not available

12

Simplicity 0921696-1

NUT, 1"NF

$

$

Not available
