2109001 (410) - Simplicity 72" Dozer Blade Blade & Support Frame - Implement End Group (3482I09) Parts Diagram

72" Dozer Blade

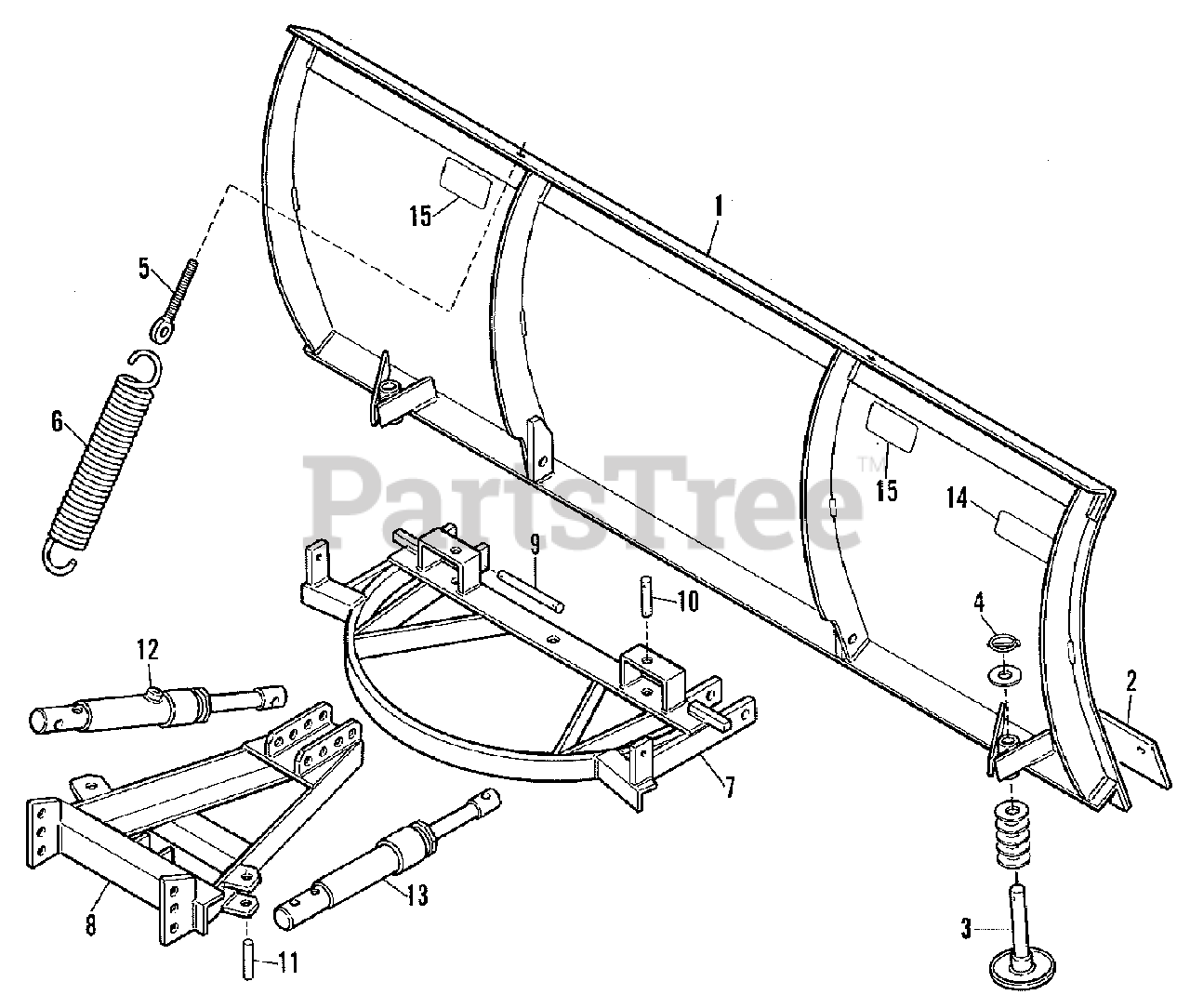

Blade & Support Frame - Implement End Group (3482I09) Parts Diagram

  • Title

1

Simplicity 2109002-2

BLADE ASSEMBLY (72")

$

$

Not available

2

Simplicity 2109003-0

EDGE, Blade

$

$

Not available

2

Simplicity 0931352-9

BOLT, Carriage, 1/2NC x 1-1/2

$

$

Not available

2

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

2

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

3

Simplicity 2109008-9

SKID, Blade

$

$

Not available

3

Simplicity 0929368-9

WASHER, Plain, 1-1/16 x 2-3/8 x 7 Ga.

$

$

Not available

4

Simplicity 0244066-7

PIN, Quick Hitch

$

$

Not available

5

Simplicity 2109011-3

ADJUSTER, Spring Trip

$

$

Not available

5

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

6

Simplicity 2109010-5

SPRING, Trip

$

$

Not available

7

Simplicity 2109004-8

SECTOR ASSEMBLY

$

$

Not available

8

Simplicity 2109005-5

FRAME ASSEMBLY

$

$

Not available

8

Simplicity 0923292-7

CAPSCREW, 3/4NC x 2-1/2

$

$

Not available

8

Simplicity 0926662-8

NUT, Lock, 3/4NC

$

$

Not available

9

Simplicity 2109009-7

PIN, Trip

$

$

Not available

9

Simplicity 0922002-1

PIN, Cotter, 3/16 x 2

$

$

Not available

10

Simplicity 2109021-2

PIN, Angle Cylinder, Front

$

$

Not available

10

Simplicity 0922002-1

PIN, Cotter, 3/16 x 2

$

$

Not available

11

Simplicity 2109022-0

PIN, Angle Cylinder, Rear

$

$

Not available

11

Simplicity 0922002-1

PIN, Cotter, 3/16 x 2

$

$

Not available

12

Simplicity 2109019-6

CYLINDER ASSEMBLY, Complete

$

$

Not available

13

Simplicity 2109020-4

CYLINDER ASSEMBLY, Complete

$

$

Not available

14

Simplicity 0593741-2

DECAL (Model 410 Identification)

$

$

Not available

15

Simplicity 0598945-4

DECAL (Warning)

$

$

Not available
