2109001 (410) - Simplicity 72" Dozer Blade Blade & Support Frame - Tractor End Group (3482I08) Parts Diagram

72" Dozer Blade

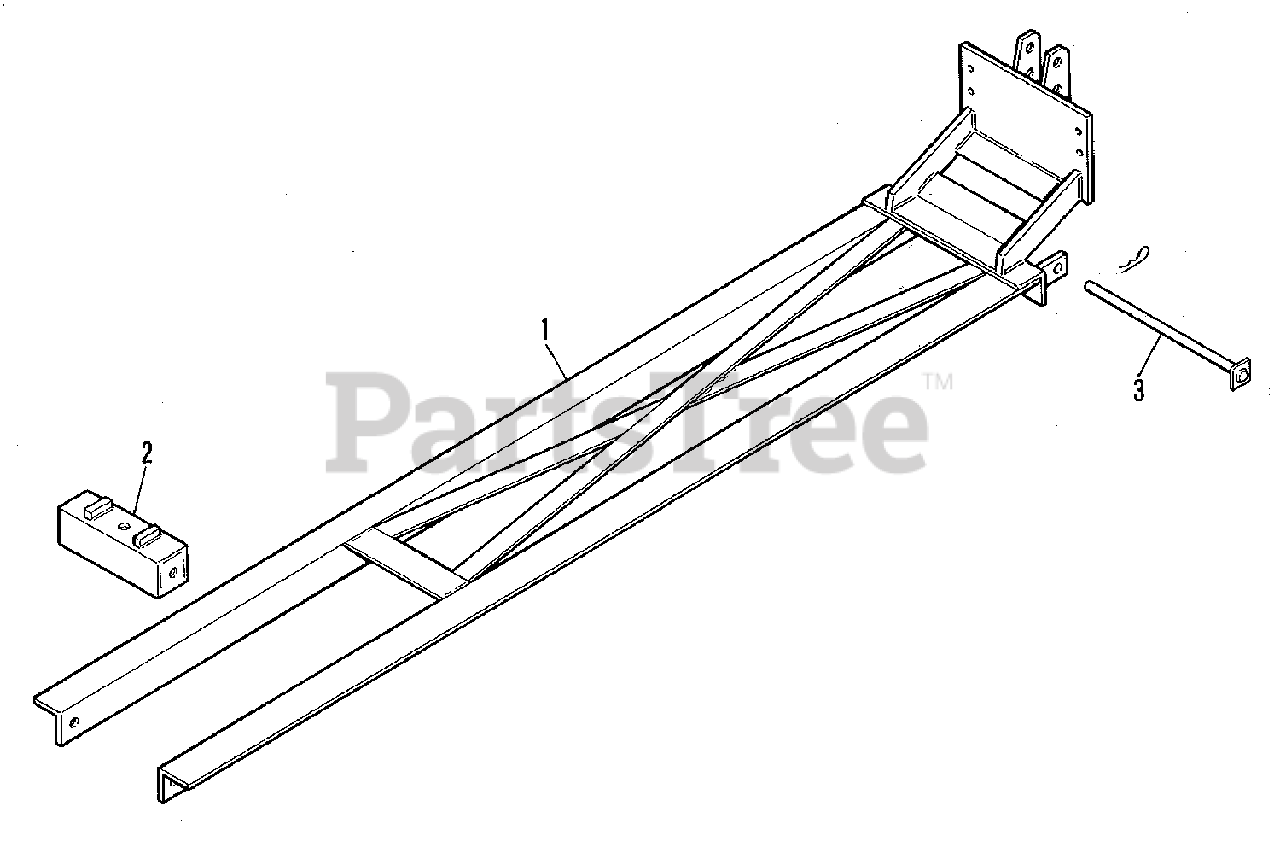

Blade & Support Frame - Tractor End Group (3482I08) Parts Diagram

  • Title

1

Simplicity 2109006-3

RAIL ASSEMBLY, Undercarriage

$

$

Not available

1

Simplicity 0921024-6

CAPSCREW, 1/2NC x 2

$

$

Not available

1

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

1

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

2

Simplicity 2109007-1

RAIL ASSEMBLY, Rear Mount

$

$

Not available

2

Simplicity 0925387-3

CAPSCREW, 3/4NC x 4

$

$

Not available

2

Simplicity 0925872-4

CAPSCREW, 3/4NC x 2-1/2

$

$

Not available

2

Simplicity 0919332-7

LOCKWASHER, 3/4

$

$

Not available

2

Simplicity 0913160-8

NUT, 3/4NC

$

$

Not available

3

Simplicity 2109012-1

PIN ASSEMBLY, A-Frame

$

$

Not available

3

Simplicity 9002803-6

CLIP, Hairpin

$

$

Not available
