2109593 - Simplicity Model 64 Snow Thrower Attachment Electrical & Instruments - PTO Clutch Switch & Wiring Group (3482I107) Parts Diagram

Model 64 Snow Thrower Attachment

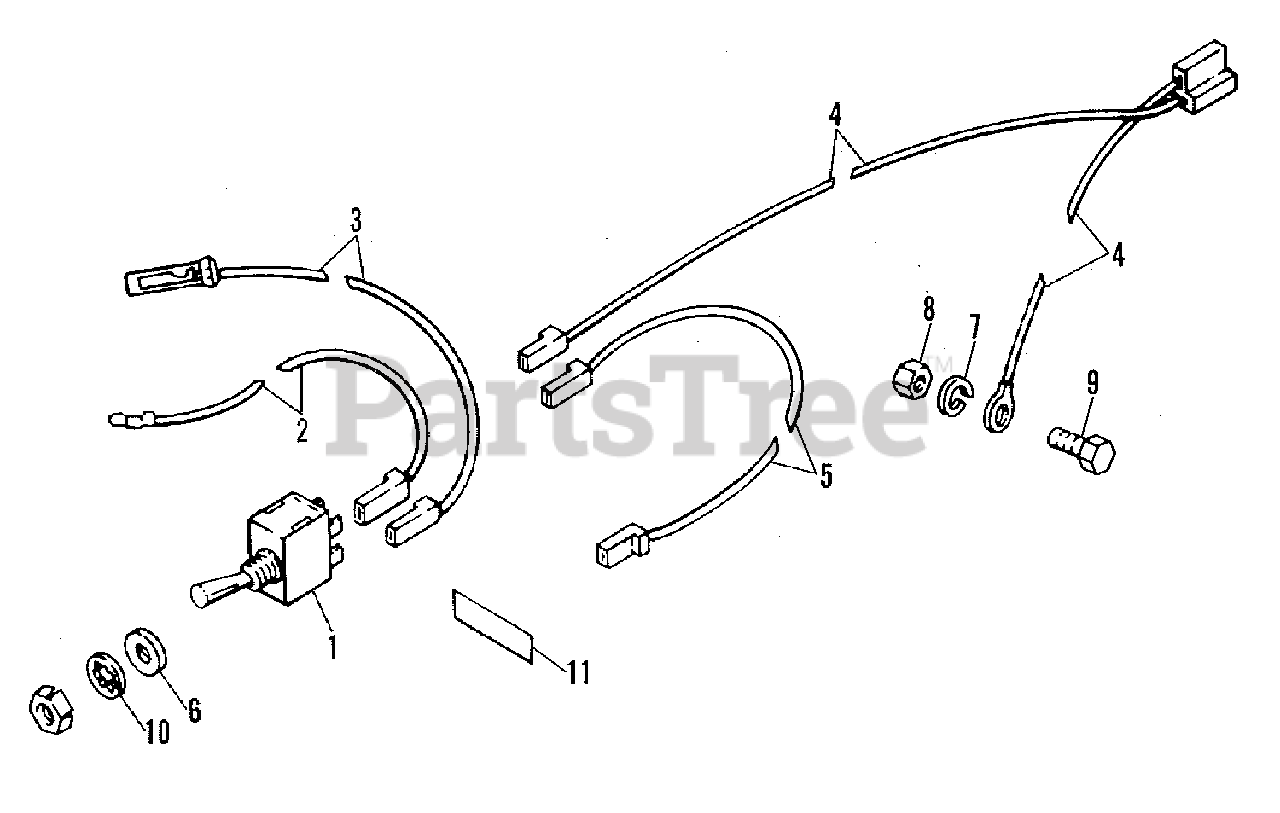

Electrical & Instruments - PTO Clutch Switch & Wiring Group (3482I107) Parts Diagram

  • Title

1

Simplicity 2028809-8

SWITCH

$

$

Not available

2

Simplicity 1664356-1

WIRE, Safety (Green)

$

$

Not available

3

Simplicity 1664355-3

WIRE, Safety (Blue)

$

$

Not available

4

Simplicity 1664354-6

WIRE ASSEMBLY, Clutch (Black)

$

$

Not available

5

Simplicity 1664357-9

WIRE ASSEMBLY, Power (Yellow)

$

$

Not available

6

Simplicity 0918430-0

WASHER

$

$

Not available

7

Simplicity 0916964-0

LOCKWASHER, 1/4

$

$

Not available

8

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

9

Simplicity 0923341-2

CAPSCREW, 1/4NC x 3/4

$

$

Not available

10

Simplicity 0909589-4

LCOKWASHER, Internal Tooth, 1/2

$

$

Not available

11

Simplicity 1664361-1

DECAL, Clutch (Located on Dash)

$

$

Not available
