2109593 - Simplicity Model 64 Snow Thrower Attachment Hitch & Drive Assembly - Implement End Group (3482I101) Parts Diagram

Model 64 Snow Thrower Attachment

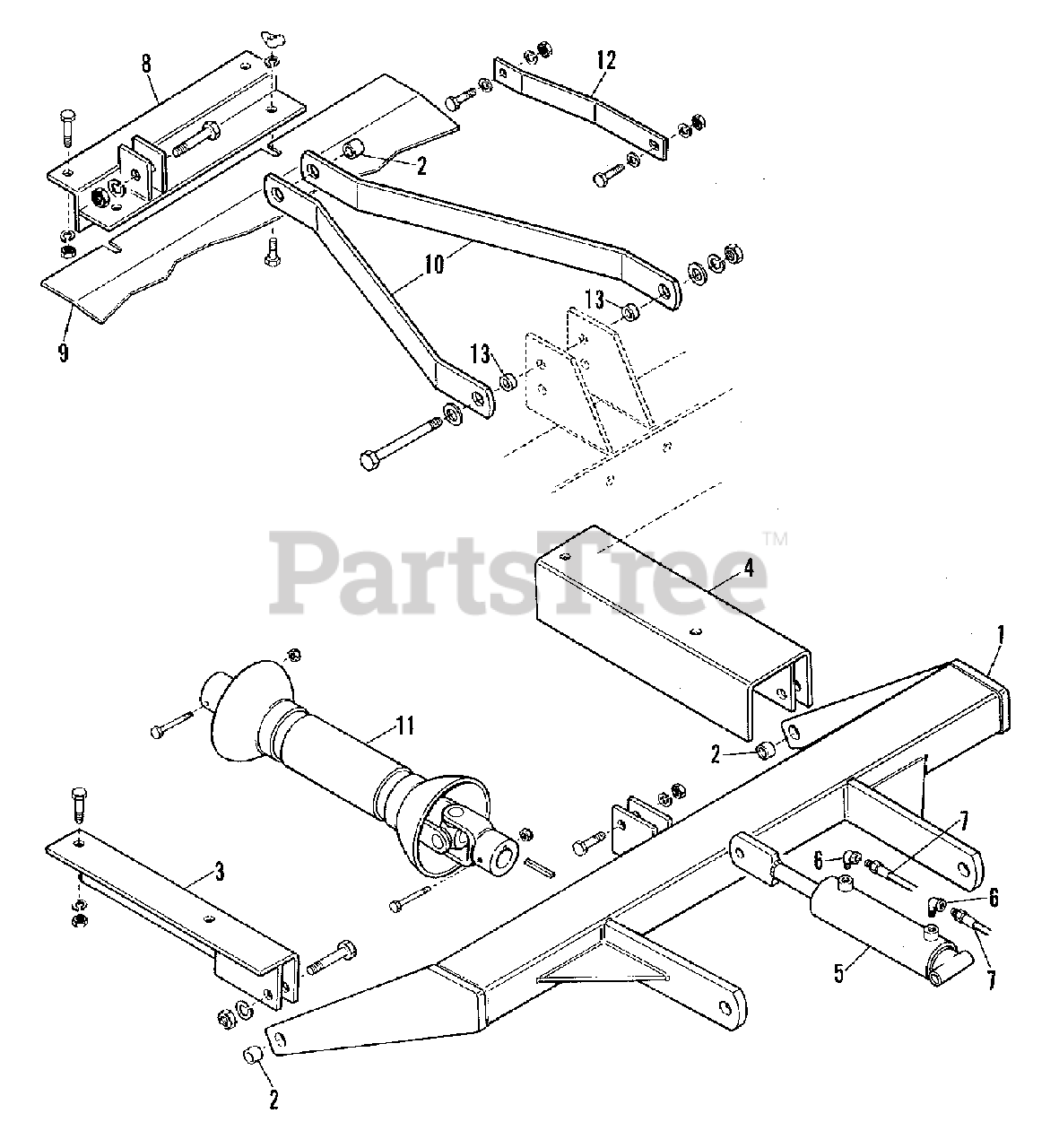

Hitch & Drive Assembly - Implement End Group (3482I101) Parts Diagram

  • Title

1

Simplicity 2109541-9

ARM, Lift

$

$

Not available

1

Simplicity 0921024-6

CAPSCREW, 1/NC x 2

$

$

Not available

1

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

1

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

2

Simplicity 2109540-1

BUSHING

$

$

Not available

3

Simplicity 2109539-3

BRACKET, Mounting, LH.

$

$

Not available

3

Simplicity 0921176-4

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

3

Simplicity 0931367-7

BOLT, Carriage, 1/2NC x 2

$

$

Not available

3

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

3

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

4

Simplicity 2109538-5

BRACKET, Mounting, R.H.

$

$

Not available

4

Simplicity 0921176-4

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

4

Simplicity 0931367-7

BOLT, Carriage, 1/2NC x 2

$

$

Not available

4

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

4

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

5

Simplicity 2109555-9

CYLINDER, Hydraulic, Complete

$

$

Not available

5

Simplicity 0923161-4

BOLT, Carriage, 1/2NC x 2

$

$

Not available

5

Simplicity 0921176-4

CAPSCREW, 1/2NC x 1-1/4

$

$

Not available

5

Simplicity 0918431-8

WASHER, Plain

$

$

Not available

5

Simplicity 0916966-5

LOCKWASHER, 1/2

$

$

Not available

5

Simplicity 0916951-7

NUT, 1/2NC

$

$

Not available

6

Simplicity 0932593-7

ELBOW, 90 Degrees, 1/4NC

$

$

Not available

7

Simplicity 2109557-5

HOSE ASSEMBLY, Hydraulic (102" Long)

$

$

Not available

8

Simplicity 2109525-2

BRACKET, Hitch, Upper

$

$

Not available

8

Simplicity 0931350-3

BOLT, Round Head Square nk., 3/8NC x 1

$

$

Not available

8

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

8

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

9

Simplicity 2109604-5

SHIELD

$

$

Not available

9

Simplicity 0931350-3

BOLT, Round Head Square nk., 3/8NC x 1

$

$

Not available

9

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 Ga.

$

$

Not available

9

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

9

Simplicity 0916953-3

NUT, Wing, 3/8NC

$

$

Not available

10

Simplicity 2109605-2

LINK, Top

$

$

Not available

11

PTO ASSEMBLY

$

$

Not available

11

Simplicity 0922912-1

BOLT, Carriage, 1/4NC x 2-1/2, Gr. 8

$

$

Not available

11

Simplicity 0923358-6

NUT, Cone Lock, 1/4NC

$

$

Not available

12

Simplicity 2109607-8

STRAP, Support

$

$

Not available

12

Simplicity 0931350-3

BOLT, Round Head Square nk., 3/8NC x 1

$

$

Not available

12

Simplicity 0917378-2

WASHER, Plain, 7/16 x 1 x 14 Ga.

$

$

Not available

12

Simplicity 0919312-9

LOCKWASHER, 3/8

$

$

Not available

12

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

13

Simplicity 2109606-0

BUSHING

$

$

Not available
