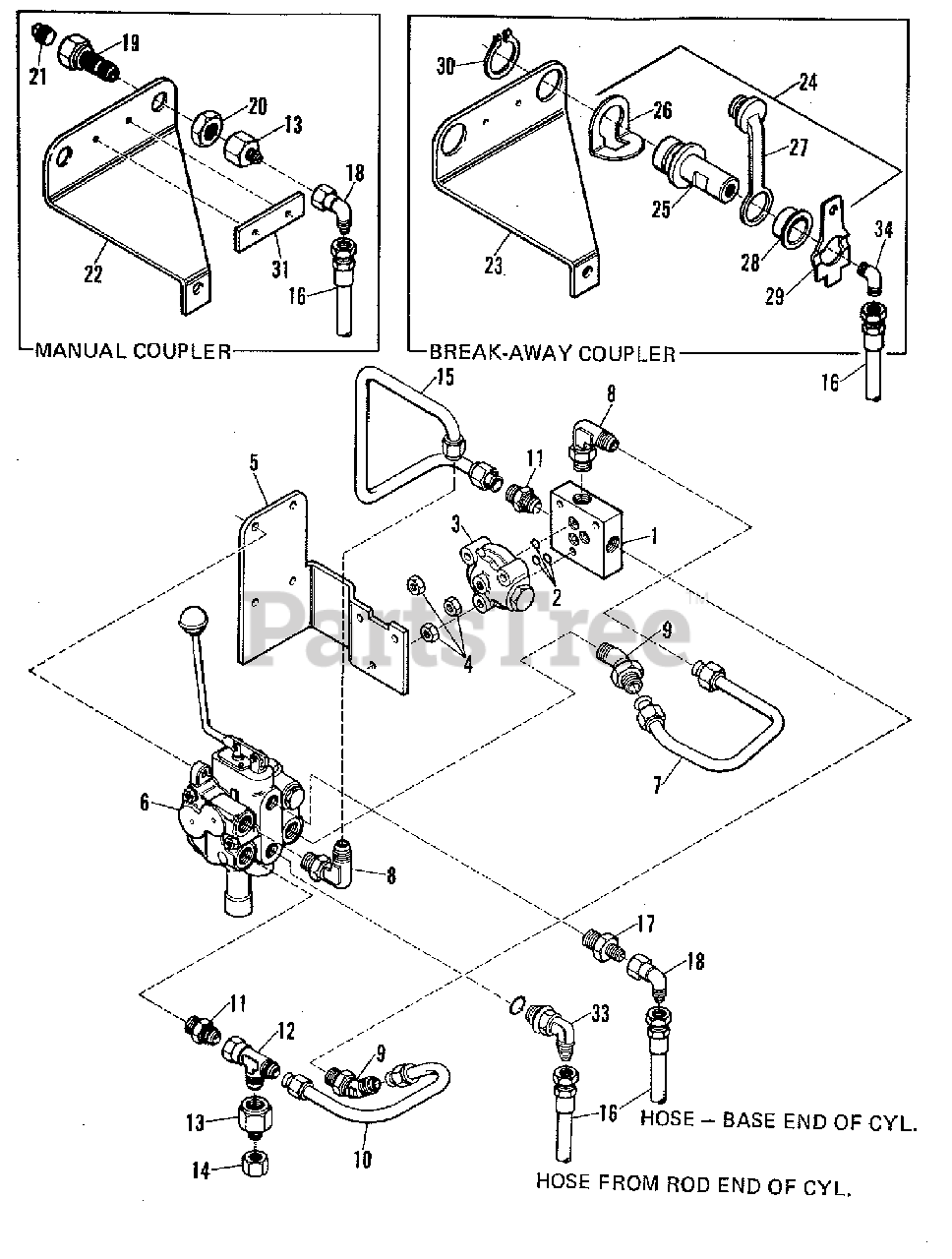

2109593 - Simplicity Model 64 Snow Thrower Attachment Hydraulic Lines - Breakaway Coupler & Valve w/o Control Valve Group (3482I110) Parts Diagram

Model 64 Snow Thrower Attachment

Hydraulic Lines - Breakaway Coupler & Valve w/o Control Valve Group (3482I110) Parts Diagram

  • Title

1

MANIFOLD

$

$

Not available

1

Simplicity 0923548-2

O-RING

$

$

Not available

1

Simplicity 0950025-7

CAPSCREW, M8 x 1-1/4 x 70MM

$

$

Not available

1

Simplicity 0950219-6

LOCKWASHER, M8

$

$

Not available

2

Simplicity 0924091-2

O-RING

$

$

Not available

3

Simplicity 2098189-0

COVER ASSEMBLY

$

$

Not available

4

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

5

Simplicity 2097067-9

BRACKET, Valve Mounting

$

$

Not available

5

Simplicity 0950027-3

CAPSCREW, M8 x 90, Gr. 8.8

$

$

Not available

5

Simplicity 0950888-8

CAPSCREW, M8 x 85, Gr. 8.8

$

$

Not available

5

Simplicity 0950219-6

LOCKWASHER, M8

$

$

Not available

6

Simplicity 2097068-7

VALVE ASSEMBLY, Remote

$

$

Not available

6

Simplicity 0920415-7

CAPSCREW, 3/8NC x 1-1/4

$

$

Not available

6

Simplicity 0916965-7

LOCKWASHER, 3/8

$

$

Not available

6

Simplicity 0916950-9

NUT, 3/8NC

$

$

Not available

7

Simplicity 2097073-7

TUBE ASSEMBLY (Manifold to Valve Inlet)

$

$

Not available

8

Simplicity 0921402-4

ELBOW, 90 Degrees (w/O-Ring)

$

$

Not available

8

Simplicity 0921349-7

O-RING

$

$

Not available

9

Simplicity 0922507-9

ELBOW, 45 Degrees (w/O-Ring)

$

$

Not available

9

Simplicity 0921349-7

O-RING

$

$

Not available

10

Simplicity 2097074-5

TUBE ASSEMBLY (Valve Outlet to Manifold)

$

$

Not available

11

Simplicity 0921409-9

CONNECTOR, Short (w/O-Ring)

$

$

Not available

11

Simplicity 0921349-7

O-RING

$

$

Not available

12

Simplicity 0921298-6

TEE

$

$

Not available

13

Simplicity 0926768-3

REDUCER, Tube

$

$

Not available

14

Simplicity 0919552-0

CAP

$

$

Not available

15

Simplicity 2097075-2

TUBE ASSEMBLY (Valve Outlet to Manifold)

$

$

Not available

16

Simplicity 2097076-0

HOSE, Remote

$

$

Not available

17

Simplicity 0922457-7

CONNECTOR, Reducer (w/O-Ring)

$

$

Not available

17

Simplicity 0921349-7

O-RING

$

$

Not available

18

Simplicity 0921013-9

ELBOW, Swivel Nut

$

$

Not available

19

Simplicity 0255017-6

UNION

$

$

Not available

20

Simplicity 0922015-3

NUT

$

$

Not available

21

Simplicity 0905261-4

PLUG, Pipe

$

$

Not available

22

Simplicity 2097077-8

BRACKET, Mounting (For Manual Coupler)

$

$

Not available

23

Simplicity 2097101-6

BRACKET, Mounting (For Breakaway Coupler)

$

$

Not available

24

Simplicity 0269390-1

COUPLER ASSEMBLY

$

$

Not available

25

Simplicity 0255018-4

COUPLER

$

$

Not available

26

Simplicity 0269166-5

HINGE

$

$

Not available

27

Simplicity 0255864-1

COVER, Dust

$

$

Not available

28

Simplicity 0269167-3

SPACER

$

$

Not available

29

Simplicity 0269168-1

HANDLE, Release

$

$

Not available

30

Simplicity 0926574-5

RING, Snap

$

$

Not available

31

Simplicity 2097147-9

STRIP

$

$

Not available

31

Simplicity 0923341-2

CAPSCREW, 1/4NC x 3/4

$

$

Not available

31

Simplicity 0916964-0

LOCKWASHER, 1/4

$

$

Not available

31

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

32

Simplicity 0255040-8

SEAL KIT, Coupling

$

$

Not available

33

Simplicity 0923905-4

ELBOW, Adjustable (w/O-Ring)

$

$

Not available

33

Simplicity 0921349-7

O-RING

$

$

Not available

34

Simplicity 0922322-3

ELBOW

$

$

Not available
