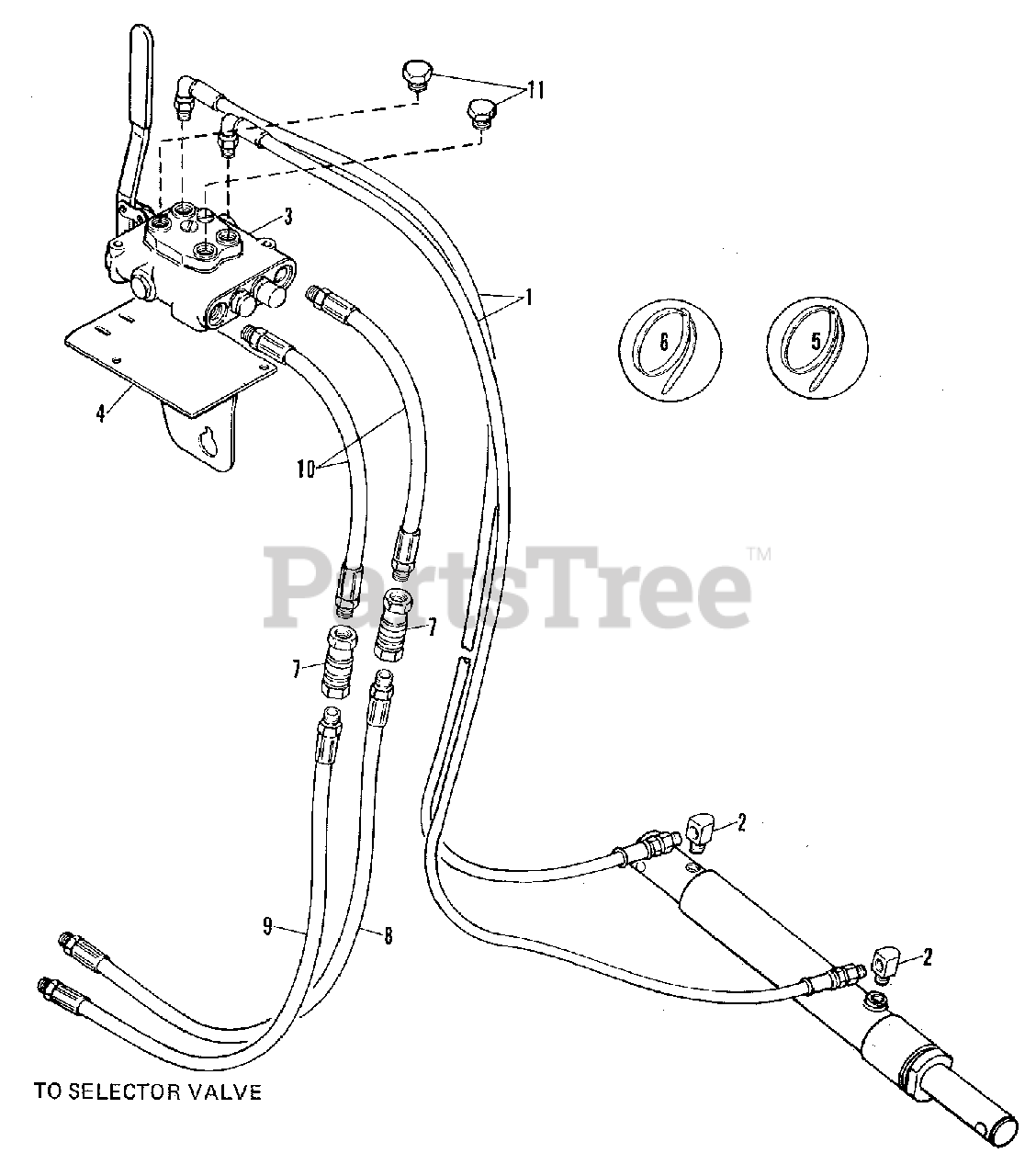

2109593 - Simplicity Model 64 Snow Thrower Attachment Hydraulic Lines - Cylinder & Control Valve Group (3482I109) Parts Diagram

Model 64 Snow Thrower Attachment

Hydraulic Lines - Cylinder & Control Valve Group (3482I109) Parts Diagram

  • Title

1

Simplicity 2109557-5

HOSE ASSEMBLY, 102" Long (Cylinder to Cotnrol Valve)

$

$

Not available

2

Simplicity 0932593-7

ELBOW, Street, 90 Degrees, 1/4NC

$

$

Not available

3

Simplicity 2096109-0

VALVE, Control

$

$

Not available

3

Simplicity 0921963-5

CAPSCREW, 1/4NC x 2

$

$

Not available

3

Simplicity 0916964-0

LOCKWASHER, 1/4

$

$

Not available

3

Simplicity 0916622-4

NUT, 1/4NC

$

$

Not available

4

Simplicity 2096110-8

BRACKET, Valve Mounting

$

$

Not available

4

Simplicity 0950019-0

CAPSCREW, 8MM x 25MM

$

$

Not available

4

Simplicity 0919311-1

LOCKWASHER, 5/16

$

$

Not available

4

Simplicity 0917377-4

WASHER, Plain, 5/16 x 3/4 x 16 Ga.

$

$

Not available

5

Simplicity 0925442-6

TIE, Plastic (To Tie 2 Hoses Together)

$

$

Not available

6

Simplicity 0929807-6

TIE, Plastic (To Tie 2 Hoses to Tractor)

$

$

Not available

7

Simplicity 2096043-1

COUPLER, Hose

$

$

Not available

8

Simplicity 2096125-6

HOSE ASSEMBLY (Selector Valve to Control)

$

$

Not available

9

Simplicity 2096126-4

HOSE ASSEMBLY (Control to Manifold)

$

$

Not available

10

Simplicity 2096127-2

HOSE ASSEMBLY (Valve Inlet & Outlet)

$

$

Not available

11

Simplicity 0922577-2

PLUG, Straight Thread, 9/16NC (w/O-Ring)

$

$

Not available

11

Simplicity 0921885-0

O-RING

$

$

Not available
