2109593 - Simplicity Model 64 Snow Thrower Attachment Hydraulic Lines - Selector Valve & Block Group (3482I111) Parts Diagram

Model 64 Snow Thrower Attachment

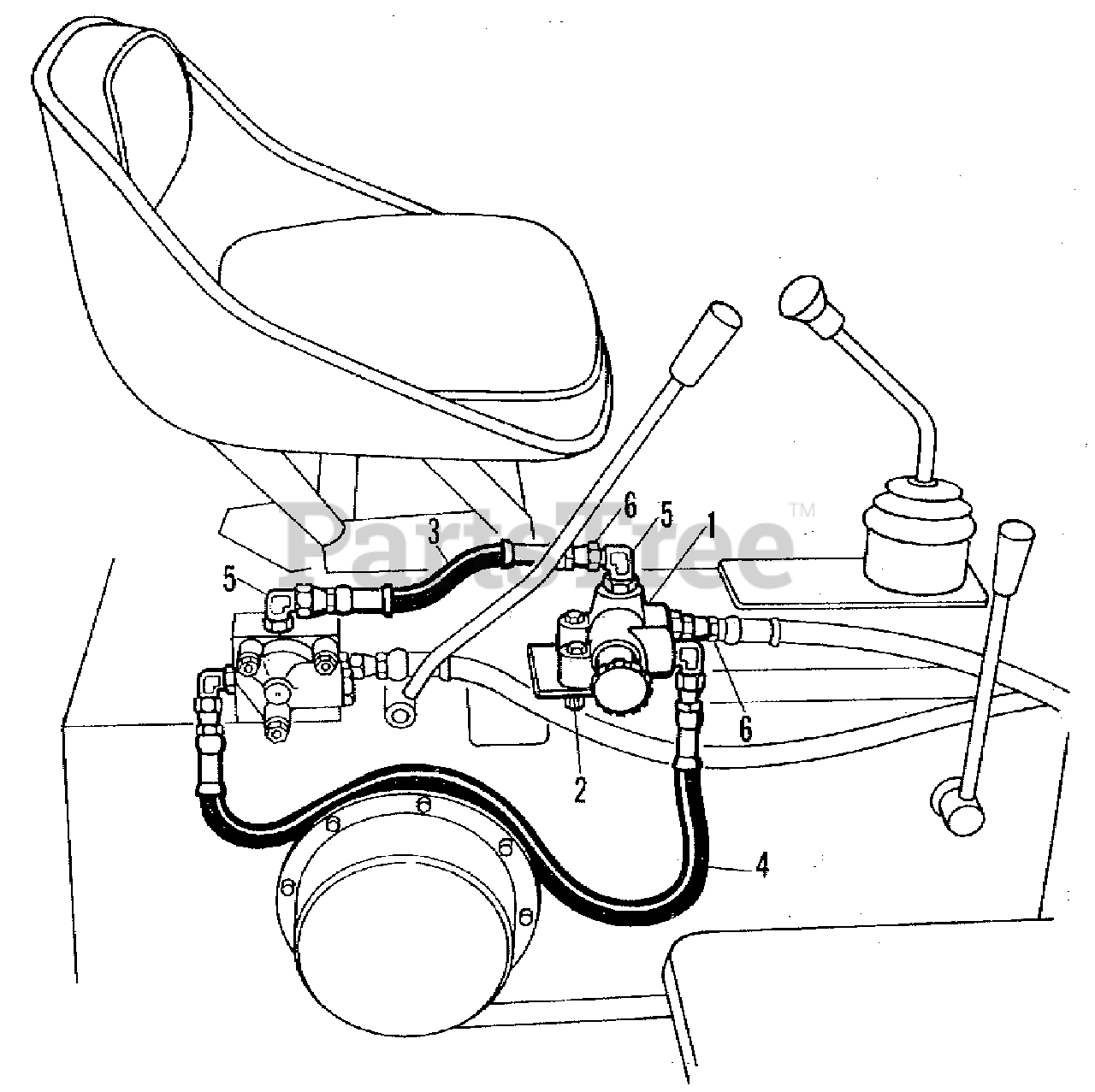

Hydraulic Lines - Selector Valve & Block Group (3482I111) Parts Diagram

  • Title

1

Simplicity 2096088-6

VALVE ASSEMBLY, Selector

$

$

Not available

1

Simplicity 2096222-1

VALVE ASSEMBLY, Selector

$

$

Not available

1

Simplicity 0921978-3

CAPSCREW, 5/16NC x 2

$

$

Not available

1

Simplicity 0917642-1

WASHER, Plain, 3/8 x 7/8 x 16 Ga.

$

$

Not available

1

Simplicity 0919311-1

LOCKWASHER, 5/16

$

$

Not available

1

Simplicity 0917372-5

NUT, 5/16NC

$

$

Not available

2

Simplicity 2096087-8

MOUNTING, Valve

$

$

Not available

3

Simplicity 2096089-4

HOSE ASSEMBLY, 9" Long (Selector Valve to Diverter Block)

$

$

Not available

4

Simplicity 2096090-2

HOSE ASSEMBLY, 28" Long (Selector Valve to Diverter Block)

$

$

Not available

5

Simplicity 2096086-0

ADAPTER, Elbow

$

$

Not available

6

Simplicity 2096091-0

CONNECTOR, Straight

$

$

Not available
