2109593 - Simplicity Model 64 Snow Thrower Attachment Hydraulics - Lift Cylinder Group (3482I115) Parts Diagram

Model 64 Snow Thrower Attachment

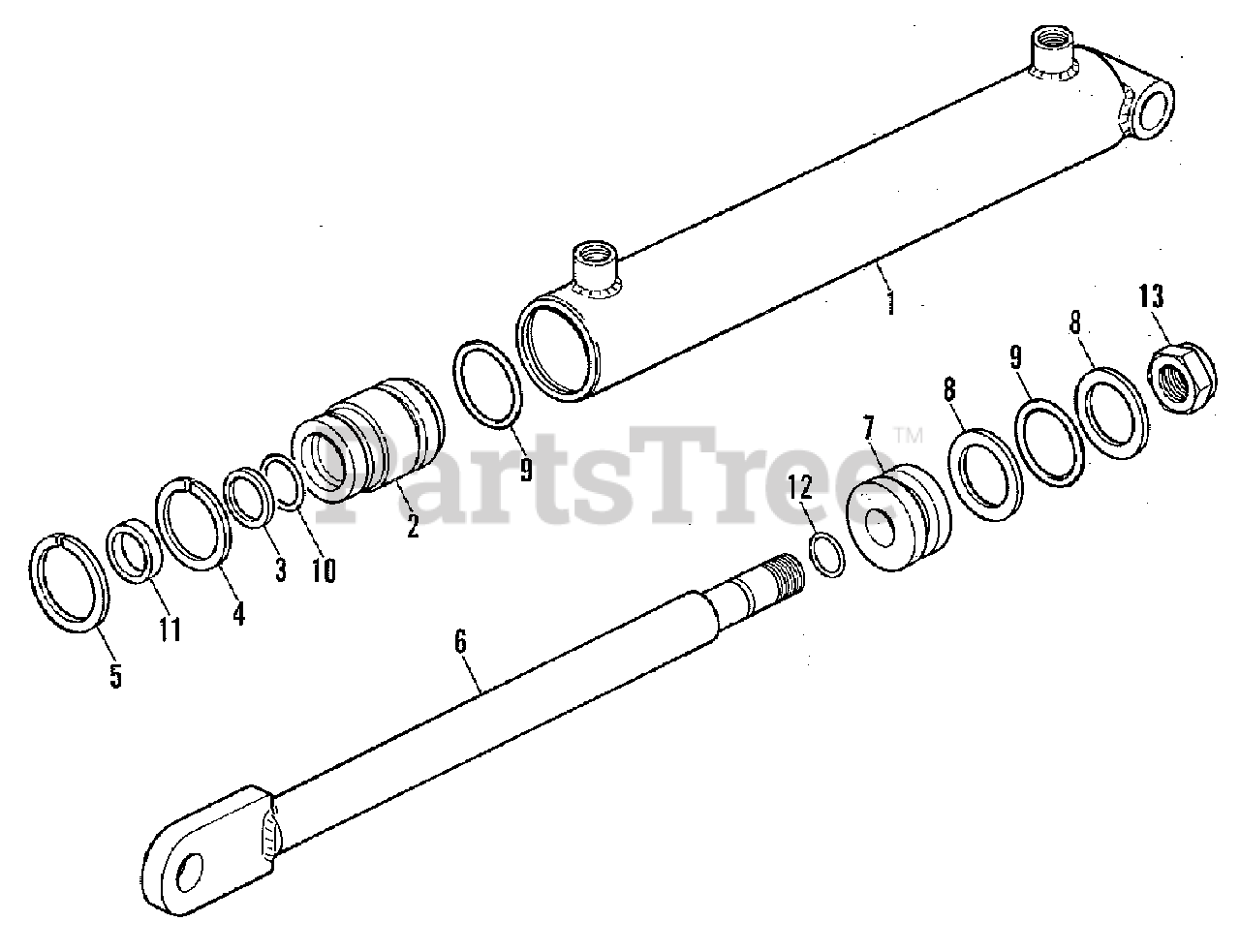

Hydraulics - Lift Cylinder Group (3482I115) Parts Diagram

  • Title

-

Simplicity 2109555-9

CYLINDER ASSEMBLY, Complete

$

$

Not available

-

Simplicity 2109583-1

SEAL KIT

$

$

Not available

1

Simplicity 2109584-9

BARREL ASSEMBLY

$

$

Not available

2

Simplicity 2109585-6

GLAND

$

$

Not available

3

O-RING, Backup (Small)

$

$

Not available

4

Simplicity 2109587-2

RING, Snap (Gland)

$

$

Not available

5

Simplicity 2109588-0

RING, Snap (Barrel)

$

$

Not available

6

Simplicity 2109589-8

ROD ASSEMBLY

$

$

Not available

7

Simplicity 2109590-6

PISTON

$

$

Not available

8

Simplicity 2109591-4

O-RING, Backup (Large)

$

$

Not available

9

O-RING, Gland & Piston Seal

$

$

Not available

10

O-RING, Rod Seal

$

$

Not available

11

SEAL, Rod Wiper

$

$

Not available

12

O-RING, Rod Static

$

$

Not available

13

Simplicity 0930245-6

NUT, Lock, 1/2NF

$

$

Not available
