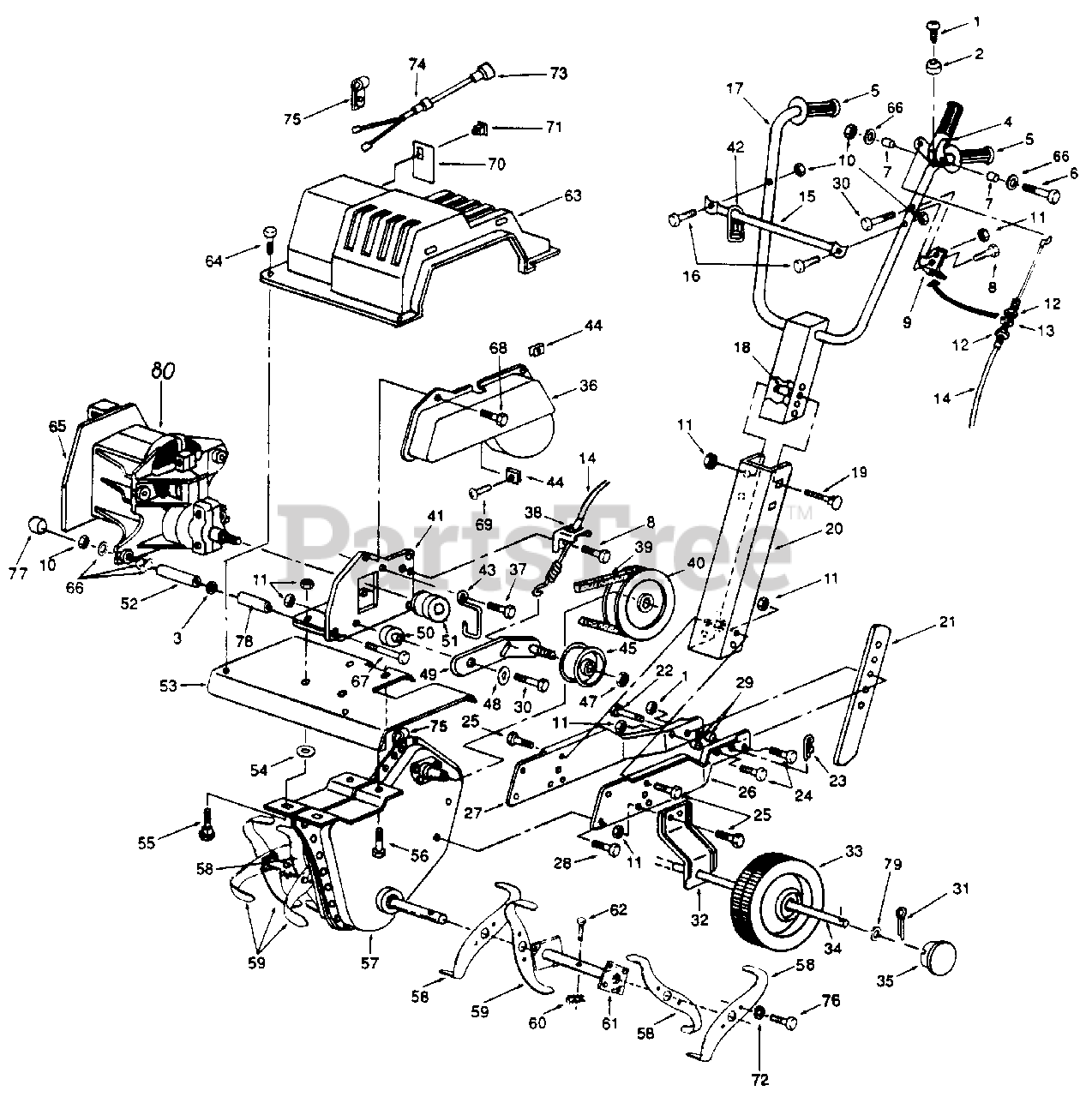

211-021-000 - MTD Tiller (1991) Parts04 Parts Diagram

Tiller

Parts04 Parts Diagram

  • Title

1

MTD 706-10125-08

Tap. Screw #10-16 x 1/2

$

$

Not available

2

MTD 706-14513

Rubber Bumper

$

$

Not available

3

MTD 706-15641

Spacer

$

$

Not available

4

MTD 706-14435-00-90

Clutch LeverAssembly
(Superseded to 686-0002-0637)

$38.99

$

Usually ships in 3-6 days

0

5

MTD 720-0233

HandleGrip
(Superseded to 920-0233)

$

$

Not available

6

MTD 710-0501

Hex Bolt 1/4-20 x 2

$6.99

$

In Stock, only 1 left!

0

7

MTD 706-10024-01

Spacer
(Superseded to 750-0846)

$

$

Not available

8

MTD 706-14546-08

Hex Tap. Scr. 1/4-14 x 1/2

$

$

Not available

9

MTD 15093C

Cable Bracket

$

$

Not available

10

MTD 712-0324

Lock Nut 1/4-20

$3.49

$

In Stock, Qty 20+

0

11

MTD 712-0429

Lock Nut 5/16-18

$3.99

$

In Stock, Qty 20+

0

12

MTD 712-0256

Hex Jam Nut 5/16-24

$

$

Not available

13

MTD 736-0119

Lock Washer 5/16 Spring
(Superseded to 936-0119)

$4.49

$

In Stock, Qty 20+

0

14

MTD 746-0509

Clutch Control Cable
(Superseded to 946-0926)

$39.99

$

In Stock, only 4 left!

0

15

MTD 706-14432-00-90

Bar-Cord Control

$

$

Currently unavailable

16

MTD 710-0106

Hex Bolt 1/4-20 x 1-1/4

$3.99

$

In Stock, only 1 left!

0

17

MTD 706-14564-01-90

Handle Assembly

$

$

Currently unavailable

18

MTD 706-14409

Spacer

$

$

Not available

19

MTD 710-0572

Carr. Bolt 5/16-18 x 2-1/4

$3.99

$

In Stock, only 4 left!

0

20

MTD 706-14410-00-90

Handle Channel - Frame

$

$

Not available

21

MTD 04764-00-90

Depth Stake

$

$

Not available

22

MTD 711-0653

Clevis Pin

$3.99

$

Usually ships in 3-6 days

0

23

MTD 714-0145

Hair Pin coner

$4.49

$

In Stock, Qty 20+

0

24

MTD 710-0376

Hex Bolt 5/16-18 x 1

$3.99

$

In Stock, Qty 17

0

25

MTD 710-0759

Hex Bolt 5/16-18 x 5/8

$6.49

$

Usually ships in 3-6 days

0

26

MTD 706-14428-00-90

LH Frame Ha

$

$

Not available

27

MTD 706-14427-00-90

RH Frame Han

$

$

Not available

28

MTD 710-0607

Hex Tap. Scr. 5/16-18 x 1/2

$6.49

$

In Stock, Qty 20+

0

29

MTD 706-14478

Spacer
(Superseded to 750-0808)

$

$

Not available

30

MTD 706-10058-10

Hex Bolt 5/16-18 x 1-1/4
(Superseded to 710-3038)

$4.49

$

In Stock, Qty 5

0

31

MTD 714-3017

coner Pin
(Superseded to 914-0111)

$4.49

$

In Stock, Qty 20+

0

32

MTD 706-14429-00-90

Wheel Bracket
(Superseded to 786-0012-0637)

$

$

Not available

33

MTD 706-15533-03

Wheel - 6

$

$

Not available

34

MTD 738-0855

Axle - Wheel

$

$

Not available

35

MTD 706-15581-00-60

Hub Cap
(Superseded to 720-0258)

$

$

Not available

36

MTD 706-14450-00-61

Belt Cover

$

$

Currently unavailable

37

MTD 710-0258

Hex Bolt 1/4-20 x 5/8
(Superseded to 710-0751)

$3.99

$

In Stock, Qty 20+

0

38

MTD 706-14446-00-90

Bracket-Clutch Lever

$

$

Currently unavailable

39

MTD 706-14524

V-Belt

Note: (Special)

$

$

Not available

40

MTD 756-0287

Pulley-Chain Case

$

$

Not available

41

MTD 706-14437-00-90

Plate-Motor Mounting

$

$

Currently unavailable

42

MTD 706-10146

Cord Minder

$

$

Not available

43

MTD 706-14453-01

Belt Retainer

$

$

Currently unavailable

44

MTD 706-10093

Clip-Tinnerrnan

$

$

Not available

45

MTD 756-0199

Flat Idler Pulley

$23.99

$

In Stock, only 2 left!

0

47

MTD 712-0116

Lock Nut 3/8-24 Hex Jam

$4.49

$

In Stock, Qty 7

0

48

MTD 736-0275

Flatwasher 5/16

$6.49

$

Usually ships in 3-6 days

0

49

MTD 706-14451-00-90

Idler Arm Assembly

$

$

Not available

50

MTD 706-14477

Pivot Spacer

$

$

Currently unavailable

51

MTD 706-14448

Motor Pulley

$

$

Currently unavailable

52

MTD 706-14439

Spacer

$

$

Not available

53

MTD 706-14449-01-10

Tine Shieb (Red)

$

$

Currently unavailable

54

MTD 706-15641

Spacer

$

$

Not available

55

MTD 710-0276

Carriage Bolt 5/16-18 x 1

$3.99

$

In Stock, Qty 20+

0

56

MTD 710-0118

Hex Bolt 5/16-1 8 x 3/4
(Superseded to 710-3008)

$3.99

$

In Stock, Qty 20+

0

57

MTD 04924A

Chain Case Ass'y Complet

$

$

Currently unavailable

58

MTD 706-14411-00-90

RH Tine Blade

$

$

Not available

59

MTD 706-14411-01-90

LH Tine Blade

$

$

Not available

60

MTD 714-0149B

Hair Pin coner

$3.99

$

In Stock, Qty 20+

0

61

MTD 706-14420-00-90

Adaptor Assembly-Tine

$

$

Not available

62

MTD 711-0702

Clevis Pin

$

$

Not available

63

MTD 706-14454-00-60

Motor Cover

$

$

Not available

64

MTD 706-14545-08

Tapping Screw #10 x 1/2

$

$

Currently unavailable

65

MTD 706-14500

Air Battle

$

$

Currently unavailable

66

MTD 706-10626-00-05

Flatwasher 1/4
(Superseded to 936-3020)

$

$

Not available

67

MTD 706-10028-52

Hex Bolt 1/4-20 x 3-1/4 Grade 5

$

$

Not available

68

MTD 706-14525-08

Nybn Screw 1/4-20 x 1/2

$

$

Not available

69

MTD 710-0399

Screw #10-24 x 1/2 Sems
(Superseded to 710-0473)

$3.99

$

In Stock, only 1 left!

0

70

MTD 706-14459

Decal- Rating

$

$

Currently unavailable

71

MTD 706-14260-01

Switch

$

$

Not available

72

MTD 736-0329

Lock Washer 1/4 Spring
(Superseded to 936-0329)

$4.49

$

In Stock, Qty 13

0

73

MTD 706-14502

Plug Assembly

$

$

Currently unavailable

74

MTD 706-10064

Strain Reliet - Heyco

$

$

Not available

75

MTD 706-10119

Cord Clamp

$

$

Currently unavailable

76

MTD 710-0599

Screw 1/4-20 x 1/2

$3.99

$

In Stock, Qty 20+

0

77

MTD 706-13924

End Cap Insulator

$

$

Not available

78

MTD 706-13923

Spacer Insulator

$

$

Currently unavailable

79

MTD 736-0185

Flat Washer 3/8

$3.49

$

In Stock, Qty 16

0

80

MTD 624-0018

Motor Ass'y Complete

$

$

Currently unavailable
