21103 - Toro Whirlwind Walk-Behind Mower (SN: 009000001 - 009999999) (1969) HANDLE ASSEMBLY Parts Diagram

Whirlwind Walk-Behind Mower

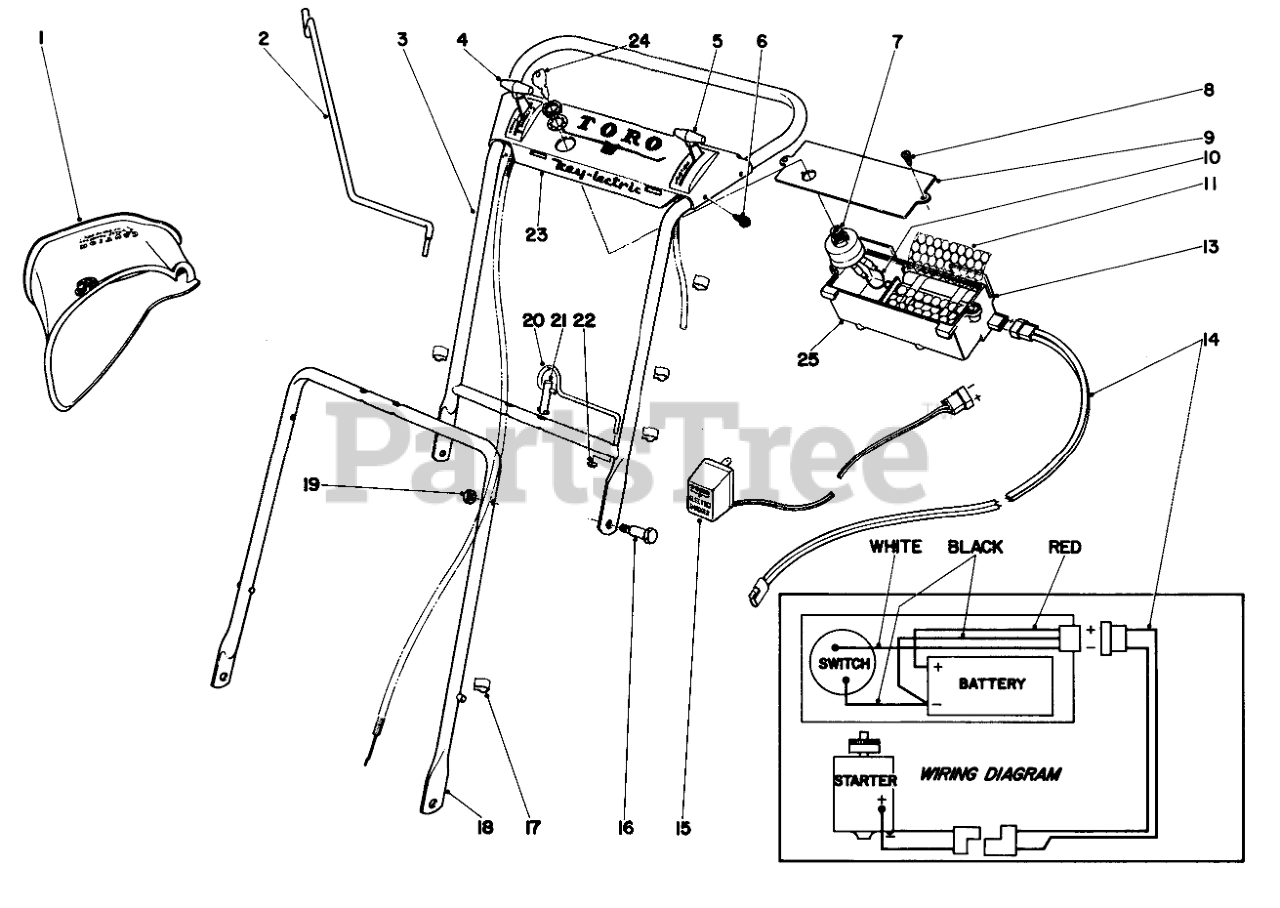

HANDLE ASSEMBLY Parts Diagram

  • Title

1

Toro 5-3442

Attachment Bag
(Superseded to 11-0460)

$178.99

$

Usually ships in 3-6 days

0

2

Toro 3-0690

GRASS BAG HANGER

$

$

Not available

3

Toro 5-4450

Handle-Upper

$

$

Currently unavailable

4

Toro 5-3551

Throttle Control
(Superseded to 46-6011)

$115.99

$

Usually ships in 3-6 days

0

5

Toro 5-3332

Traction Control
(Superseded to 46-6040)

$

$

Not available

6

Toro 32104-7

Self Tapping Screw

$

$

Currently unavailable

7

Toro 5-4023

Switch, Starter

$

$

Currently unavailable

8

Toro 32104-91

Self Tapping Screw

$

$

Not available

9

Toro 5-4022

Cover, Battery Pack

$

$

Currently unavailable

10

Toro 5-3773

Lead Wire

$

$

Currently unavailable

11

Toro 5-3726

Spacer-Battery

$

$

Not available

13

Toro 5-3730

Container Battery Pack

$

$

Currently unavailable

14

Toro 5-4556

Harness

$

$

Currently unavailable

Toro 5-4756

Harness

Note: Not illustrated

$

$

Currently unavailable

15

Toro 5-3524

Battery Charger

$

$

Not available

15

Toro 5-4545

Charger, Battery (Canadian)

$

$

Not available

16

Toro 5-4476

Screw

$

$

Not available

17

Toro 218-75

CONTROL WIRE CLIP

$

$

Not available

18

Toro 5-4424

Handle-Lower

$

$

Currently unavailable

19

Toro 32146-8

Nut
(Superseded to 32153-4)

$0.99

$

Usually ships in 3-6 days

0

20

Toro 5-4421

Pin, Latch

$

$

Currently unavailable

21

Toro 5-4422

Pin, Latch

$

$

Currently unavailable

22

Toro 3290-299

CLIP

$

$

Not available

23

Toro 5-3508

Escutcheon Plate

$

$

Currently unavailable

24

Toro 218-412

Key
(Superseded to 62-7770)

$4.99

$

In Stock, Qty 13

0

25

Toro 4-4599

Battery Pack Assy. (Incl. Ref. 10-13)

$

$

Currently unavailable

Toro 81064

Bag-Set of 2

Note: Not illustrated

$

$

Currently unavailable
