2111 SST (86220) - Snapper String Trimmer Handle Mount And Gear Head Assembly Parts Diagram

String Trimmer

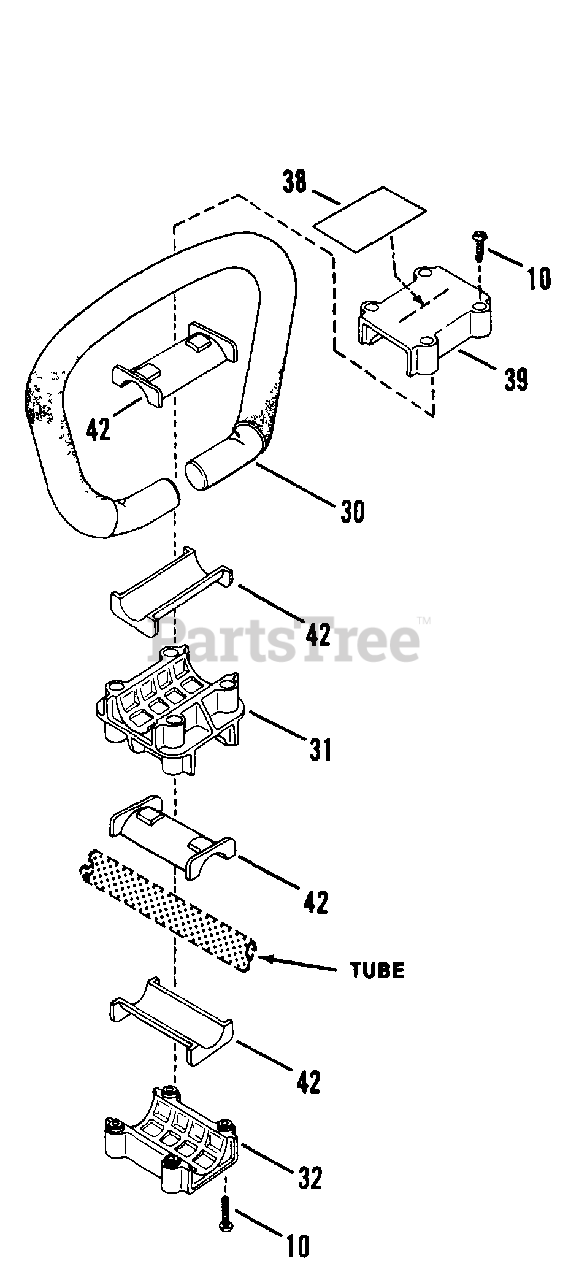

Handle Mount And Gear Head Assembly Parts Diagram

  • Title

10

Snapper 7090902

SCREW, #10-16 x 3/4"

$

$

Not available

30

Snapper 7051671

HANDLE ASSM'Y.,Loop

$

$

Not available

31

Snapper 7017001

HANDLE MOUNT, Center

$

$

Currently unavailable

32

Snapper 7018909

HANDLE MOUNT, Cap

$

$

Currently unavailable

38

Snapper 17521

DECAL, Replacement Part

$

$

Currently unavailable

39

Snapper 7051738

HANDLE MOUNT ASSEMBLY

Note: (Includes 1 of item 38)

$

$

Currently unavailable

42

Snapper 7015739

ISO-MOUNT (4)

$

$

Currently unavailable
