21136 - Toro 36cm Walk-Behind Mower, Electric (SN: 400000000 - 999999999) 36CM ELECTRIC LAWN MOWER ASSEMBLY Parts Diagram

36cm Walk-Behind Mower, Electric

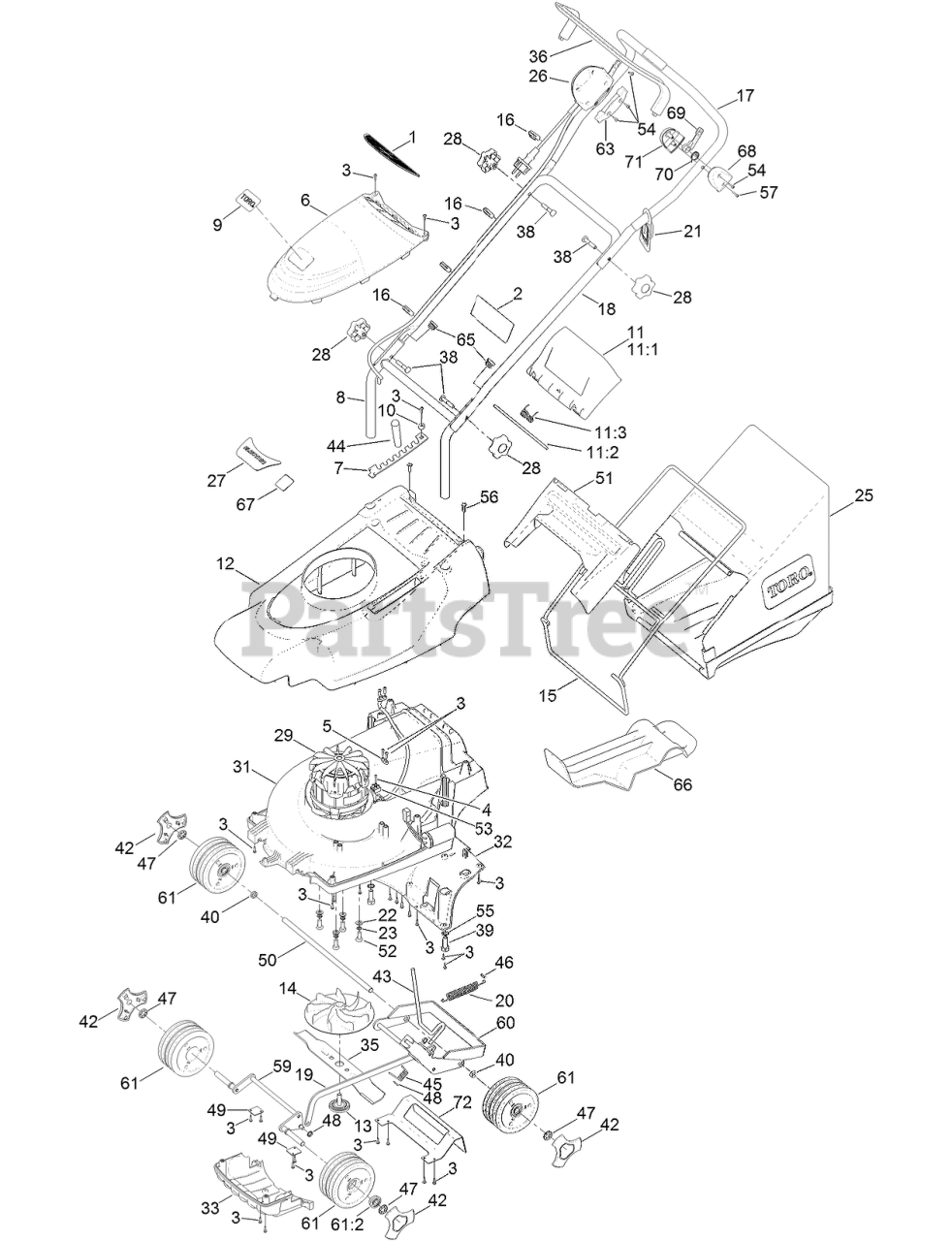

36CM ELECTRIC LAWN MOWER ASSEMBLY Parts Diagram

  • Title
1

Toro 111-8124

MOULDING-VENT, SUPPORT

$

$

Currently unavailable

2

Toro 111-5173

DECAL-SAFETY, ELECTRIC

$

$

Currently unavailable

3

$

$

Currently unavailable

4

$

$

Not available

5

Toro 111-0117

CLAMP-CABLE

$

$

Currently unavailable

6

Toro 111-3932

COVER-MOTOR

$

$

Currently unavailable

7

Toro 111-0539

PLATE-HOC

$

$

Currently unavailable

8

Toro 111-0540-03

HANDLEBAR-LOWER

$

$

Not available

9

Toro 111-4977

DECAL-TORO

$

$

Currently unavailable

10

Toro 111-0543

COVER-SCREW, HOC

$

$

Currently unavailable

11

FLAP-REAR ASM

Note: Not serviced separately

$

$

Not available

11:1

Toro 111-1042

DEFLECTOR-REAR

$

$

Not available

11:2

Toro 100126

ROD-DEFLECTOR

$

$

Currently unavailable

11:3

Toro 111-7417

SPRING-DEFLECTOR

$

$

Not available

12

Toro 111-3936

COVER-TOP

$

$

Currently unavailable

13

Toro 111-9966

BOLT-FIXING, CUTTERBAR

$

$

Not available

14

Toro 100014

CARRIER-CUTTERBAR

$

$

Currently unavailable

15

Toro 100016-03

FRAME-GRASSBAG

$

$

Not available

16

Toro 100023

CLIP-CABLE

$

$

Currently unavailable

17

Toro 100024

HANDLEBAR-UPPER

$

$

Currently unavailable

18

Toro 100025-03

HANDLEBAR-MIDDLE

$

$

Not available

19

Toro 100037

ROD-CONNECTING

$

$

Currently unavailable

20

Toro 100080

SPRING-BALANCE, COUNTER

$

$

Currently unavailable

21

Toro 100105

CLEAT-CABLE

$

$

Currently unavailable

22

Toro 09475

WASHER

$

$

Currently unavailable

23

Toro 03469

WASHER-SPRING

$

$

Not available

25

Toro 111-4009

GRASSBAG

$

$

Currently unavailable

26

Toro 111-4069

SWITCH AND LEAD ASM

$

$

Currently unavailable

27

$

$

Currently unavailable

28

Toro 480088

KNOB-HANDLEBAR

$

$

Not available

29

$

$

Not available

31

Toro HY100003

UNDERDECK

$

$

Currently unavailable

32

Toro HY100004

THROWPLATE

$

$

Currently unavailable

33

$

$

Currently unavailable

35

Toro HY100012

CUTTERBAR

$

$

Currently unavailable

36

Toro HY100017

ARM-BAIL

$

$

Not available

38

Toro HY226024

BOLT-HANDLEBAR

$

$

Not available

39

Toro 09392

SCREW-HH

$

$

Not available

40

Toro HY100030

SPACER-WHEEL, REAR

$

$

Currently unavailable

42

Toro 111-4011

CAP-HUB

$1.49

$

Usually ships in 3-6 days

0

43

Toro HY100038

LEVER-HOC

$

$

Currently unavailable

44

Toro 480134

KNOB-HOC

$

$

Currently unavailable

45

Toro HY100041

SPRING-HOC

$

$

Currently unavailable

46

Toro HY100042

PIN-SPRING, HOC

$

$

Currently unavailable

47

Toro HY100047

WASHER-STARLOCK

$

$

Currently unavailable

48

Toro 0201086

WASHER-STARLOCK

$

$

Not available

49

Toro HY100064

PLATE-PIVOT, AXLE

$

$

Currently unavailable

50

Toro HY100068

ROD-AXLE, REAR

$

$

Currently unavailable

51

Toro HY100075

TOP-GRASSBAG

$

$

Currently unavailable

52

Toro HY100076

BOLT-MOTOR

$

$

Currently unavailable

53

Toro HY100077

BLOCK-TERMINAL

$

$

Currently unavailable

54

$

$

Currently unavailable

55

Toro HY100079

WASHER

$

$

Currently unavailable

56

Toro 09687

SCREW

$

$

Currently unavailable

57

Toro HY100128

SCREW-PPH

$

$

Not available

59

Toro HY100503

FRONT AXLE ASM

$

$

Currently unavailable

60

Toro HY100504

REAR AXLE ASM

$

$

Currently unavailable

61

Toro HY100505

WHEEL ASM

$

$

Currently unavailable

61:2

Toro HY100033

BEARING-WHEEL

$

$

Not available

63

Toro HY100021

SWITCH-LEFT, LOWER

$

$

Currently unavailable

65

Toro 300160

PLUG-TUBE

$

$

Not available

66

Toro 111-4377

PLUG-MULCHING

$23.99

$

Usually ships in 3-6 days

0

67

Toro 320006

DECAL-HOC

$

$

Currently unavailable

68

Toro 100085

MOUNT-LEFT

$

$

Currently unavailable

69

Toro HY100088

LEVER-MOUNT

$

$

Currently unavailable

70

Toro HY100087

SPRING-BAILARM

$

$

Currently unavailable

71

Toro 100086

MOUNT-RIGHT

$

$

Currently unavailable

72

Toro 111-4915-03

GUARD-PLATE, AXLE

$

$

Currently unavailable
