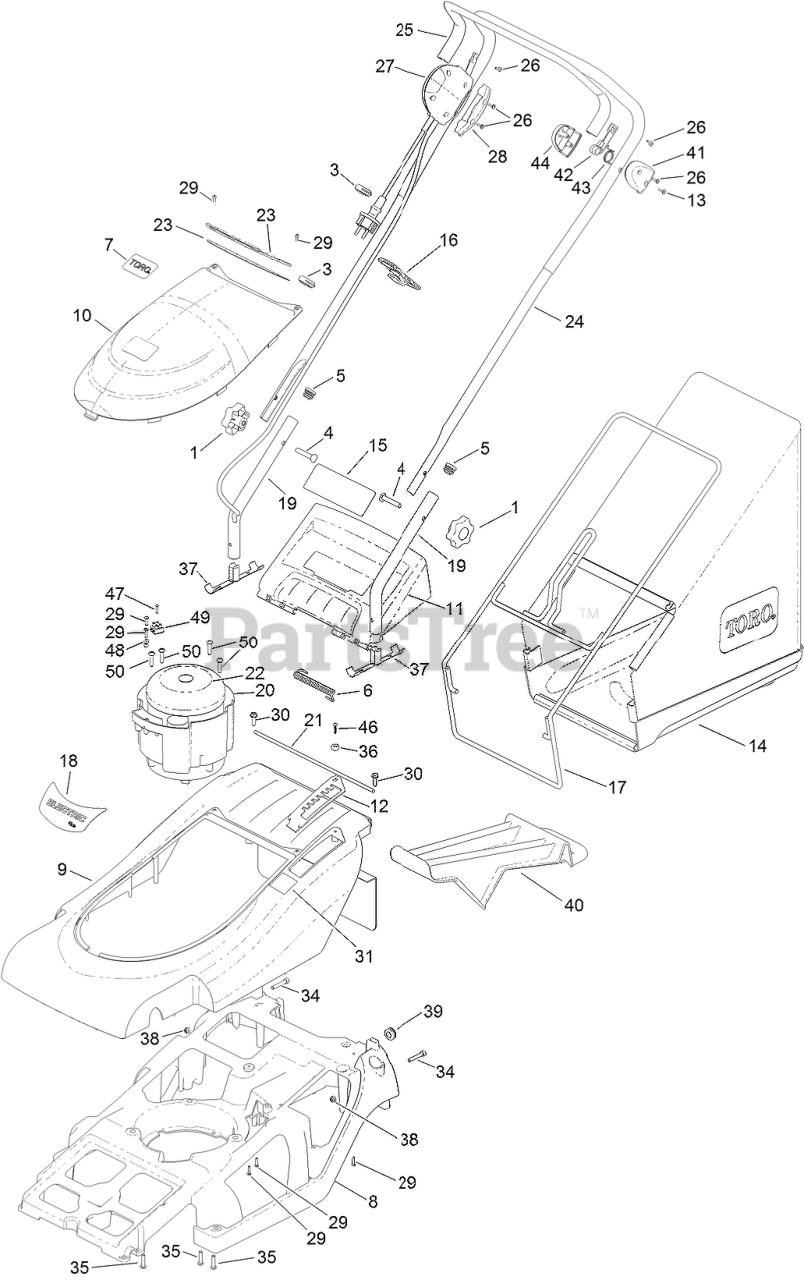

21141 - Toro 41cm Walk-Behind Mower, Electric (SN: 316000001 - 316999999) (2016) > Parts Diagrams (2) > UPPER ASSEMBLY

  • Title
480088

1

KNOB-HANDLEBAR

Part# 480088

OEM Warranty Repair Part for Toro

Not available

100023

3

CLIP-CABLE

Part# 100023

OEM Warranty Repair Part for Toro

Currently unavailable

HY226024

4

BOLT-HANDLEBAR

Part# HY226024

OEM Warranty Repair Part for Toro

Not available

300160

5

PLUG-TUBE

Part# 300160

OEM Warranty Repair Part for Toro

Not available

410030

6

SPRING-DEFLECTOR

Part# 410030

OEM Warranty Repair Part for Toro

Currently unavailable

111-4977

7

DECAL-TORO

Part# 111-4977

OEM Warranty Repair Part for Toro

Currently unavailable

111-0031-07

8

CHASSIS

Part# 111-0031-07

OEM Warranty Repair Part for Toro

Not available

111-3978

9

TOP-COVER

Part# 111-3978

OEM Warranty Repair Part for Toro

Currently unavailable

111-3977

10

COVER-MOTOR

Part# 111-3977

OEM Warranty Repair Part for Toro

Currently unavailable

111-1043

11

MOULDING-DEFLECTOR, REAR

Part# 111-1043

OEM Warranty Repair Part for Toro

Not available

111-0040

12

PLATE-HOC

Part# 111-0040

OEM Warranty Repair Part for Toro

Currently unavailable

HY100128

13

SCREW-PPH

Part# HY100128

OEM Warranty Repair Part for Toro

Not available

111-4025

14

GRASSBAG

Part# 111-4025

OEM Warranty Repair Part for Toro

Currently unavailable

111-5173

15

DECAL-SAFETY, ELECTRIC

Part# 111-5173

OEM Warranty Repair Part for Toro

Currently unavailable

100105

16

CLEAT-CABLE

Part# 100105

OEM Warranty Repair Part for Toro

Currently unavailable

111-0045-03

17

FRAME-GRASSBAG

Part# 111-0045-03

OEM Warranty Repair Part for Toro

Not available

111-4073

18

DECAL

Part# 111-4073

OEM Warranty Repair Part for Toro

Currently unavailable

111-0051-03

19

HANDLEBARS-LOWER

Part# 111-0051-03

OEM Warranty Repair Part for Toro

Not available

111-0052

20

MOULDING-MOUNT, ELECTRIC MOTOR

Part# 111-0052

OEM Warranty Repair Part for Toro

Currently unavailable

111-0056

21

BAR-HINGE

Part# 111-0056

OEM Warranty Repair Part for Toro

Currently unavailable

309052

22

MOTOR-INDUCTION, 1.5KW

Part# 309052

OEM Warranty Repair Part for Toro

Not available

111-8124

23

MOULDING-VENT, SUPPORT

Part# 111-8124

OEM Warranty Repair Part for Toro

Currently unavailable

111-0091

24

HANDLEBARS-ELECTRIC

Part# 111-0091

OEM Warranty Repair Part for Toro

Currently unavailable

HY100017

25

ARM-BAIL

Part# HY100017

OEM Warranty Repair Part for Toro

Not available

HY100078

26

SCREW

Part# HY100078

OEM Warranty Repair Part for Toro

Not available

111-4070

27

SWITCH AND LEAD ASM

Part# 111-4070

OEM Warranty Repair Part for Toro

Currently unavailable

HY100021

28

SWITCH-LEFT, LOWER

Part# HY100021

OEM Warranty Repair Part for Toro

Currently unavailable

111-0094

29

SCREW

Part# 111-0094

OEM Warranty Repair Part for Toro

Not available

09575

30

SCREW-TAPTITE

Part# 09575

OEM Warranty Repair Part for Toro

Not available

320006

31

DECAL-HOC

Part# 320006

OEM Warranty Repair Part for Toro

Currently unavailable

111-0118

34

SCREW-SOCKET

Part# 111-0118

OEM Warranty Repair Part for Toro

Not available

111-6841

35

SCREW

Part# 111-6841

OEM Warranty Repair Part for Toro

Currently unavailable

111-0107

36

CUP-SCREW, ELECTRIC

Part# 111-0107

OEM Warranty Repair Part for Toro

Currently unavailable

111-0960

37

PLUG-HANDLEBAR

Part# 111-0960

OEM Warranty Repair Part for Toro

Currently unavailable

09438

38

NUT-NYLOC

Part# 09438

OEM Warranty Repair Part for Toro

Not available

111-2155

39

GROMMET-RUBBER

Part# 111-2155

OEM Warranty Repair Part for Toro

Not available

111-4382

40

PLUG-MULCHING

Part# 111-4382

OEM Warranty Repair Part for Toro

Currently unavailable

100085

41

MOUNT-LEFT

Part# 100085

OEM Warranty Repair Part for Toro

Currently unavailable

HY100088

42

LEVER-MOUNT

Part# HY100088

OEM Warranty Repair Part for Toro

Currently unavailable

HY100087

43

SPRING-BAILARM

Part# HY100087

OEM Warranty Repair Part for Toro

Currently unavailable

100086

44

MOUNT-RIGHT

Part# 100086

OEM Warranty Repair Part for Toro

Currently unavailable

111-6806

46

SCREW-PLASTITE

Part# 111-6806

OEM Warranty Repair Part for Toro

Currently unavailable

111-7110

47

SCREW-DRIVE, PLASTITE

Part# 111-7110

OEM Warranty Repair Part for Toro

Not available

111-0117

48

CLAMP-CABLE

Part# 111-0117

OEM Warranty Repair Part for Toro

Currently unavailable

HY100077

49

BLOCK-TERMINAL

Part# HY100077

OEM Warranty Repair Part for Toro

Currently unavailable

111-0115

50

SCREW

Part# 111-0115

OEM Warranty Repair Part for Toro

Currently unavailable
