21172 - Toro Guardian Walk-Behind Mower (SN: 001000001 - 001999999) (1971) Engine Tecumseh Model No. Lav35-40595j Parts Diagram

Guardian Walk-Behind Mower

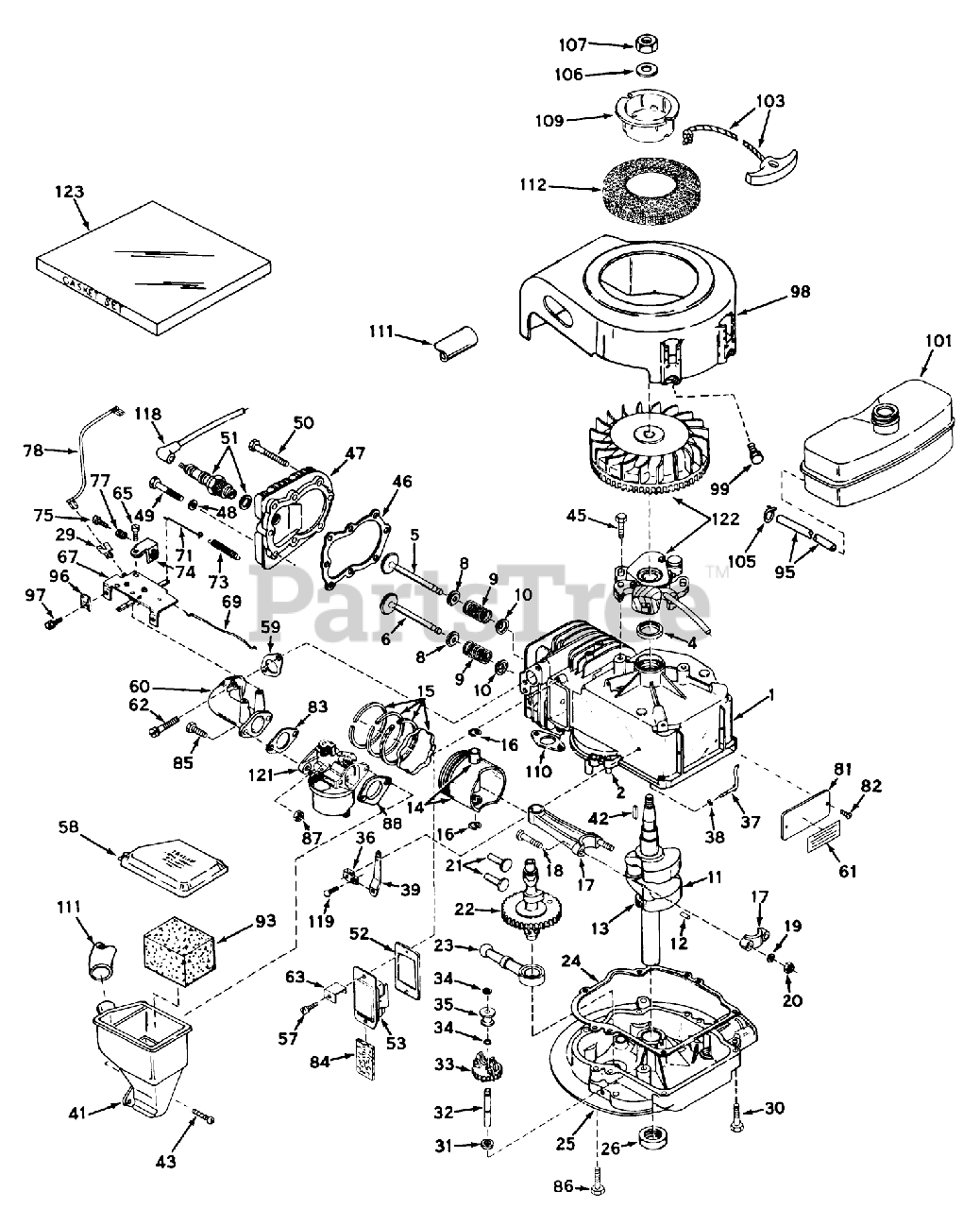

Engine Tecumseh Model No. Lav35-40595j Parts Diagram

  • Title

1

Toro 32616

Cylinder Assy. (Incl. Ref. 2 4)

$

$

Currently unavailable

2

Toro 26727

Pin-Dowel

$

$

Currently unavailable

4

Toro 29183

OIL SEAL

Note: Indicates items included in repair kit Part No. 31409D.

$

$

Currently unavailable

5

Toro 29314A

Valve, Intake (Incl. Ref. #38, 39 40) (Std.)

$

$

Currently unavailable

5

Toro 29316A

Valve, Intake(1/32"overs.)(Incl. Ref. 8, 9 10)

$

$

Currently unavailable

6

Toro 29313A

Valve, Exhaust (Standard)(Incl. Ref. 8, 9 10)

$

$

Currently unavailable

6

Toro 29315A

Valve, Exhaust (1/32" Overs.(Incl. Ref. 8, 9 10)

$

$

Currently unavailable

8

Toro 31671

Cap-Upper Valve Spring

$

$

Currently unavailable

9

Toro 31672

Spring-Valve

$

$

Currently unavailable

10

Toro 31673

Cap-Valve, Spring
(Superseded to 742357)

$

$

Not available

11

Toro 29223

Crankshaft Assy. (Incl. Ref. 12 13)(Model LAV35-40455H)

$

$

Currently unavailable

12

Toro 29783

Pin, Groove

$

$

Currently unavailable

13

Toro 27613

Gear, Crankshaft

$

$

Currently unavailable

14

Toro 31307

Piston Pin Assy. (Incl. 2 of No. 16)(Standard)

$

$

Currently unavailable

14

Toro 31308

Piston Pin Assy. (Incl. 2 of No. 16)(.010 oversize)

$

$

Currently unavailable

14

Toro 31309

53020 ADN. TO 28594

$3.23

$

Usually ships in 3-6 days

0

15

Toro 28986

Piston Ring Set Std.

$

$

Currently unavailable

15

Toro 28987

Piston Ring Set .010 O.S.

$

$

Currently unavailable

15

Toro 28988

Piston Ring Set .020 O.S.

$

$

Currently unavailable

16

Toro 20381

Ring-Retaining, Piston Pin

$

$

Currently unavailable

17

Toro 30963B

Rod Assy., Connecting (Incl. Ref. #17)

$

$

Currently unavailable

18

Toro 26706

Bolt, Connecting

$

$

Currently unavailable

19

Toro 20747

Washer

$

$

Currently unavailable

20

Toro 27573

LOCKNUT

$

$

Currently unavailable

21

Toro 27241

Lifter-Valve

$

$

Currently unavailable

22

Toro 32260

Camshaft

$

$

Currently unavailable

23

Toro 29914

Oil Pump ASM

$

$

Currently unavailable

24

Toro 26750A

Gasket, Mounting

Note: Indicates items included in repair kit Part No. 31409D.

$

$

Currently unavailable

25

Toro 33173

Flange Assy., Mounting (Incl. #26 32)

$

$

Currently unavailable

26

Toro 26208

Seal Oil

Note: Indicates items included in repair kit Part No. 31409D.

$

$

Currently unavailable

29

Toro 33177

Terminal

$

$

Currently unavailable

30

Toro 650488

Screw (1/4-20 x 1-1/4)

$

$

Currently unavailable

31

Toro 30590A

Washer-Flat

$

$

Currently unavailable

32

Toro 30574

Shaft-Governor

$

$

Currently unavailable

33

Toro 30591

Governor Gear ASM

$

$

Currently unavailable

34

Toro 29193

Ring-Retaining

$

$

Currently unavailable

35

Toro 30588A

Spool-Governor

$

$

Currently unavailable

36

Toro 31335

Clamp-Lever, Governor

$

$

Currently unavailable

37

Toro 30589

Rod, Governor (Incl. No. 36)

$

$

Currently unavailable

38

Toro 28277

Washer-Flat

$

$

Currently unavailable

39

Toro 32651

Governor Lever

$

$

Currently unavailable

41

Toro 33005

Body, Air Cleaner

$

$

Currently unavailable

42

Toro 27247

Key Flywheel

$

$

Currently unavailable

43

Toro 650707

Screw, Fil. Hd. Sems

$

$

Currently unavailable

45

Toro 650489

Screw

$

$

Currently unavailable

46

Toro 29953B

Gasket-Cylinder Head

Note: Indicates items included in repair kit Part No. 31409D.

$

$

Currently unavailable

47

Toro 30579

CYLINDER HEAD

$

$

Currently unavailable

48

Toro 26073

Washer

$

$

Currently unavailable

49

Toro 6021

Screw

$

$

Currently unavailable

50

Toro 650694

Screw Hex Hd. Cap

$

$

Currently unavailable

51

Toro 21943

SPARK PLUG

$

$

Currently unavailable

52

Toro 31619

Gasket Breather

Note: Indicates items included in repair kit Part No. 31409D.

$

$

Currently unavailable

53

Toro 31337

Breather Assembly (Incl. Nos. 52 84)

$

$

Currently unavailable

57

Toro 650128

Screw

$

$

Currently unavailable

58

Toro 33007

Cover, Air Cleaner

$

$

Currently unavailable

59

Toro 30188

Gasket, Intake

Note: Indicates items included in repair kit Part No. 31409D.

$

$

Currently unavailable

60

Toro 33004

Pipe, Intake

$

$

Currently unavailable

61

Toro 31865

480B GIL SNWTHWR O/

$3.23

$

Usually ships in 3-6 days

0

62

Toro 650176

Screw, Fil. Hd. Sems

$

$

Currently unavailable

63

Toro 30593

Retainer Clip

$

$

Currently unavailable

65

Toro 30200

Screw (10-24 x 9/16)

$

$

Currently unavailable

67

Toro 33155

Control Assy., Speed

$

$

Currently unavailable

69

Toro 33133

Link Governor

$

$

Not available

71

Toro 32653

Link-Governor

$

$

Currently unavailable

73

Toro 31386

Spring, Governor

$

$

Currently unavailable

74

Toro 33150

Brachet, Control

$

$

Currently unavailable

75

Toro 650688

Screw, Hex Hd.

$

$

Currently unavailable

77

Toro 32924

Spring

$

$

Currently unavailable

78

Toro 31388

Wire, Ground

$

$

Currently unavailable

81

Toro 31345

IDENTIFICATION PLATE

$

$

Currently unavailable

82

Toro 28670

Stud

$

$

Not available

83

Toro 26756

Gasket

Note: Indicates items included in repair kit Part No. 31409D.

$

$

Currently unavailable

84

Toro 31410

Element-Breather

$

$

Currently unavailable

85

Toro 6201

See Supercession: 111-1250
(Superseded to 111-1250)

$

$

Not available

86

Toro 650599

Screw

$

$

Currently unavailable

87

Toro 29752

Nut and Lock Washer (1/4-28)

$

$

Currently unavailable

88

Toro 33051

Gasket-Air Cleaner

Note: Indicates items included in repair kit Part No. 31409D.

$

$

Currently unavailable

93

Toro 33006

Element, Air Cleaner

$

$

Currently unavailable

95

Toro 29774

Line-Fuel (8.62)

$

$

Currently unavailable

96

Toro 27793

Conduit

$

$

Currently unavailable

97

Toro 28942

Screw (10-32 x 3/8)

$

$

Currently unavailable

98

Toro 33176

Housing, Blower

$

$

Currently unavailable

99

Toro 650561

Screw (1/4-20x19/32)

$

$

Currently unavailable

101

Toro 32170A

Tank, Fuel

$

$

Currently unavailable

103

Toro 590343

Rope Assy., Starter

$

$

Currently unavailable

105

Toro 26460

Clamp-Line, Fuel

$

$

Currently unavailable

106

Toro 650490

Washer

$

$

Currently unavailable

107

Toro 650607

Hex Nut

$

$

Currently unavailable

109

Toro 32723

Pulley Starter

$

$

Currently unavailable

110

Toro 30081

Gasket Exhaust

Note: Indicates items included in repair kit Part No. 31409D.

$

$

Currently unavailable

111

Toro 33008

Tube, Air Cleaner

$

$

Currently unavailable

112

Toro 590417

Screen, Air

$

$

Currently unavailable

118

Toro 610118

Cover-Spark Plug

$

$

Currently unavailable

119

Toro 650548

Screw

$

$

Currently unavailable

121

Toro 631581

Carburetor

$

$

Currently unavailable

122

Toro 610772

Magneto

$

$

Currently unavailable

123

Toro 31409D

Gasket Set (Incl. Items Marked *)

Note: Indicates items included in repair kit Part No. 31409D.

$

$

Currently unavailable
