21173 - Toro Guardian Walk-Behind Mower (SN: 003000001 - 003999999) (1973) Handle Assembly Model No. 21173 Parts Diagram

Guardian Walk-Behind Mower

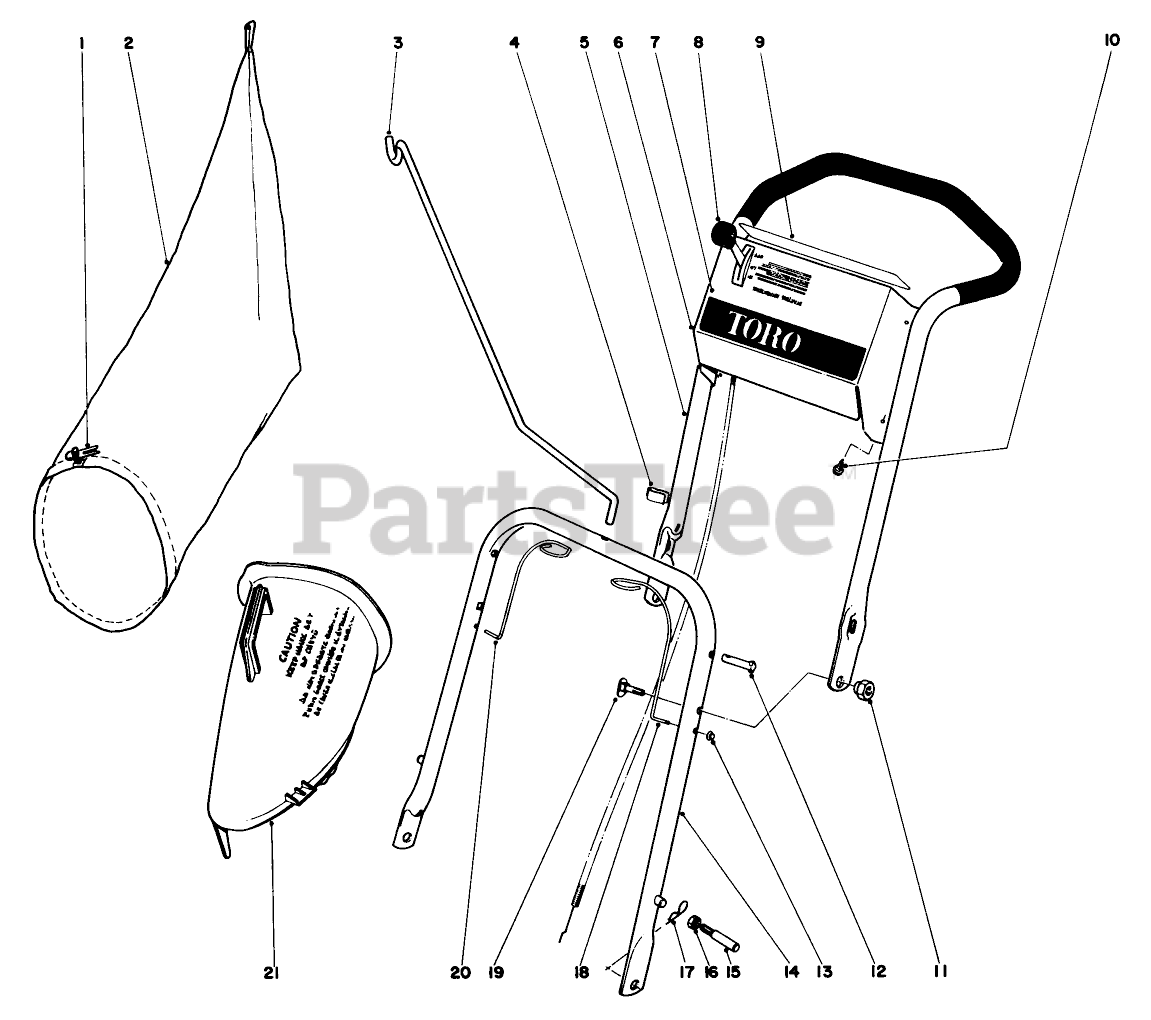

Handle Assembly Model No. 21173 Parts Diagram

  • Title

1

Toro 3-2781

BAG CORD FASTENER

$

$

Not available

2

Toro 5-8679

DISCONTINUED

$

$

Not available

3

Toro 17-4610

Bag Hanger Rod

$

$

Currently unavailable

4

Toro 218-465

BOWDEN CLIP

$

$

Not available

5

Toro 17-4390

See Supercession: 17-4400
(Superseded to 17-4400)

$262.99

$

Usually ships in 3-6 days

0

6

Toro 17-4510

DISCONTINUED

$

$

Not available

7

Toro 17-4540

Decal, Control Plate

$

$

Currently unavailable

8

Toro 17-4320

See Supercession: 46-6010
(Superseded to 46-6010)

$

$

Not available

9

Toro 17-4800

Decal, Safety

$

$

Currently unavailable

10

Toro 32104-76

SCREW-HWHTF

$2.99

$

In Stock, Qty 5

0

11

Toro 17-7010

DISCONTINUED

$

$

Not available

12

Toro 17-4680

DISCONTINUED PER DAVE

$

$

Not available

13

Toro 3290-299

DISCONTINUED

$

$

Not available

14

Toro 17-7490

Lower Handle

$

$

Currently unavailable

15

Toro 6-6940

See Supercession: 17-9380
(Superseded to 17-9380)

Note: Replacement Parts Only

$

$

Not available

16

Toro 32146-8

See Supercession: 32153-4
(Superseded to 32153-4)

Note: Replacement Parts Only

$0.99

$

Usually ships in 3-6 days

0

17

Toro 3290-255

PIN-COTTER, HAIR

$9.49

$

In Stock, only 1 left!

0

18

Toro 17-4660

Latch Spring L.H.

$

$

Currently unavailable

19

Toro 6-6330

DISCONTINUED

$

$

Not available

20

Toro 17-4670

DISCONTINUED PER DAVE

$

$

Not available

21

Toro 12-0750

BAG ATTACHMENT

$181.99

$

Usually ships in 3-6 days

0
