21190 - Toro 41cm Walk-Behind Mower, Electric (SN: 311000001 - 311999999) (2011) HANDLE, COVER AND GRASSBAG ASSEMBLY Parts Diagram

41cm Walk-Behind Mower, Electric

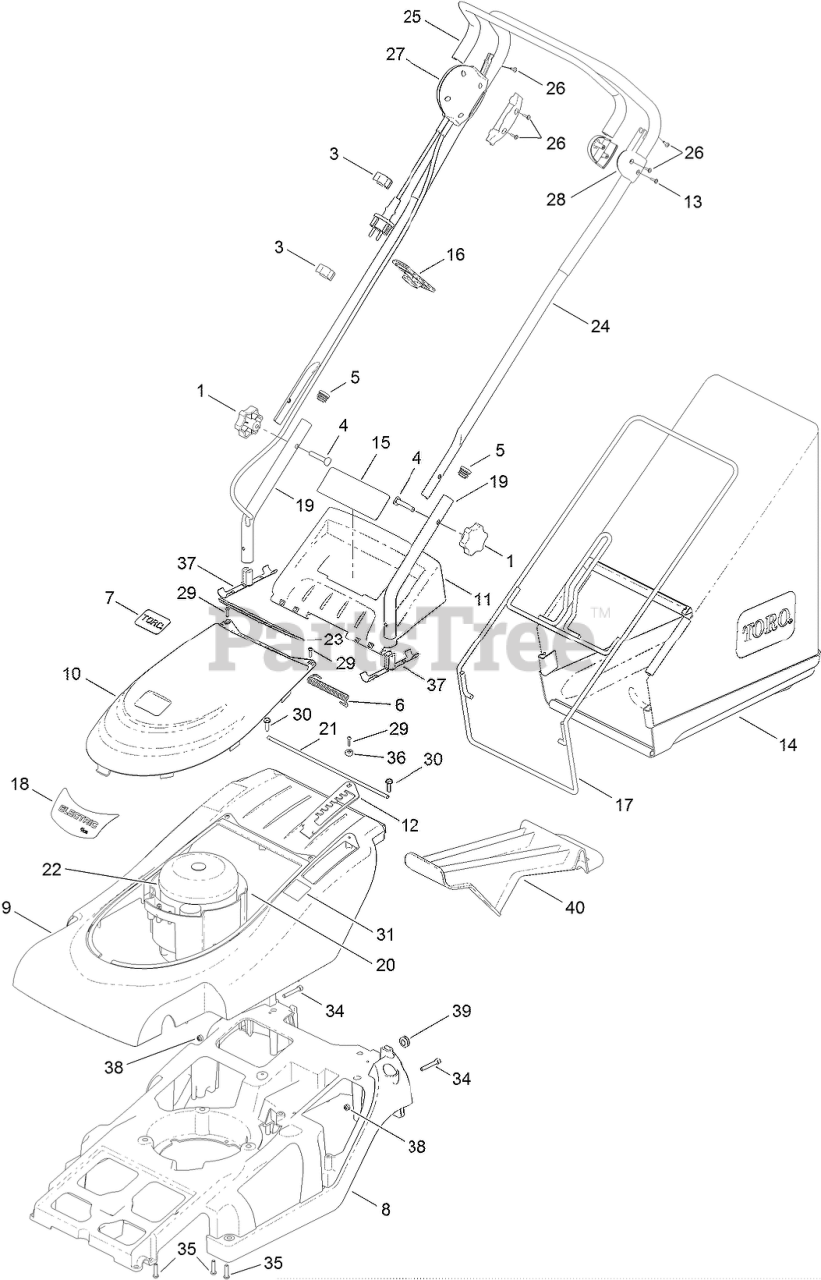

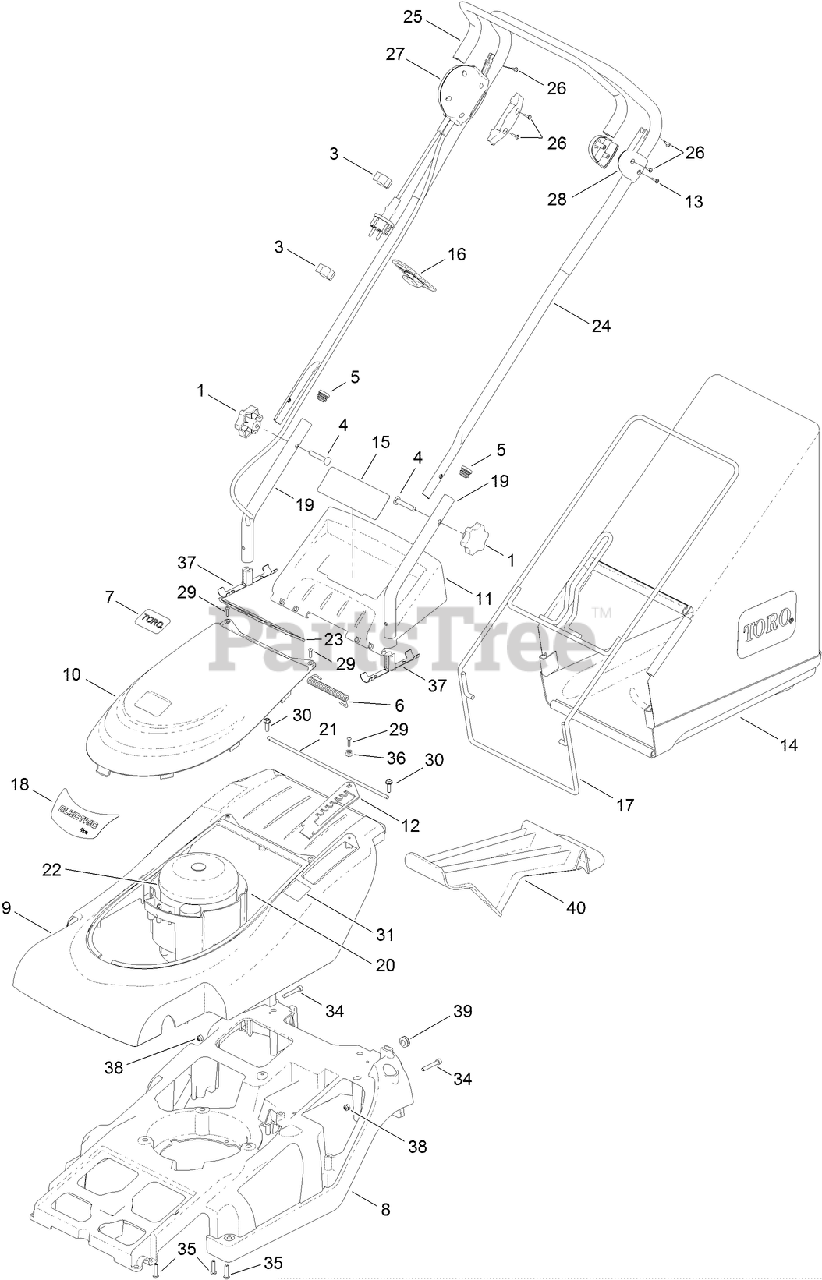

HANDLE, COVER AND GRASSBAG ASSEMBLY Parts Diagram

  • Title

1

Toro 480088

KNOB-HANDLEBAR

$

$

Not available

3

Toro 410037

GUIDE-CABLE

$

$

Currently unavailable

4

Toro HY226024

BOLT-HANDLEBAR

$

$

Not available

5

Toro 300160

PLUG-TUBE

$

$

Not available

6

Toro 410030

SPRING-DEFLECTOR

$

$

Currently unavailable

7

Toro 119-3808

PLATE-LOGO, TORO

$8.49

$

Usually ships in 3-6 days

0

8

Toro 111-0031

CHASSIS
(Superseded to 111-0031-07)

$

$

Not available

9

Toro 111-3978

TOP-COVER

$

$

Currently unavailable

10

Toro 111-3977

COVER-MOTOR

$

$

Currently unavailable

11

Toro 111-1043

MOULDING-DEFLECTOR, REAR

$

$

Not available

12

Toro 111-0040

PLATE-HOC

$

$

Currently unavailable

13

Toro HY100128

SCREW-PPH

$

$

Not available

14

Toro 111-4025

GRASSBAG

$

$

Currently unavailable

15

Toro 111-4781

DECAL-SAFETY ELECTRIC (CHINA ONLY)

$

$

Currently unavailable

16

Toro 100105

CLEAT-CABLE

$

$

Currently unavailable

17

Toro 111-0045

FRAME-GRASSBAG
(Superseded to 111-0045-03)

$

$

Not available

18

Toro 111-4073

DECAL

$

$

Currently unavailable

19

Toro 111-0051

HANDLEBARS-LOWER
(Superseded to 111-0051-03)

$

$

Not available

20

Toro 111-0052

MOULDING-MOUNT, ELECTRIC MOTOR

$

$

Currently unavailable

21

Toro 111-0056

BAR-HINGE

$

$

Currently unavailable

22

Toro 309052

MOTOR-INDUCTION, 1.5KW

$

$

Not available

23

Toro 111-0074

VENT MESH ASM

$

$

Currently unavailable

24

Toro 111-0091

HANDLEBARS-ELECTRIC

$

$

Currently unavailable

25

Toro HY100017

ARM-BAIL

$

$

Not available

26

Toro HY100078

SCREW

$

$

Not available

27

Toro 111-4070

SWITCH AND LEAD ASM

$

$

Currently unavailable

28

Toro HY100510

MOUNT BAIL ARM ASM

$

$

Currently unavailable

29

Toro 111-0094

SCREW

$

$

Not available

30

Toro 09575

SCREW-TAPTITE

$

$

Not available

31

Toro 111-4782

DECAL-HOC

$

$

Currently unavailable

34

Toro 111-0118

SCREW-SOCKET

$

$

Not available

35

Toro 111-0115

SCREW

$

$

Currently unavailable

36

Toro 111-0107

CUP-SCREW, ELECTRIC

$

$

Currently unavailable

37

Toro 111-0960

PLUG-HANDLEBAR

$

$

Currently unavailable

38

Toro 09438

NUT-NYLOC

$

$

Not available

39

Toro 111-2155

GROMMET-RUBBER

$

$

Not available

40

Toro 111-4382

PLUG-MULCHING

$

$

Currently unavailable
